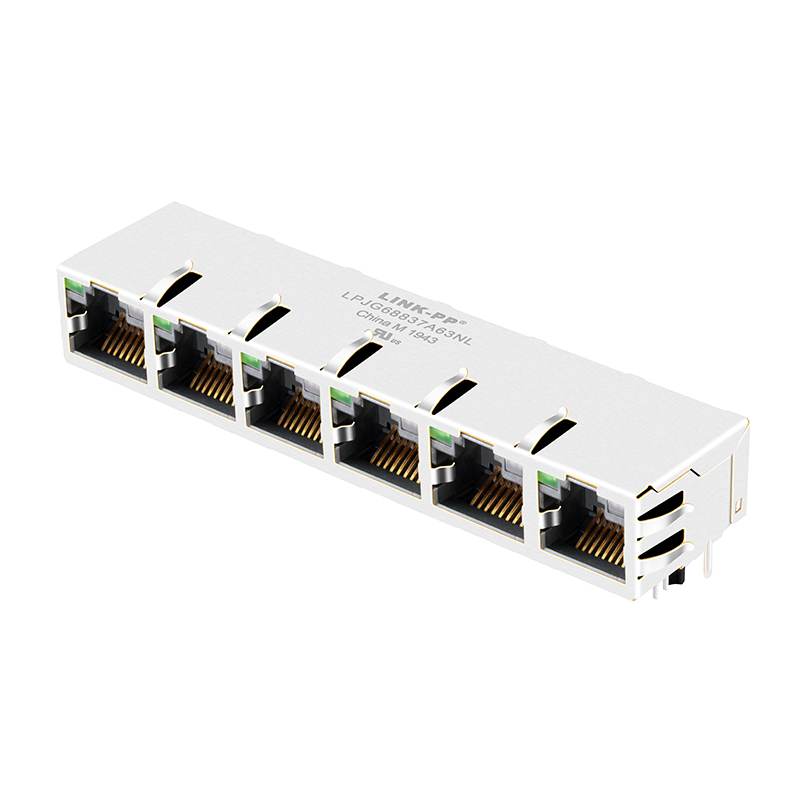

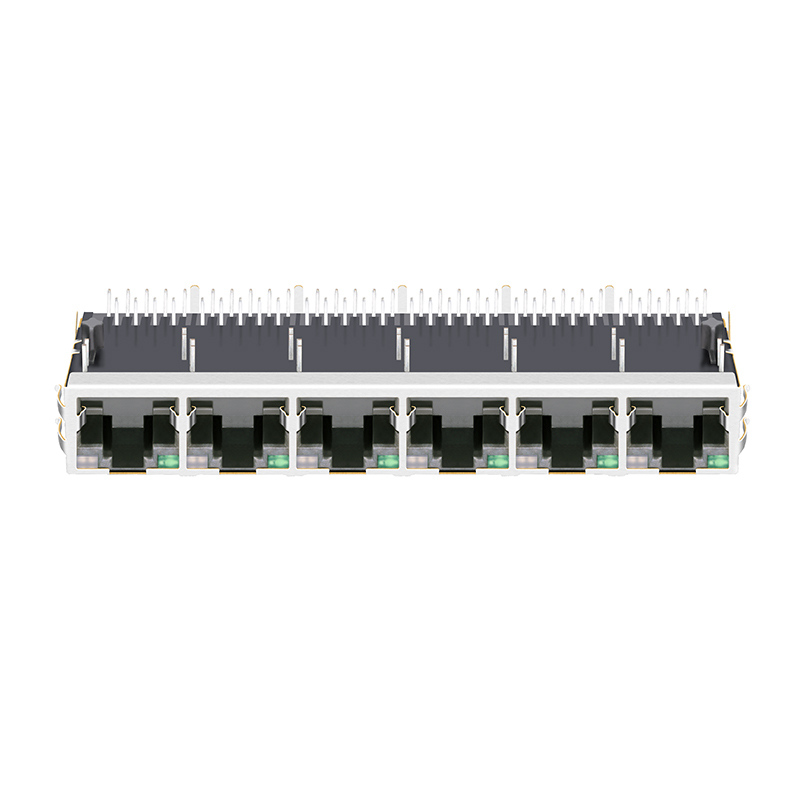

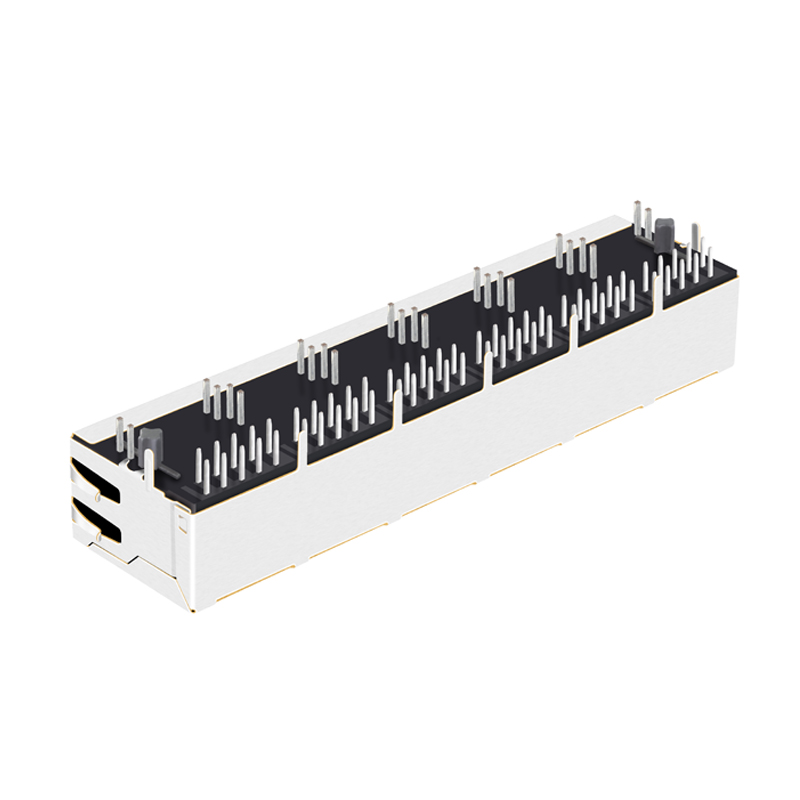

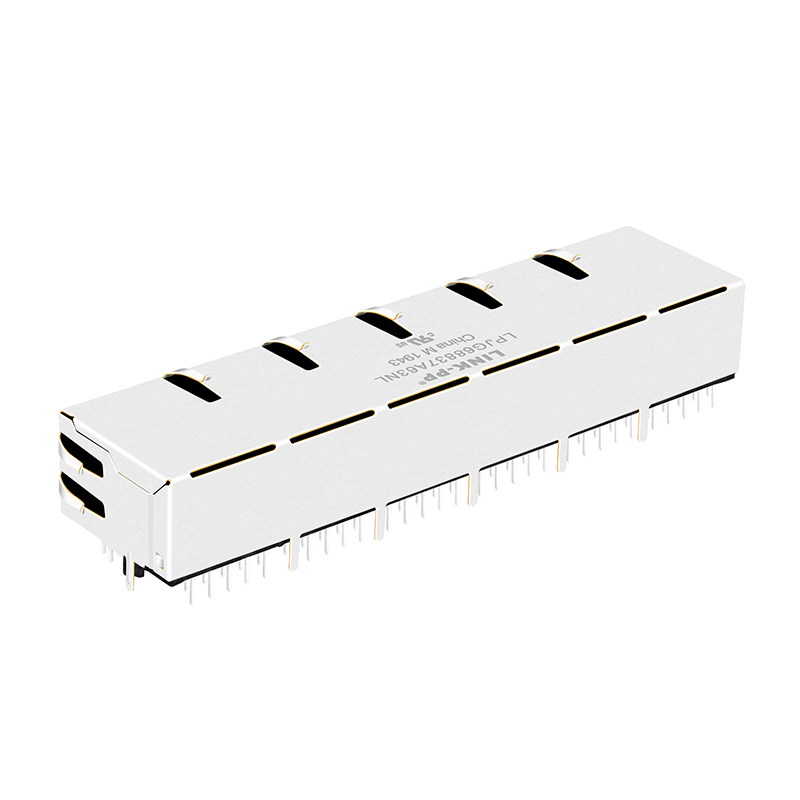

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
1 / 5
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Send Inquiry

Product Description

Product Image 1

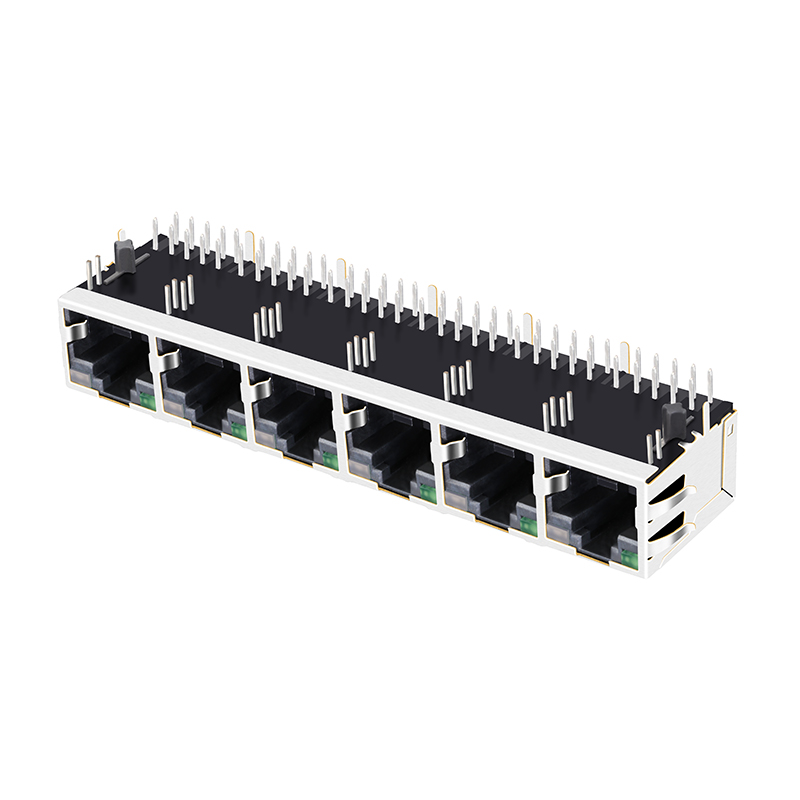

Product Image 2
Specification
Item Value
Part Number LPJG68837A63NL
Compatible Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green & Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1,T3/DS3/E3/STS-1 interface line transformer
  • ISDN,HDSL,ADSL and VDSL interface line transformer and splitter
Product View 7
Product View 8
Product View 9
FAQ
Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Is OEM service available?
Yes. We have rich experience and good ability to put your design and idea into real products. We can laser print your brand on the products.
How about the lead time?
We have a very professional team with high quality. Usually, we can ship within 30 days. For details, please contact us.
What is the operating temperature range for these RJ45 connectors?
The standard operating temperature range for these RJ45 connectors is 0°C ~ 70°C.
What speeds do these magnetic connectors support?
They support 10/100/1000 Base-T network speeds, and feature AutoMDIX functionality.
