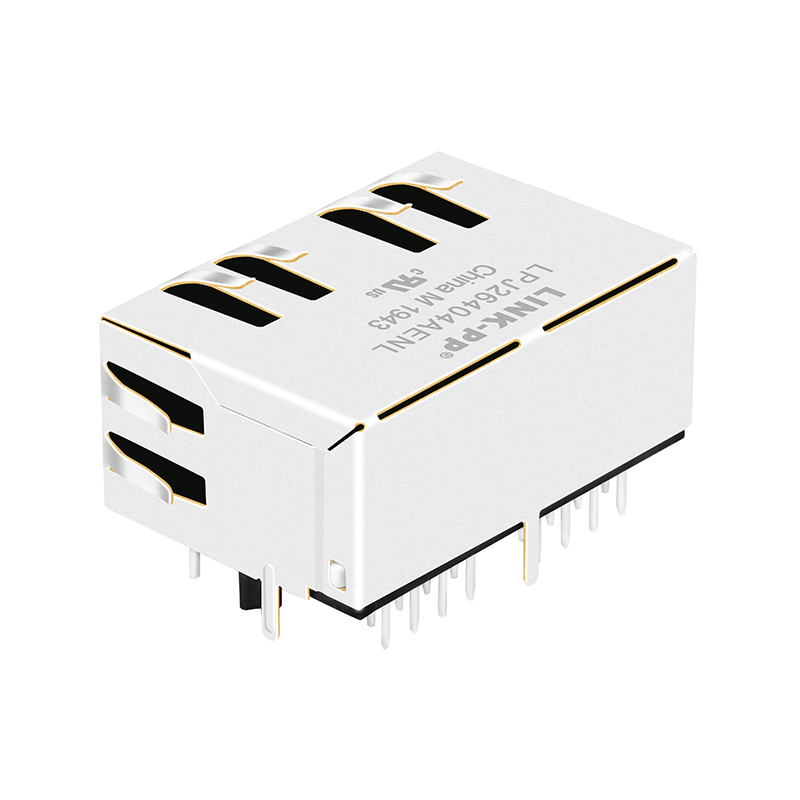

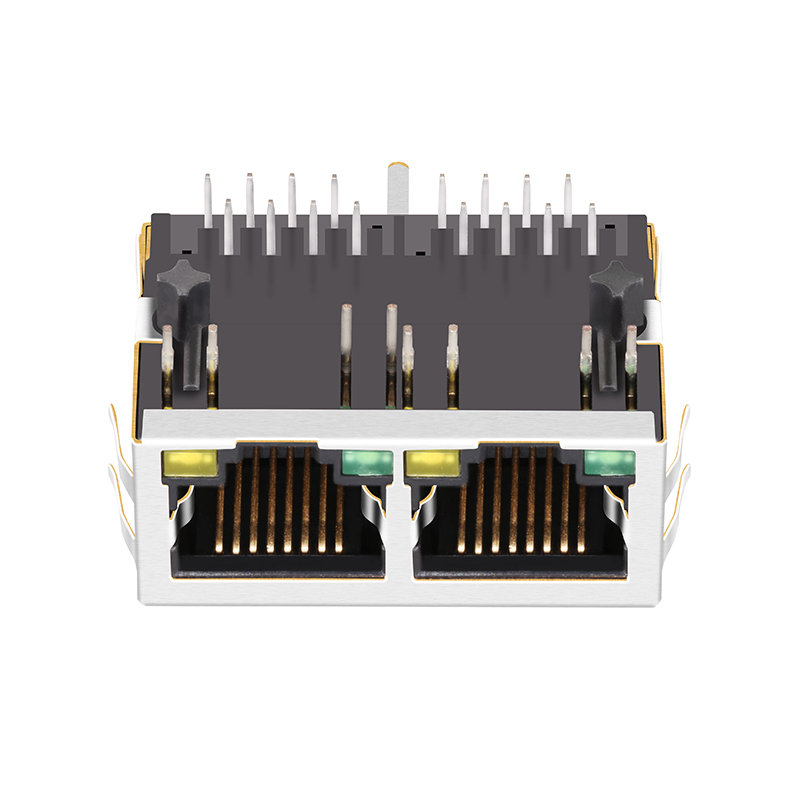

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

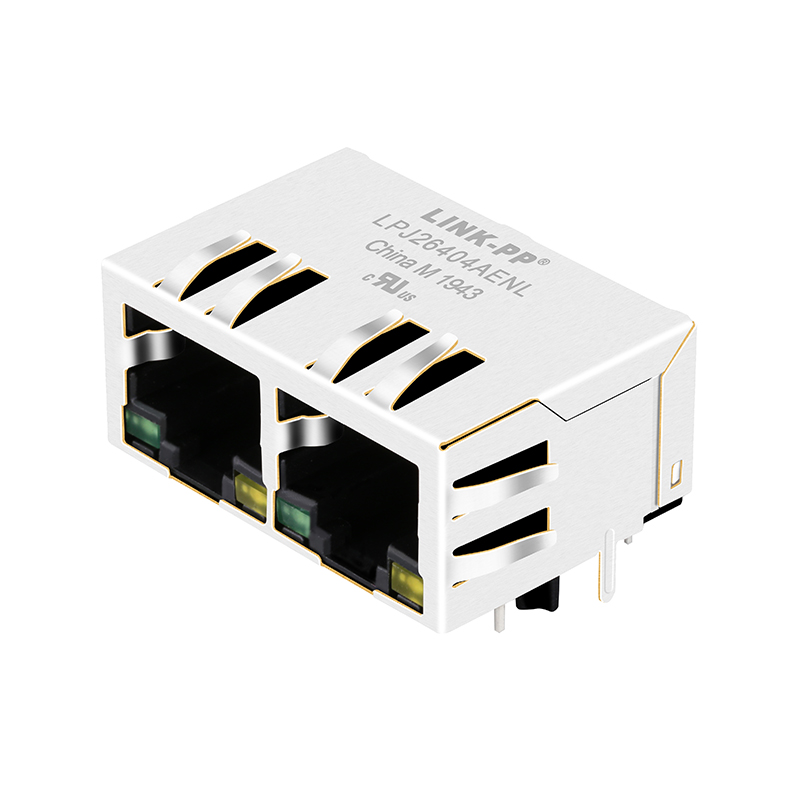

Product Image 1

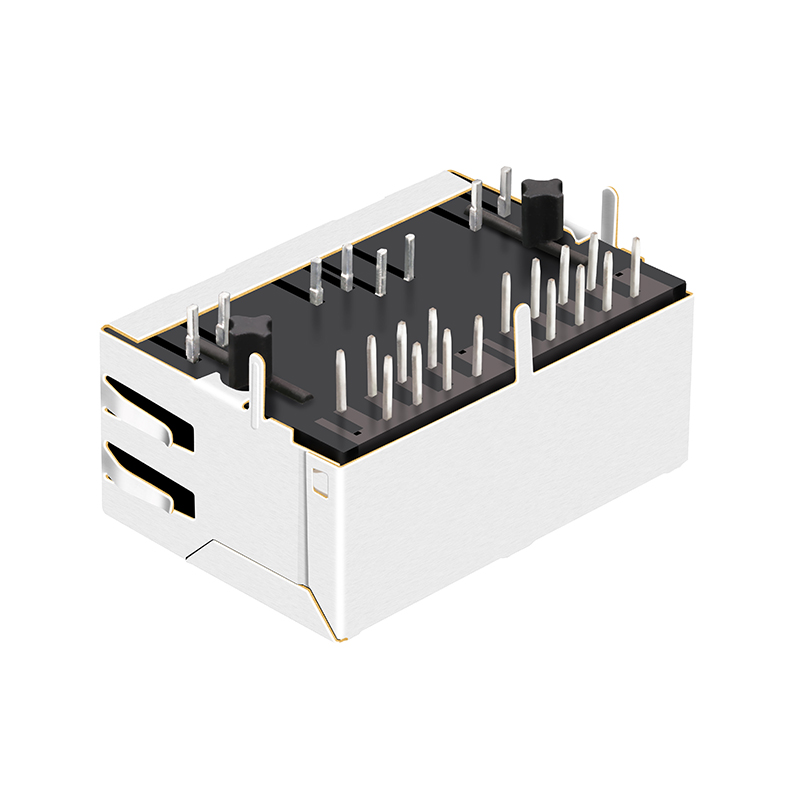

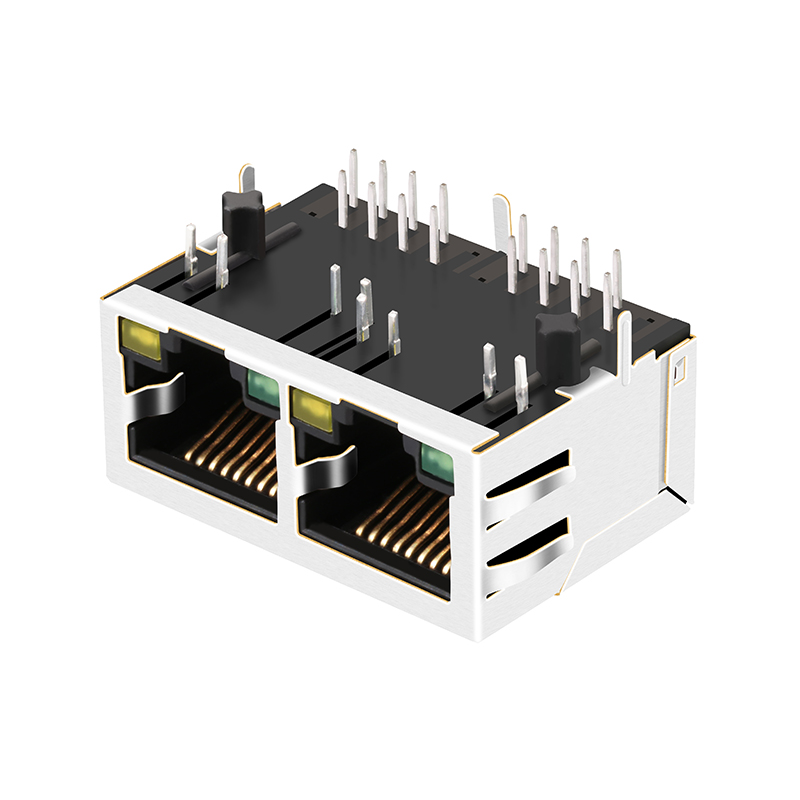

Product Image 2

Specifications

Part NumberLPJ26404AENL
Pulse Cross ReferenceJXD0-2005NL / JXR8-1001NL
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
LED ColorGreen/Yellow Led
ShieldingShielded, Emi Finger
Number of Ports1x2 Port
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C

Production Capabilities

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities include advanced manufacturing and testing equipment. With an abundant monthly productive capacity of 3000K, we ensure short delivery times and provide professional complete solutions for magnetic components with strong technical support.

Main Product Range:

  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

FAQ

Q1: Are you a manufacturer or trade company?
A: We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM service available?
A: Yes. We have rich experience and the ability to put your design into real products, including laser printing your brand.
Q4: What is the typical lead time?
A: With our professional production team, we usually ship within 30 days. Please contact us for specific details.
Q5: What is the operating temperature for this component?
A: This RJ45 connector is designed to operate reliably within a temperature range of -40°C to 85°C.
Q6: What Ethernet speeds are supported?
A: This specific model supports 10/100 Base-T speeds and includes AutoMDIX functionality.
