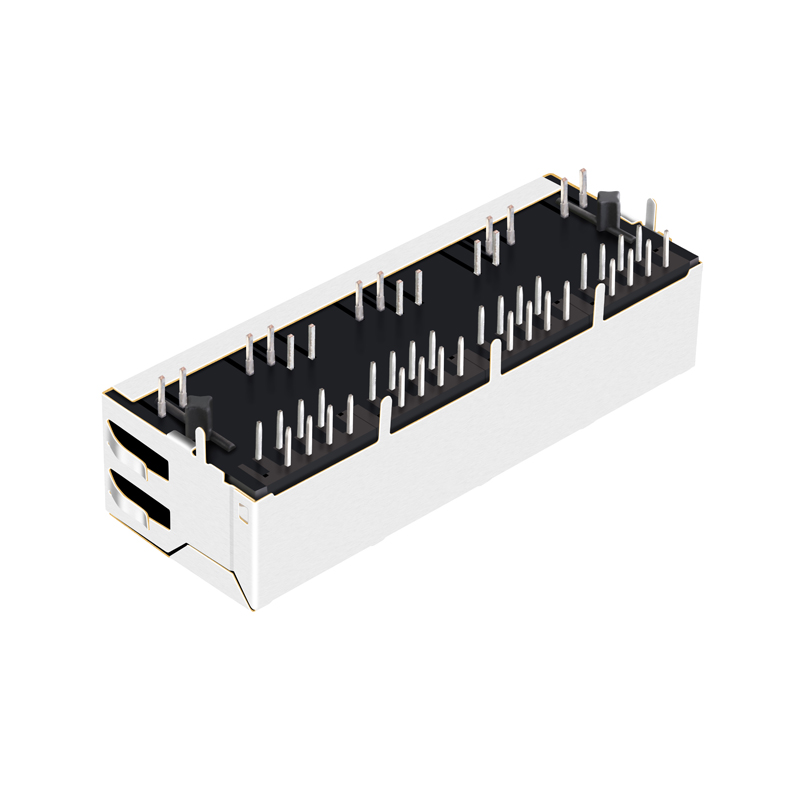

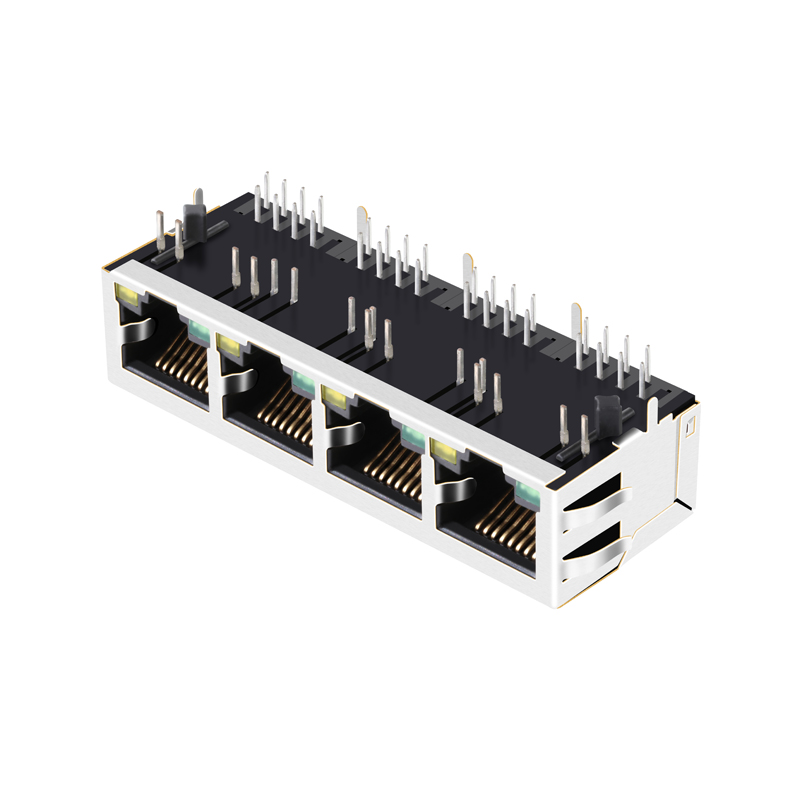

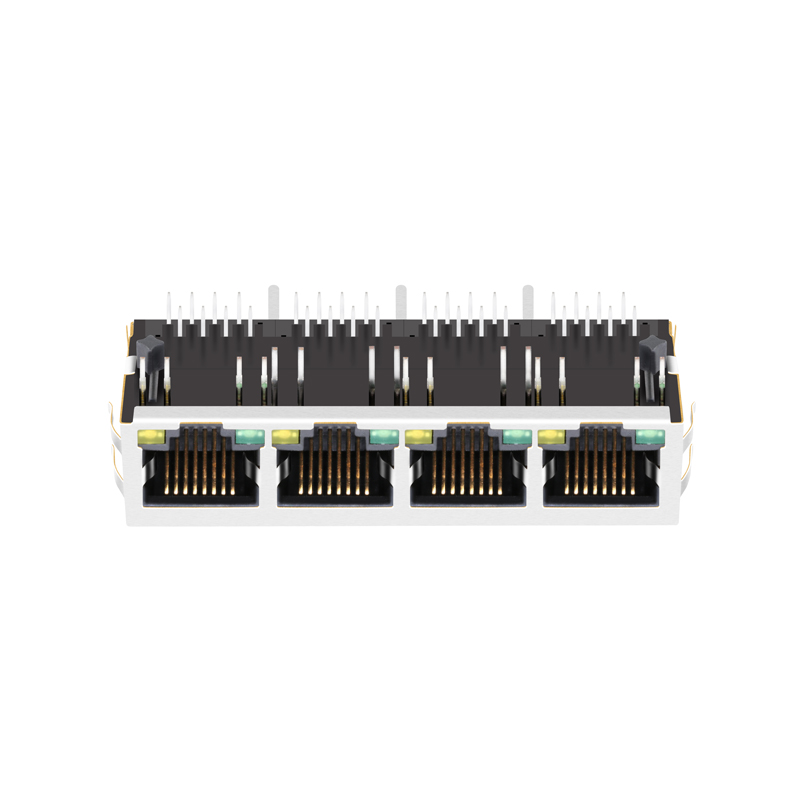

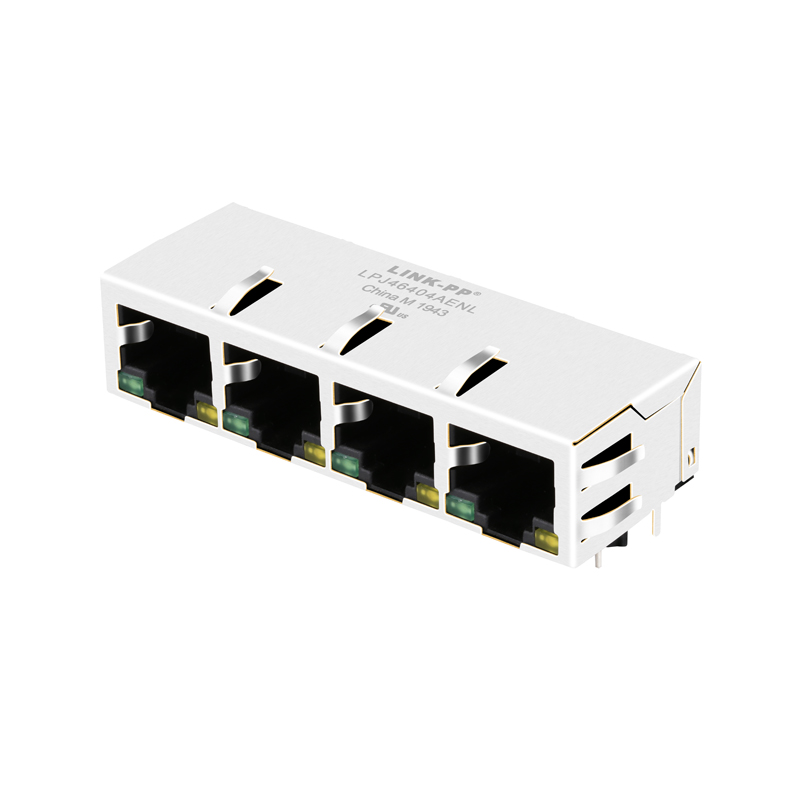

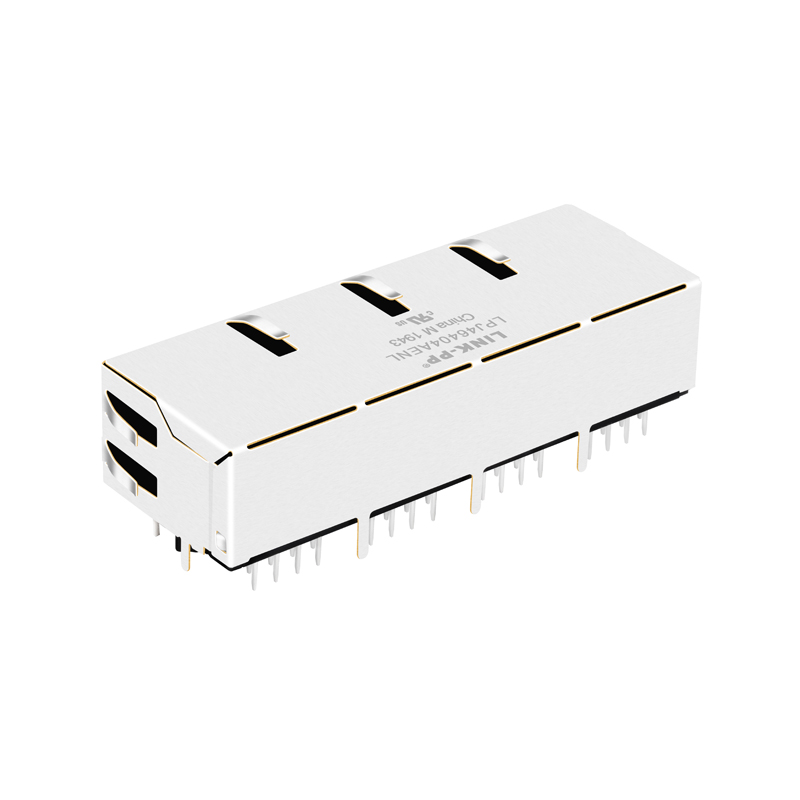

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

Product Image 1
Product Image 2
📋
Product Specification
Item Value
Part Number LPJ46404AENL
Cross Reference JXD0-4005NL / JX80-0033NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (Non-PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Details Image 1
Details Image 2
Details Image 3
Application 1
Application 2
Application 3
⚙️
Manufacturing Excellence

Specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing facilities and test equipments imported from abroad. With abundant productive capacity, we provide professional complete solutions for magnetic components and strong technical support.

Main Product Categories
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Image 1
Production Image 2
Production Image 3
❓
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a specialized manufacturer of RJ45 connectors and LAN Transformers with over 23 years of industry experience.
Can I get some samples for testing?
Yes, 3-5 pcs free samples are available for your testing requirements. Small batch orders are also acceptable.
Is OEM service available?
Yes. We have the capability to transform your designs and ideas into real products, including laser printing your brand on the components.
What is the standard lead time?
Our professional team typically handles shipping within 30 days. For specific project timelines, please consult with our team.
What certifications do your products hold?
Our manufacturing processes and products are certificated by ISO9001:2000, ROSH, REACH, CE, and UL to ensure global quality compliance.
What are the typical applications for these networking components?
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
