10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
1 / 5
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

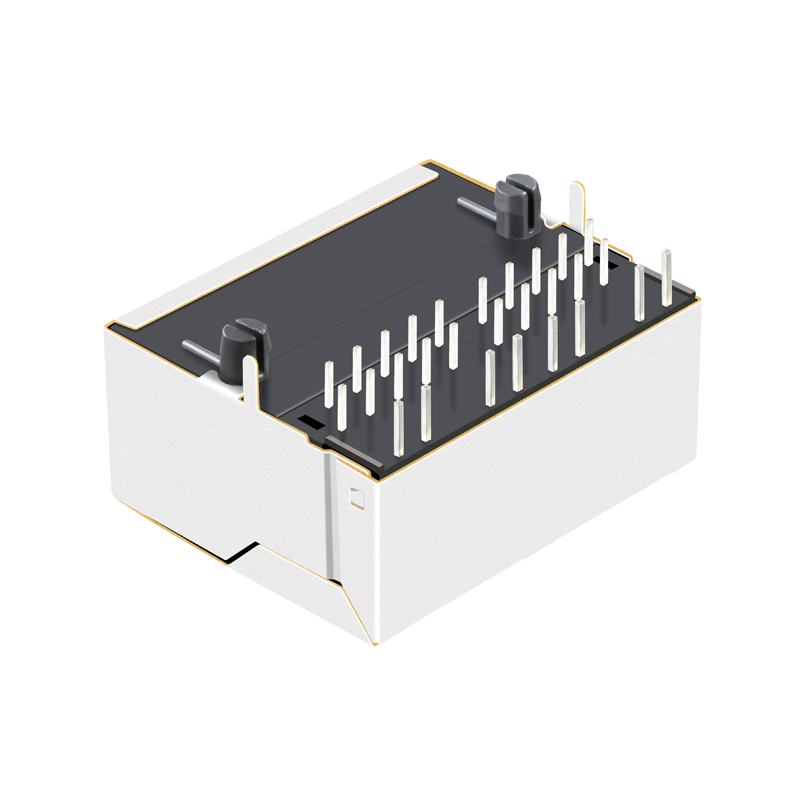

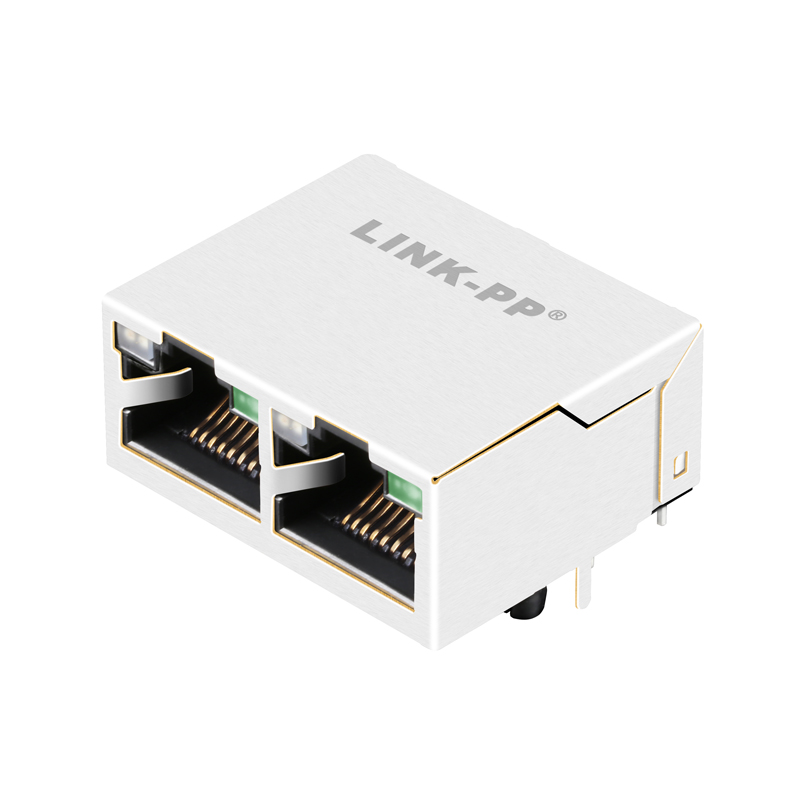

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack

Ethernet Interface Banner
RJ45 1X2 Connector Main View
Specification Banner
Part Number5-6610197-1
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/YELLOW
LatchUP
Number of Ports1X2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed10/100 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1

Why Choose Our Solutions

A global leader in integrated RJ45 connectors and discrete magnetic transformers, providing reliable networking components for diverse industrial applications.

Professional Certification
  • ISO 9001:2008 Registered
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guaranteed Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Proven OEM Manufacturing Capability
  • Quality Guarantee: 6 Years
Competitive Service
  • Superior Pricing Compared to Global Brands
  • Fast Delivery: 2-3 Weeks After Orders
  • Free Samples Available
  • New Design Support for Custom Requirements
Technical Drawing 1
Technical Drawing 2
Dimension Detail Circuit Schematic
Footer Banner
Application Overview
Factory View

Frequently Asked Questions

1. What is the maximum data speed supported by this RJ45 connector? The 5-6610197-1 supports 10/100 BASE-T Ethernet speeds, making it ideal for standard networking requirements.
2. What is the port configuration for this model? It features a 1X2 Harmonica Jack configuration, providing two ports in a single, space-saving horizontal layout.
3. Does this connector support industrial temperature ranges? Yes, it is designed to operate in temperatures ranging from 0 to 70°C, with options available for extended ranges from -40 to 85°C.
4. Is the product RoHS compliant? Yes, the connector is RoHS compliant (RoHS-5), ensuring it meets environmental safety standards.
5. What are the LED color options for the ports? This specific model comes with Green and Yellow LED indicators to display network status and activity.
6. What type of mounting is required for this connector? It uses THT (Through-Hole Technology) soldering with a side entry PCB mount angle and T-post retaining posts for secure installation.
