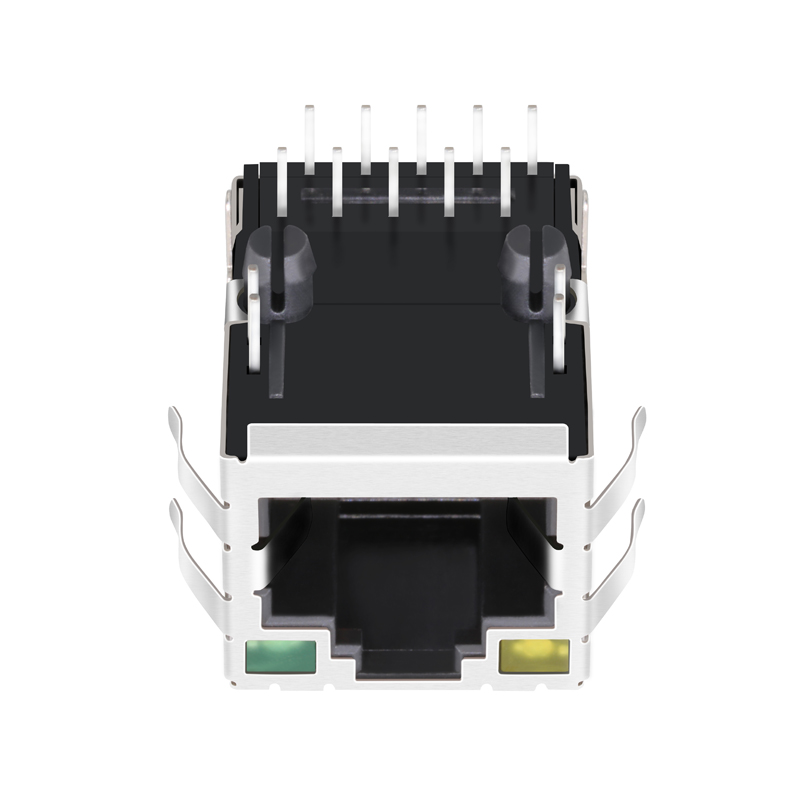

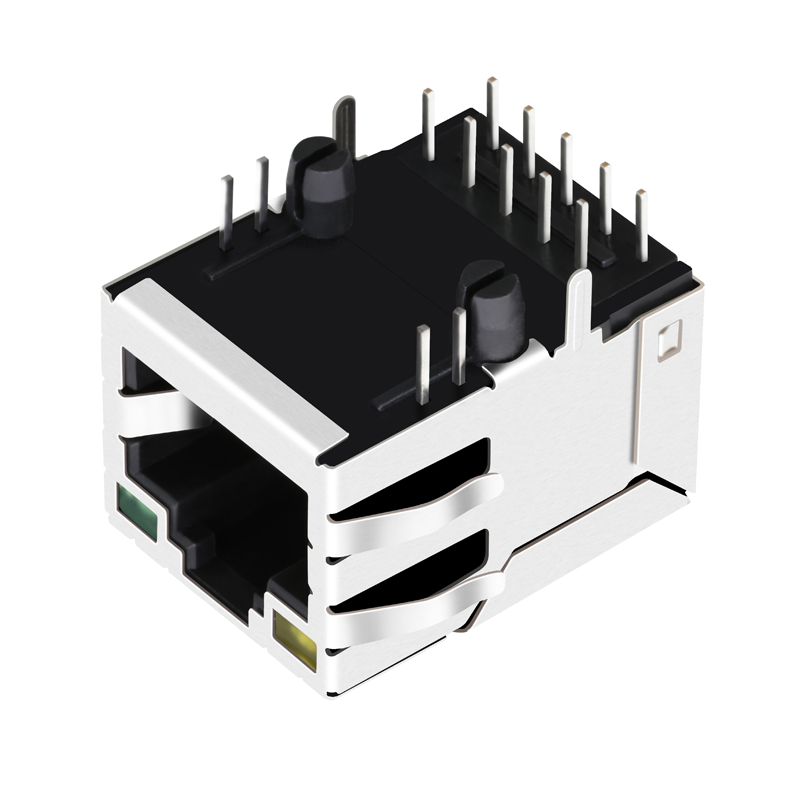

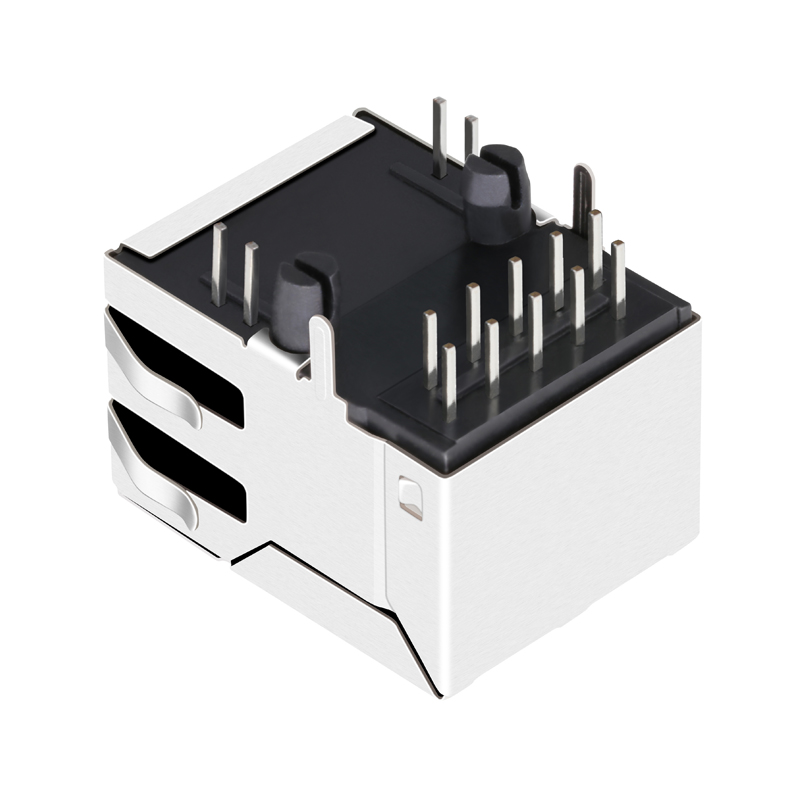

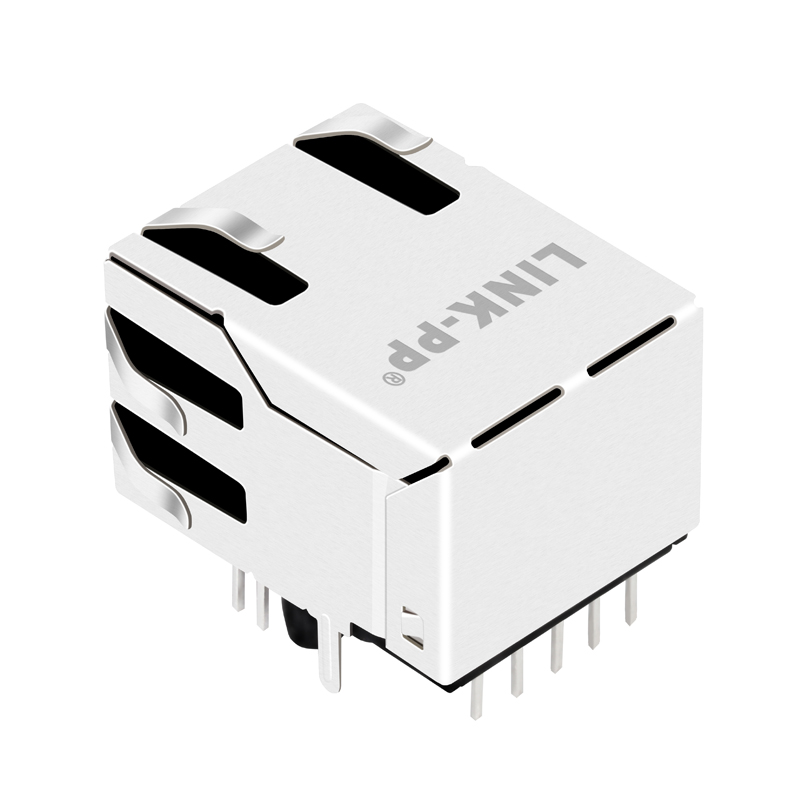

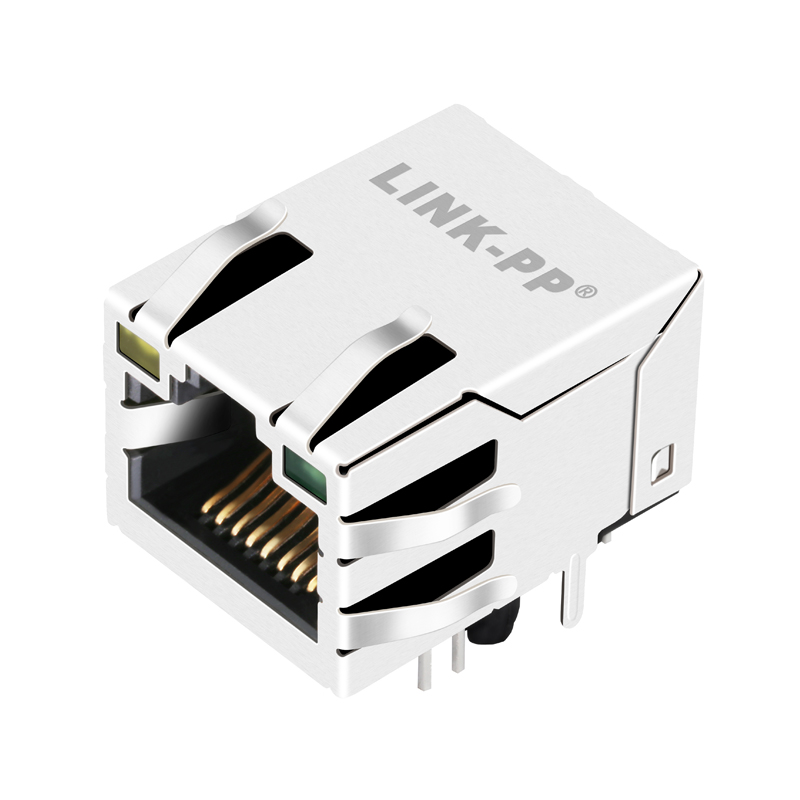

| Item | RJ45 Female Connector |
| Bothhand Part Number | 2250273-1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading Ethernet RJ45 connector and LAN transformer provider.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but shipping fees are responsibility of the buyer.
Ready to ship for stock items and 15-30 days for mass production orders.
One year guarantee period along with dedicated 24-hour online technical support.
Yes, please send your details and inquiry to us so we can proceed with a detailed discussion.
19 years of manufacturing and production experience, and we are a trusted partner for major global brands for many years.
