Product Description

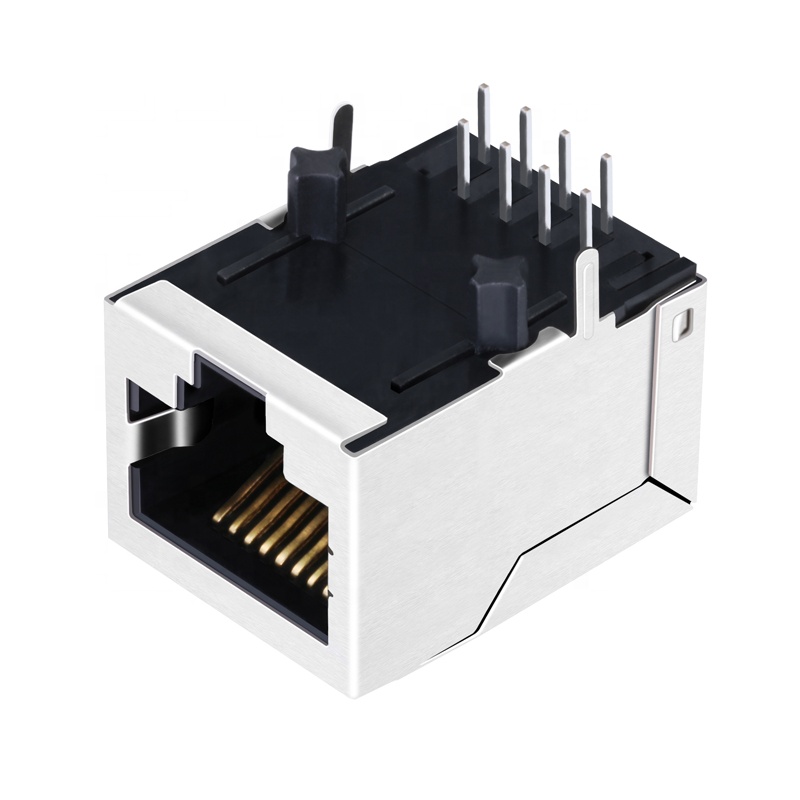

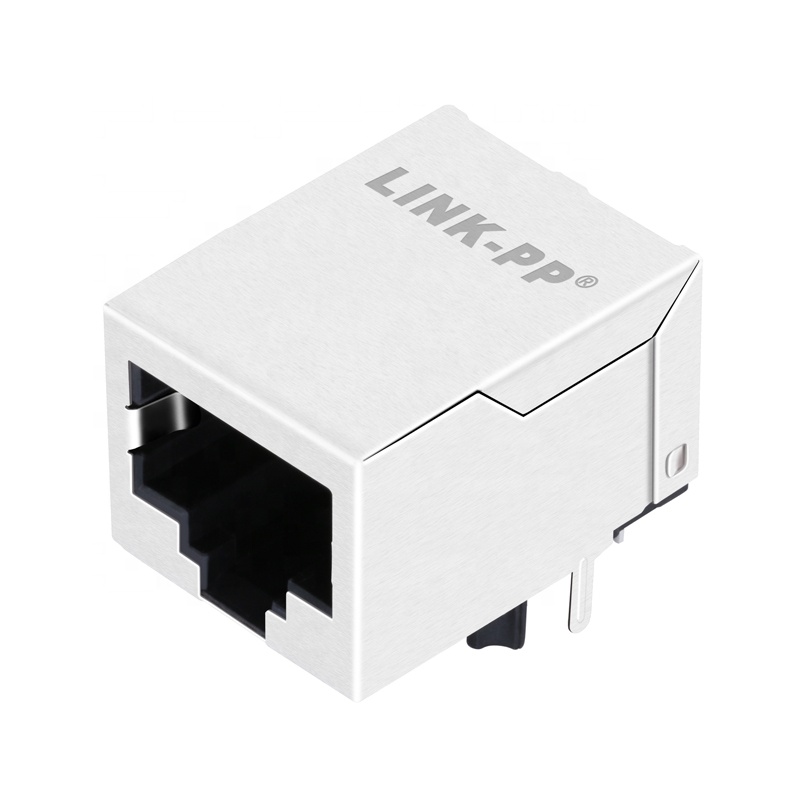

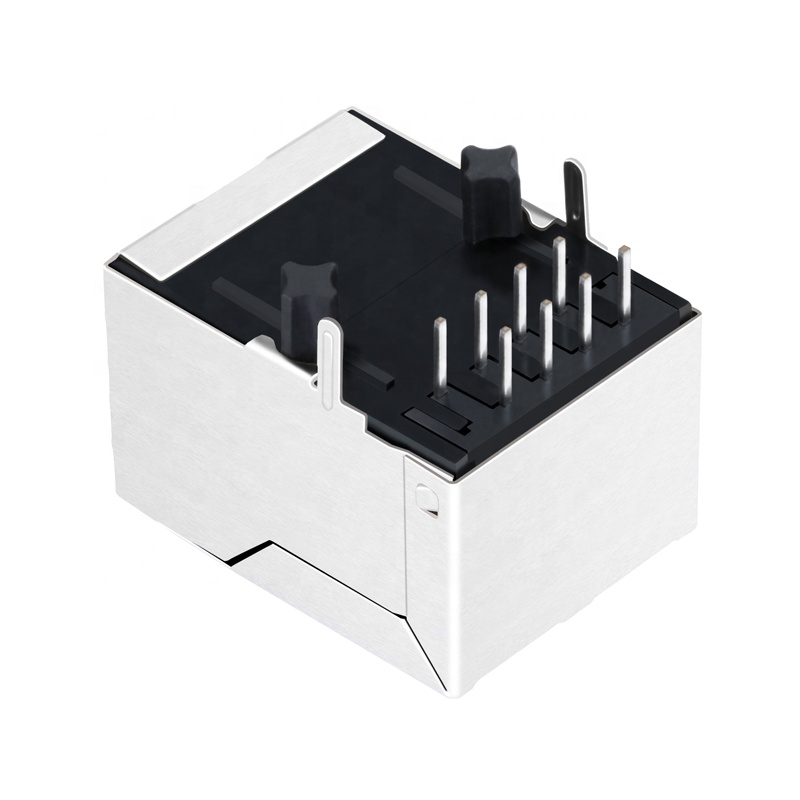

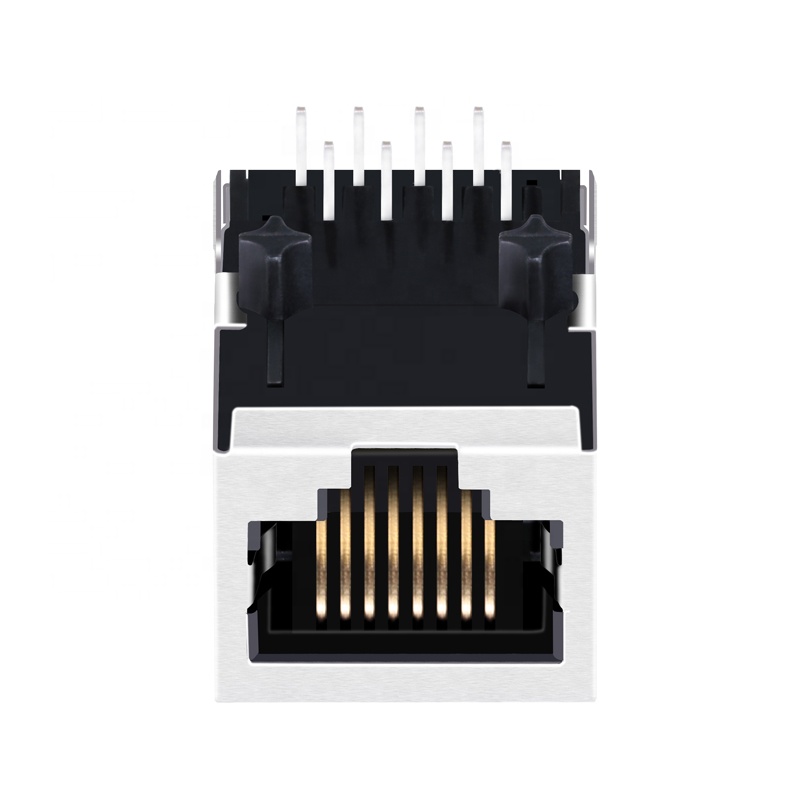

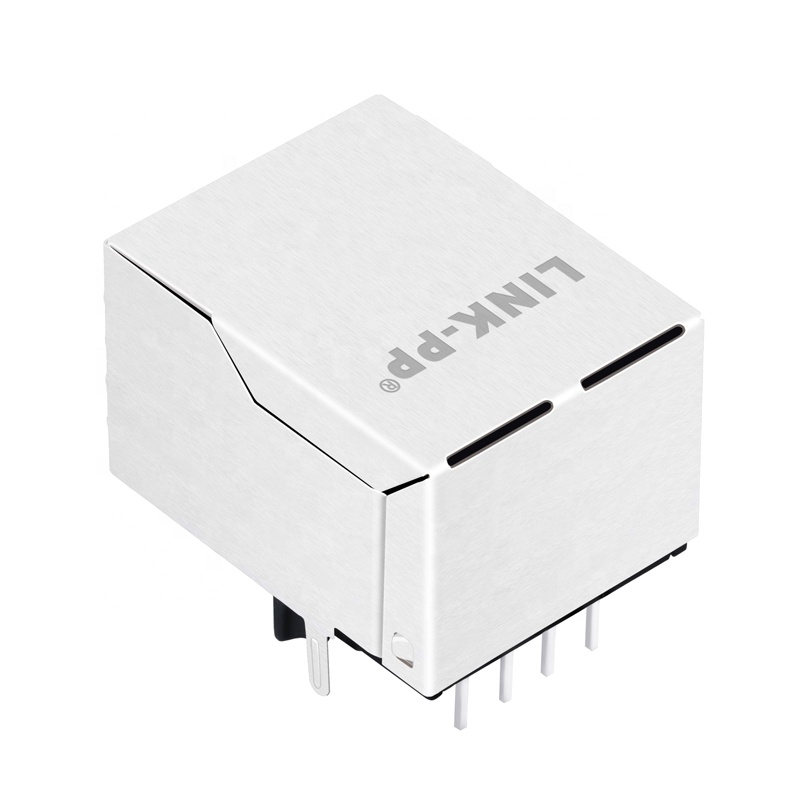

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1470648-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail View 1 RJ45 Connector Detail View 2
Ethernet RJ45 Connector Product 1 Ethernet RJ45 Connector Product 2 Ethernet RJ45 Connector Product 3 Ethernet RJ45 Connector Product 4
