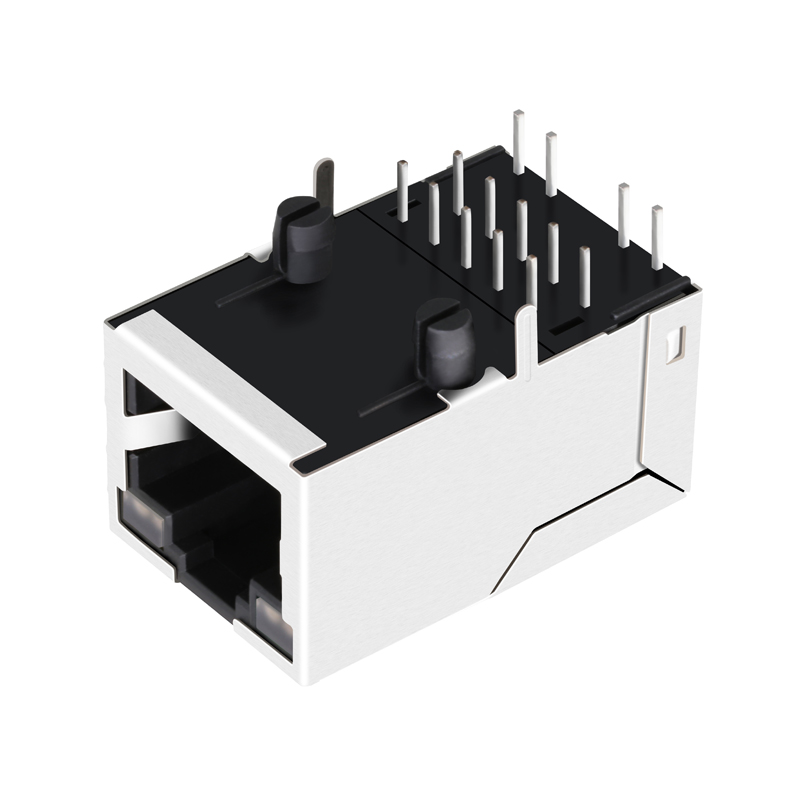

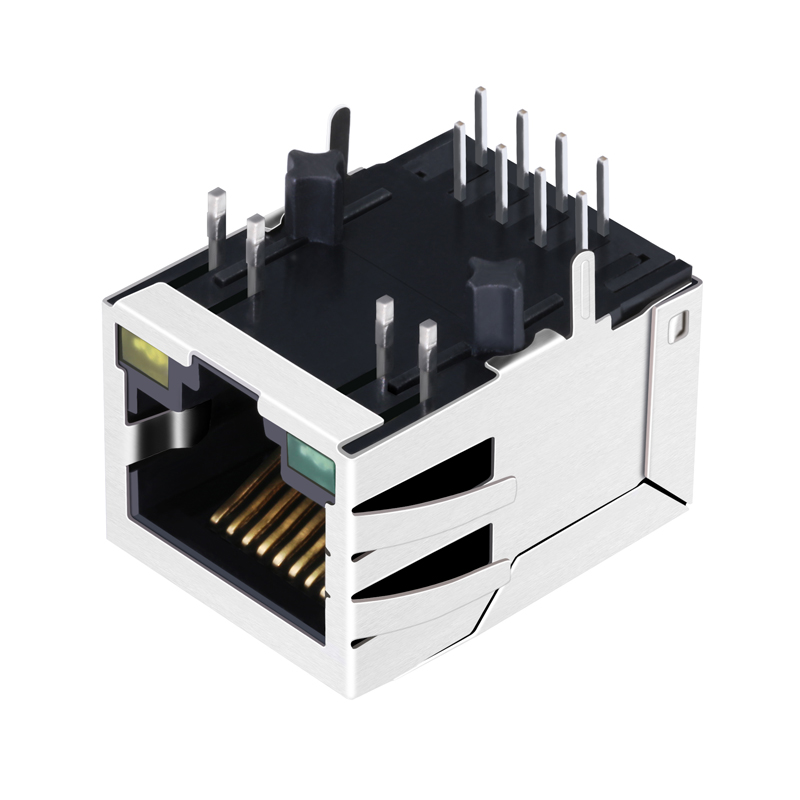

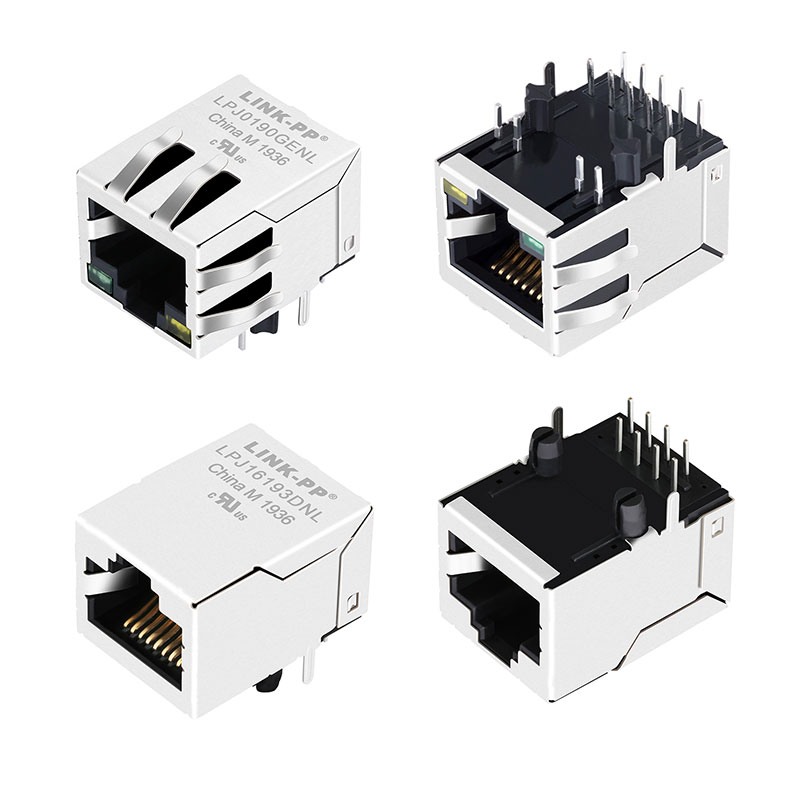

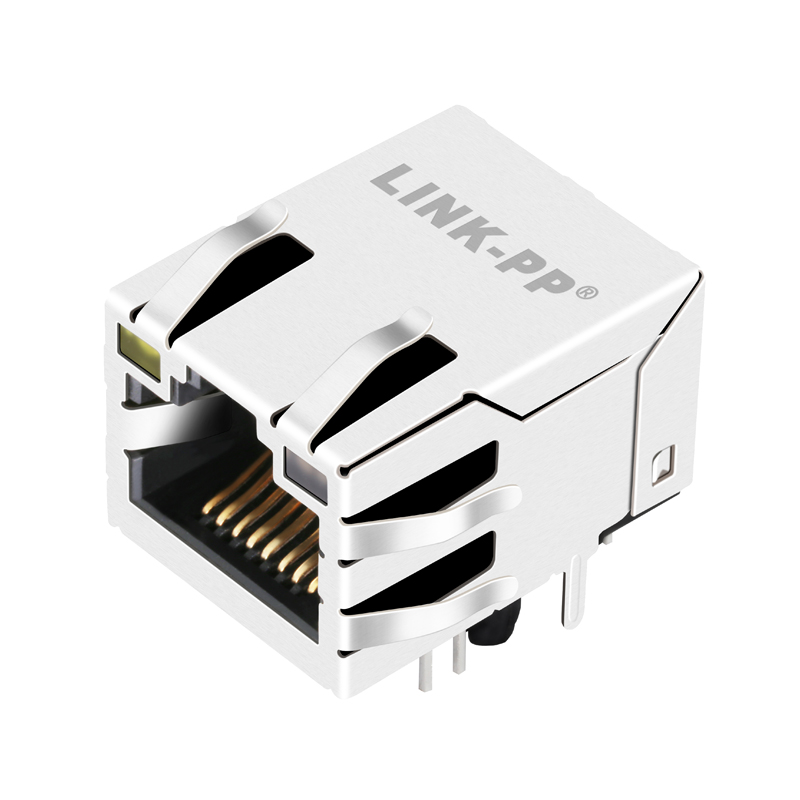

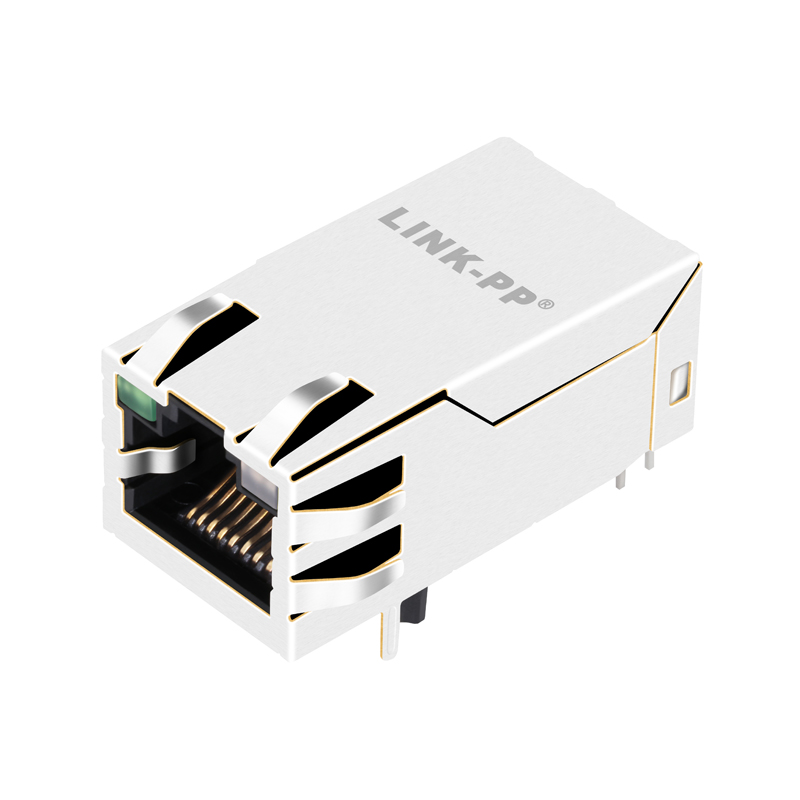

Single Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a Modular Network Conector PCB Jack 8P LAN RJ45 Connector
Single Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a Modular Network Connector PCB Jack 8P LAN RJ45 Connector
Products Description
Item
RJ45 Female Connector
Part Status
Active
Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet (Non-PoE)
Number of Ports
1x1 Port
Speed
10/100/1000 Base-T
Latch
Down/Up
Cores per Port
4
Orientation
90° Angle (Right)
PCB Mount Angle
Side Entry
Shield EMI Tabs
Without/With
LED Option
Green/Yellow
PCB
FR4
PCB Retaining Post
T Post
Temperature
0°C to 70°C / -40°C to 85°C
Bst Circuit
Yes
AutomDX
Yes
Contact Mating Area Plating
Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T, C
Discover More High-Performance Networking Solutions Below
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
FAQ
Q1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered on your end.
Q3 What is your delivery time?
We have standard specifications ready to ship from stock, while mass production typically takes 15 to 30 days.
Q4 What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5 Can you accept OEM/ODM orders?
Yes, we welcome custom requests. Please send your inquiries to us so we can discuss the details.
Q6 What is your advantage?
With 19 years of dedicated manufacturing experience, we have been a trusted partner for global Tier-1 technology companies for many years.
