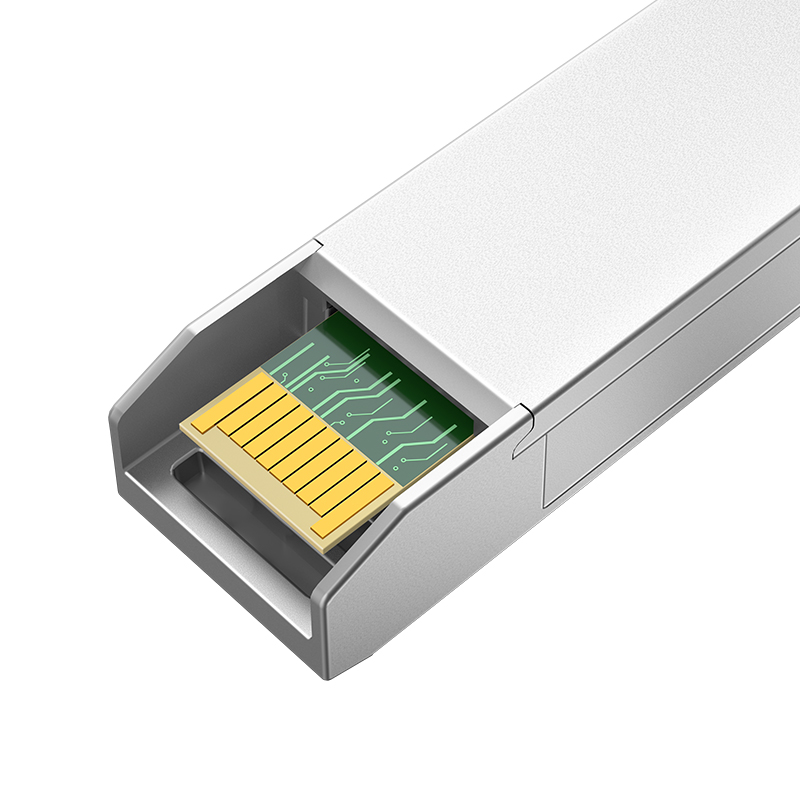

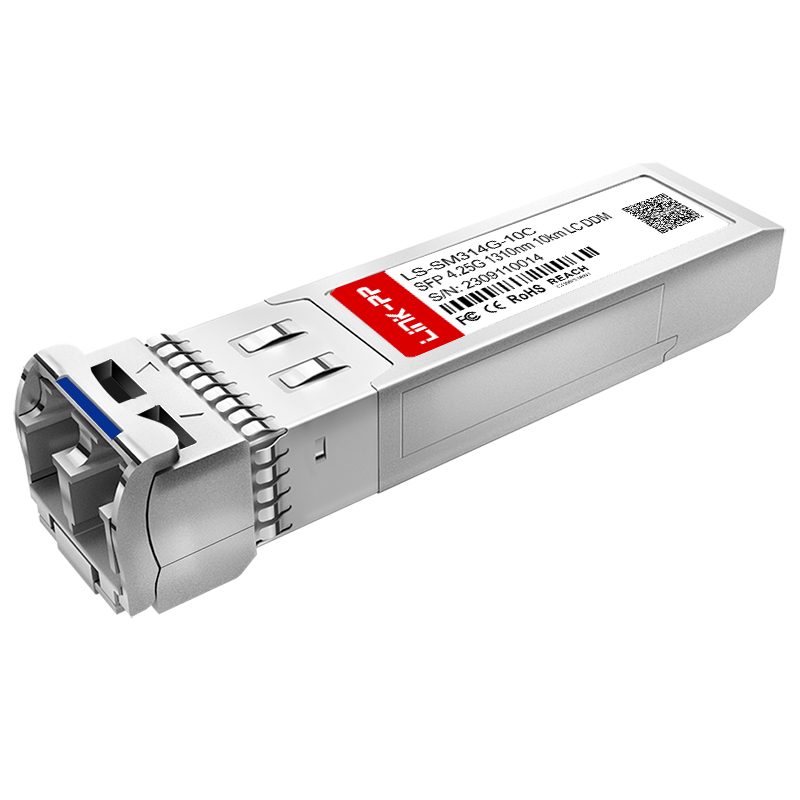

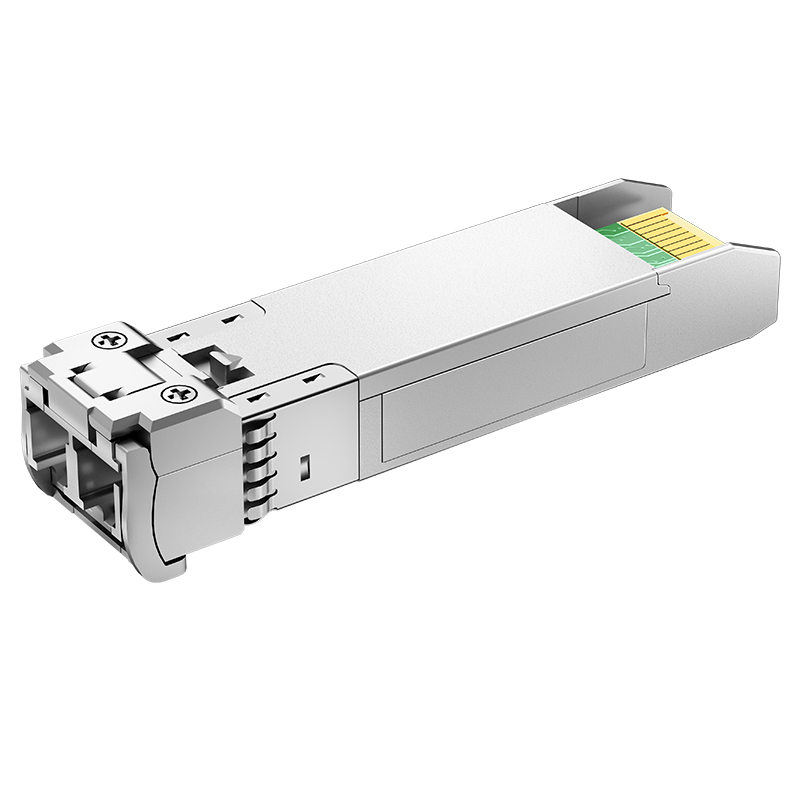

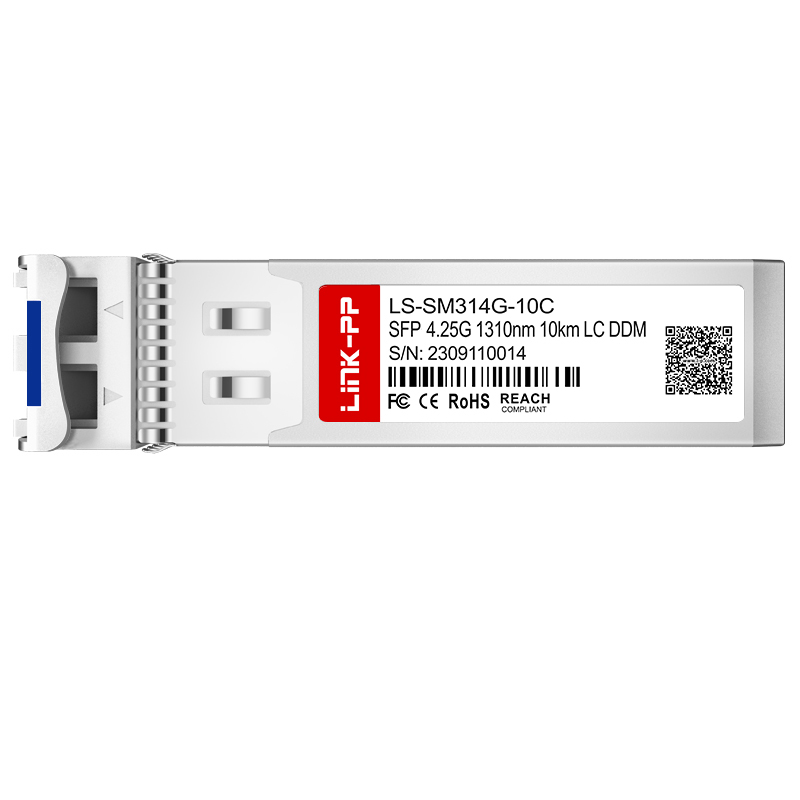

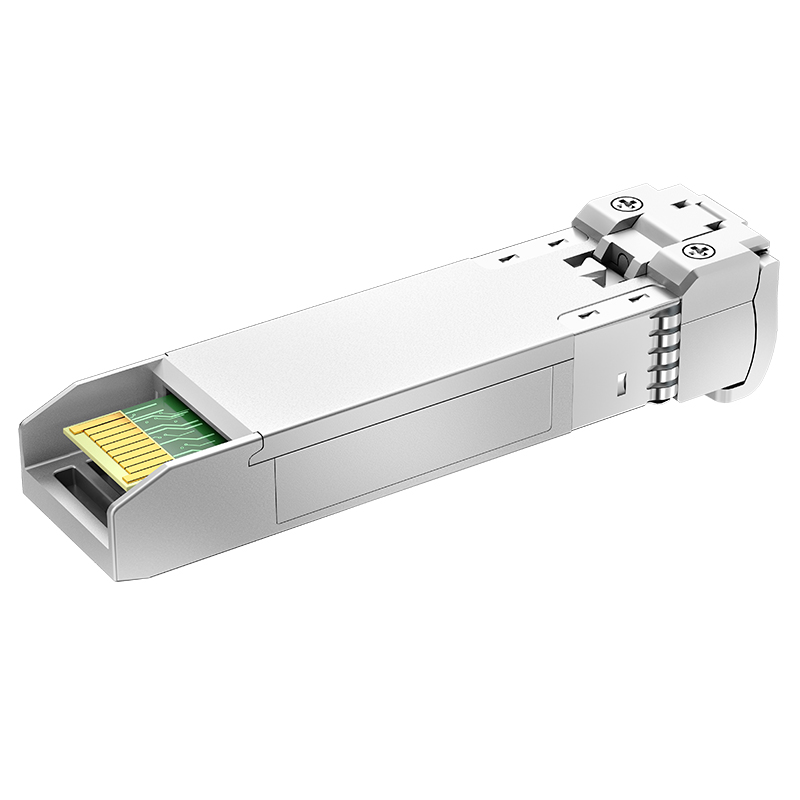

Single Mode SFP 4G Fibre Channel 1310nm 10km Duplex LC Optical Transceiver Module

Product Description

Single Mode SFP 4G Fibre Channel 1310nm 10km Duplex LC Optical Transceiver Module
Product Specifications
Part No. LS-SM314G-10C
Form Factor SFP
Max Data Rate 4.25Gbps
Wavelength 1310nm
Max Cable Distance 10km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
TX Power -8 ~ -1dBm
Receiver Sensitivity < -18dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Transceiver Module Solution
Support Full Range Of 4.25G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM854G-S1C 4.25Gbps 850nm 150m Multi-mode Yes
LS-MM852G-S3C 4.25Gbps 850nm 300m Multi-mode Yes
LS-MM854G-S5C 4.25Gbps 850nm 500m Multi-mode Yes
LS-SM314G-02C 4.25Gbps 1310nm 2km Single Mode Yes
LS-SM314G-04C 4.25Gbps 1310nm 4km Single Mode Yes
LS-SM314G-10C 4.25Gbps 1310nm 10km Single Mode Yes
LS-SM314G-40C 4.25Gbps 1310nm 40km Single Mode Yes
LS-SM554G-40C 4.25Gbps 1550nm 40km Single Mode Yes
Fibre Channel SFP Table Optical Transceivers Category
Optical Transport Networks
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand for mass data transmission in data centers, a series of high-speed optical modules has been developed, with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, which meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
⚙ Related Products SFP Cage ⚙
Related Products SFP Cage
Why Choose Us
Feature 1 Feature 2 Feature 3 Feature 4
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, and we have about 2000 employees at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
Company Facility 1 Company Facility 2
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, with shipping costs covered by the buyer.
3. What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders generally take 15-30 days.
4. What after-service can you offer?
We offer a warranty period along with online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can discuss the details.
6. What is your advantage?
We possess 19 years of manufacturing experience, ensuring top quality, reliable supply, and certified products for global networks.
