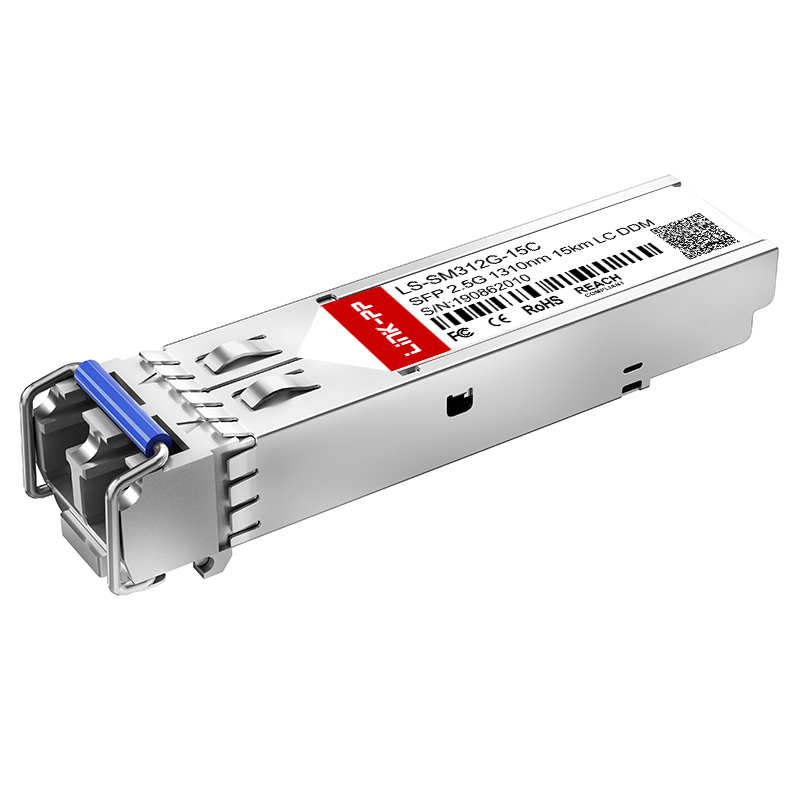

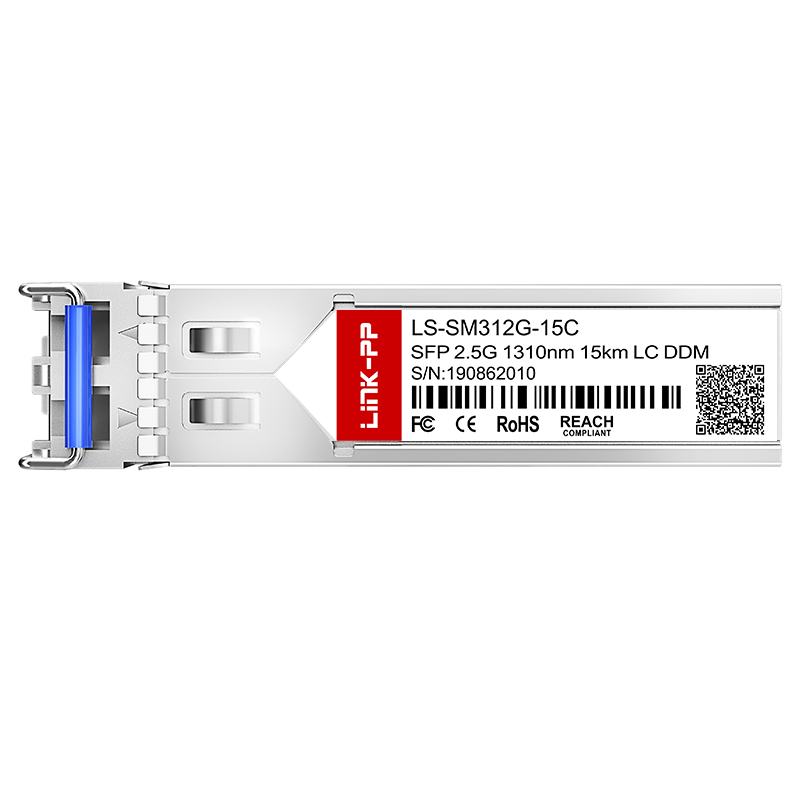

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
📝
Products Description
| Item |
2.5G SFP |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
2.5Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
15km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
DFB/PIN |
| TX Power |
-5~0dBm |
| Receiver Sensitivity |
<-18dBm |
| Receiver Overload |
0dBm |
| Power Consumption |
1W |
| Extinction Ratio |
>8.2dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 Compliant |
| Warranty |
5 Years |
| Sample |
Available |
⚙️
Related Products SFP Cage
⭐
Why Choose Us
🏢
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, RoHS, REACH, CE, and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support.
Main Products:
- 10/100/1000M LAN pulse transformer and filter
- RJ45 connector with 10/100/1000M magnetic
- T1/E1, T3/DS3/E3/STS-1 interface line transformer
- ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
❓
FAQ
1
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
3
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4
What after-service can you offer?
We offer a one-year warranty period and 24-hour online technical support.
5
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6
What is your advantage?
We have 19 years of production experience with advanced manufacturing and quality control standards.
