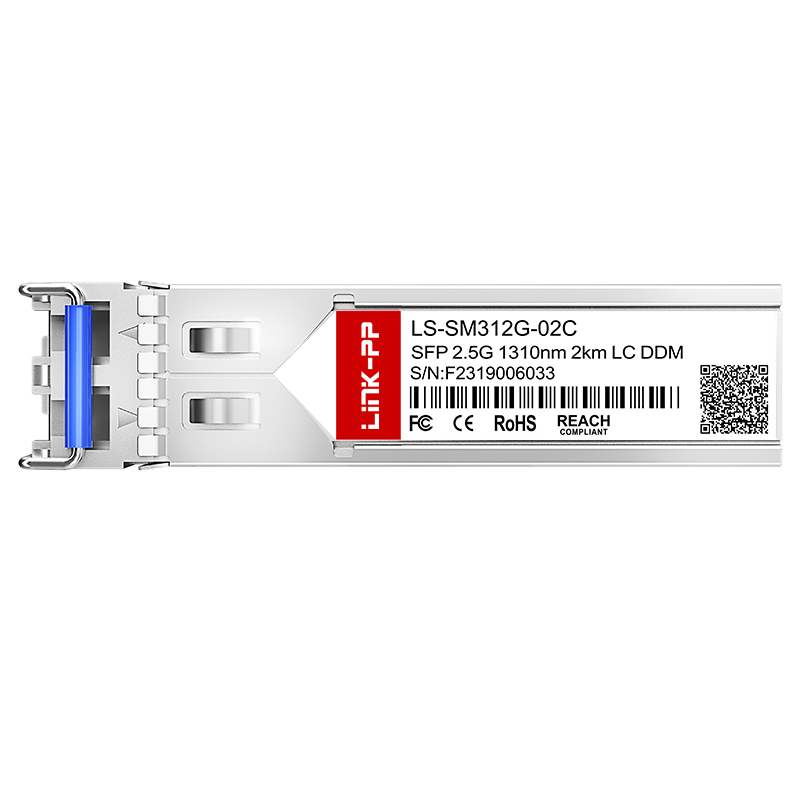

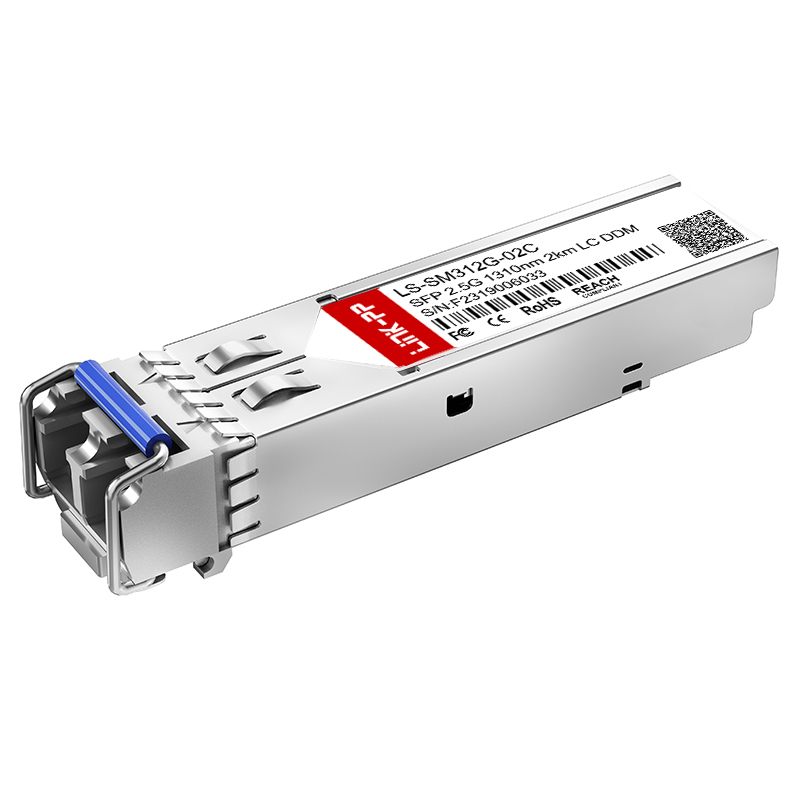

2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km

Product Description

Product Showcase
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 2km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -10~-3dBm
Receiver Sensitivity <-18dBm
Receiver Overload -3dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range -10 to 70°C (-37 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty 5 Years
Sample Available
Product Diagram
Product Specification Drawing
Product Angle 1 Product Angle 2 Product Angle 3 Product Angle 4 Product Angle 5
Related Accessories Overview
☞ Related Products SFP Cage ☞
SFP Cage Option 1 SFP Cage Option 2
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4 Advantage 5
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, covering major markets in Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our dedicated engineering staff is focused on identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements.
Manufacturing Facility 1 Manufacturing Facility 2
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3 What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production.
4 What after-service can you offer?
We provide a one-year warranty period and offer technical support online 24 hours.
5 Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
6 What is your advantage?
We have 19 years of production experience and long-term partnerships with leading global enterprises.
