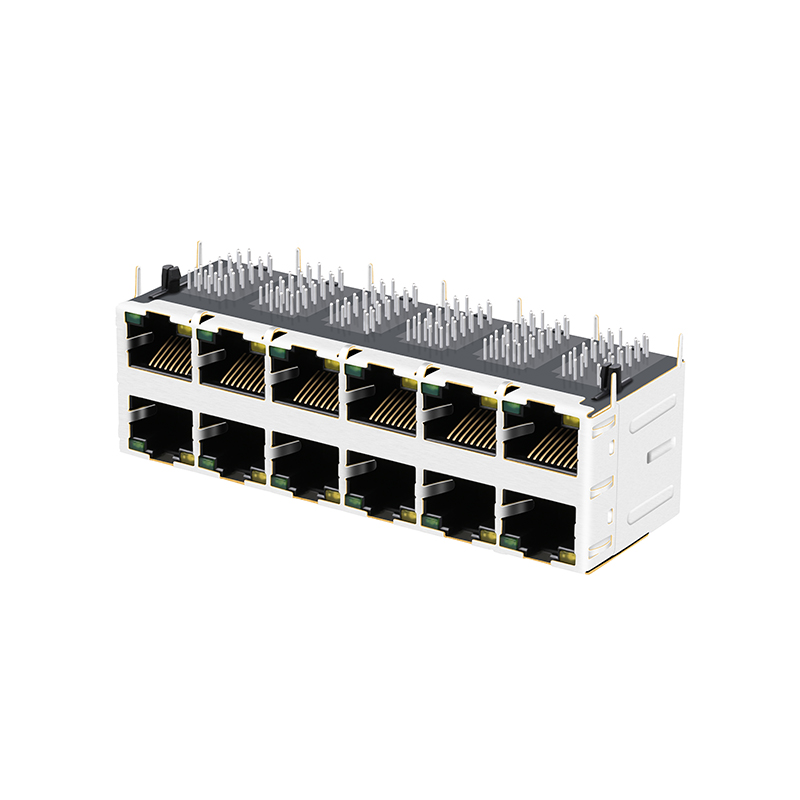

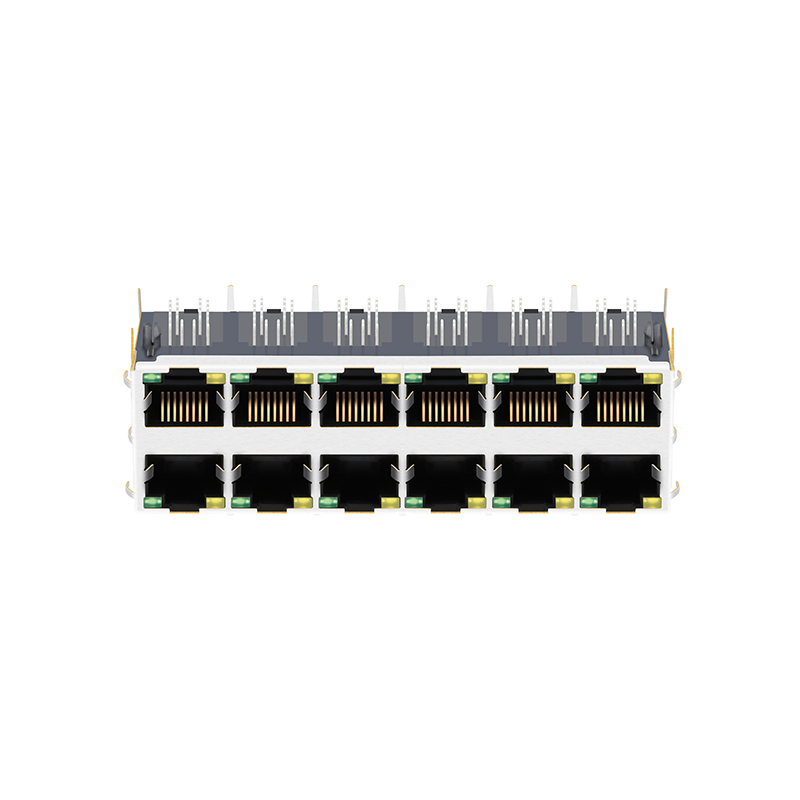

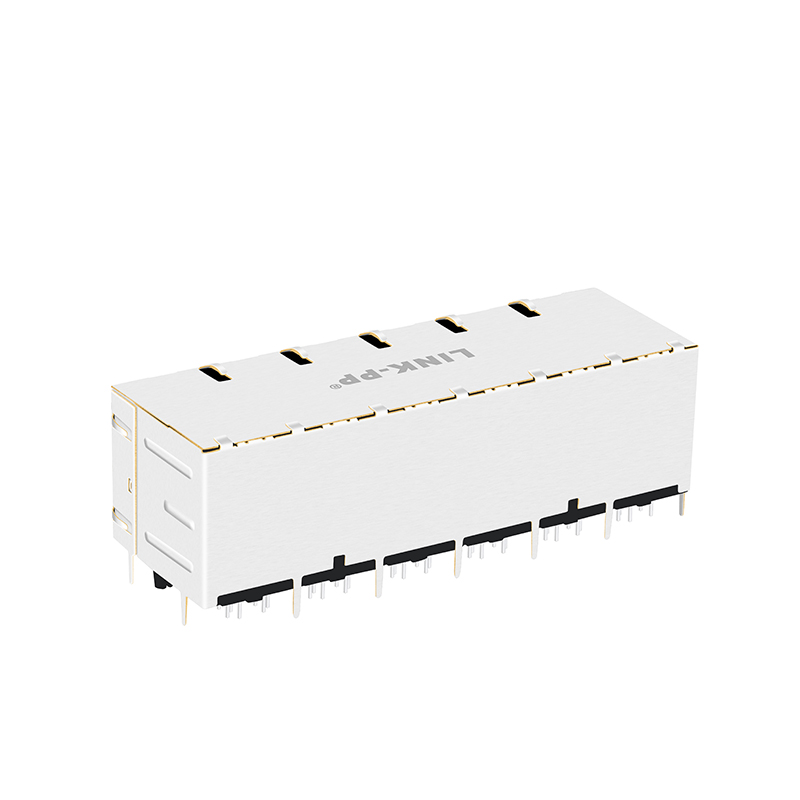

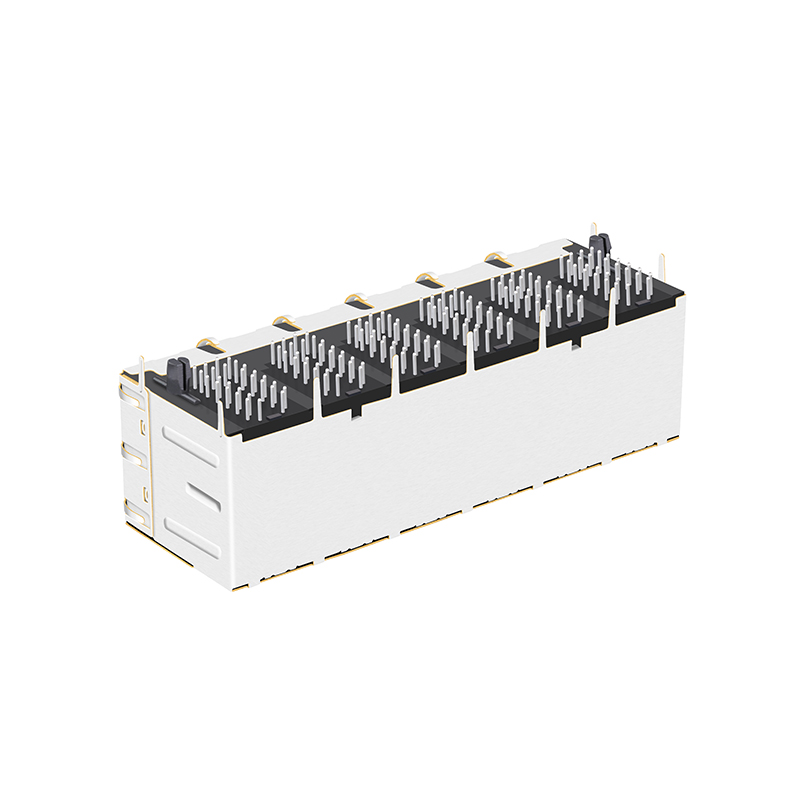

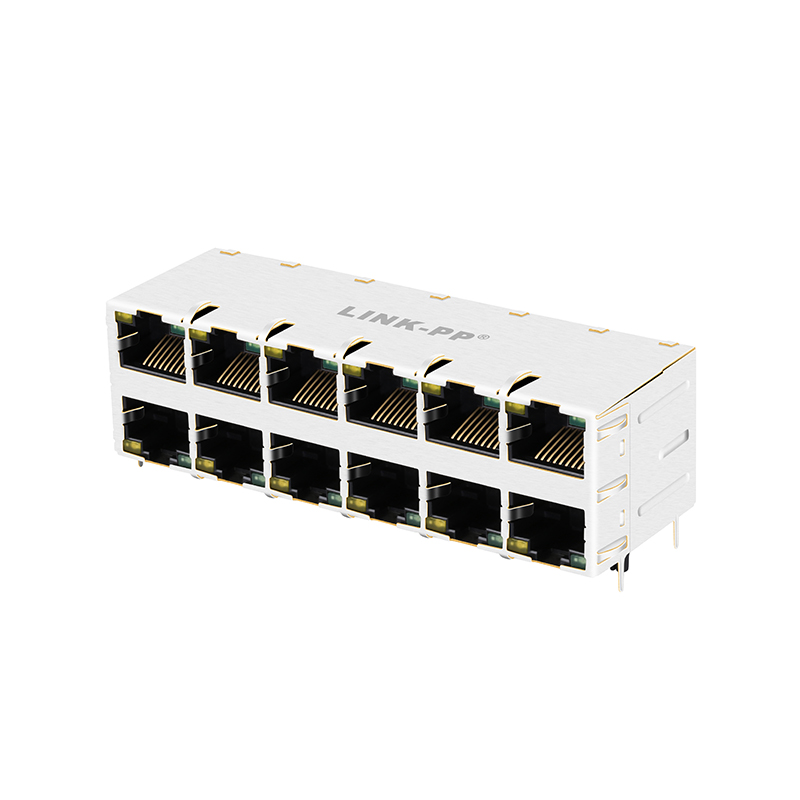

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

Send Inquiry

Product Description

Part Number	RJGE-12M6170DJP
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T, C
Configuration TX	T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	2X6
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Core Advantages

Expert supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers.

✓

Professional Certification: ISO 9001:2008, UL Certification, Reach Certification, RoHS Compliance, and Active Environmental Policy.

✓

100% Quality Guarantee: Manufactured under strict controls and 100% tested (not just batch tested). Quality guarantee for 6 years.

✓

Competitive Service: Delivery time of 2-3 weeks, free samples available, and support for new designs based on customer requirements.

✓

Global Standards: The company standard is defect-free products and services to achieve the highest level of customer satisfaction.

Frequently Asked Questions

What is the data transfer speed of this RJ45 Stacked Jack?

This connector supports a wide range of speeds including 10/100/1000 Base-T and is even capable of supporting up to 10G Base-T applications.

Are there different LED options available for this 2x6 port jack?

Yes, the RJGE-12M6170DJP can be configured with or without LEDs depending on your specific hardware design requirements.

What environment is this connector suitable for?

It is designed to operate in temperatures ranging from standard 0 to 70°C, with industrial grade options available for -40 to 85°C.

Does this product meet environmental compliance standards?

Absolutely. The product is RoHS compliant and the manufacturing process follows a strict active environmental policy.

Can I request a custom design for my specific PCB layout?

Yes, we provide new design services to meet unique customer requirements, including various mounting angles and pin types like THT solder.

Is the quality of each batch guaranteed?

Every single unit undergoes 100% testing, not just batch sampling, to ensure defect-free performance and long-term reliability.
