| Item | Value |
|---|---|
| Model Number | RJ45 Filtered Connectors |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet (PoE / Non-PoE) |
| Speed | 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow |
| Number of Cores per Jack | 4/6/8/12 |
| Shielding | Shielded, Emi Finger |

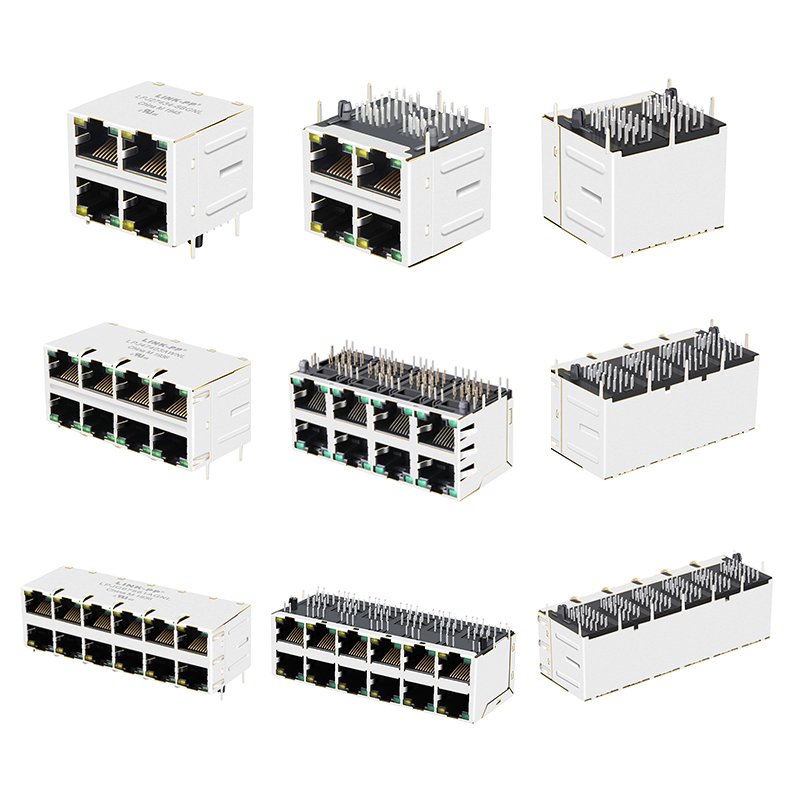

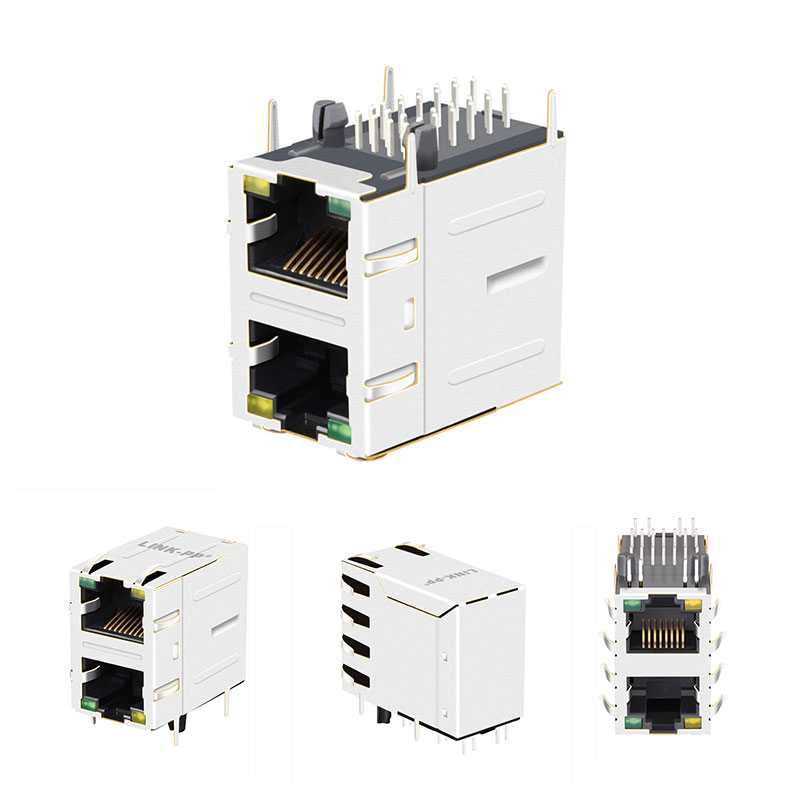

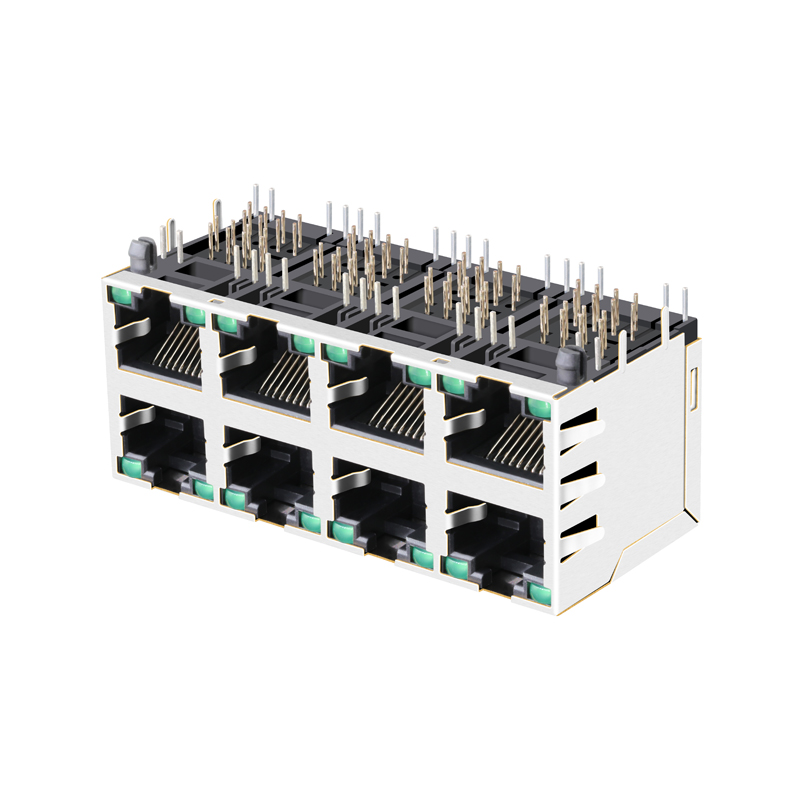

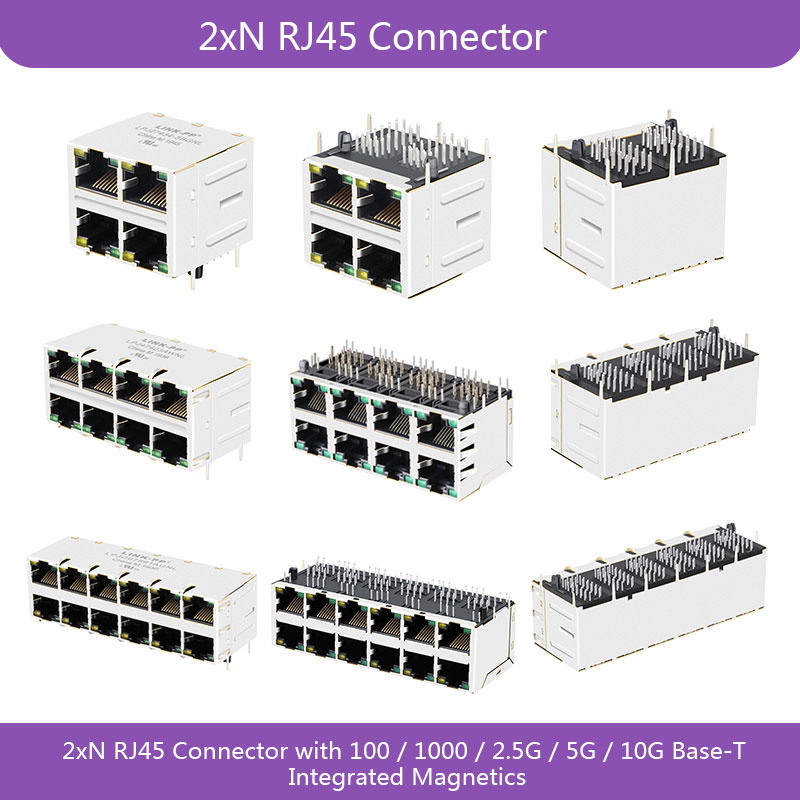

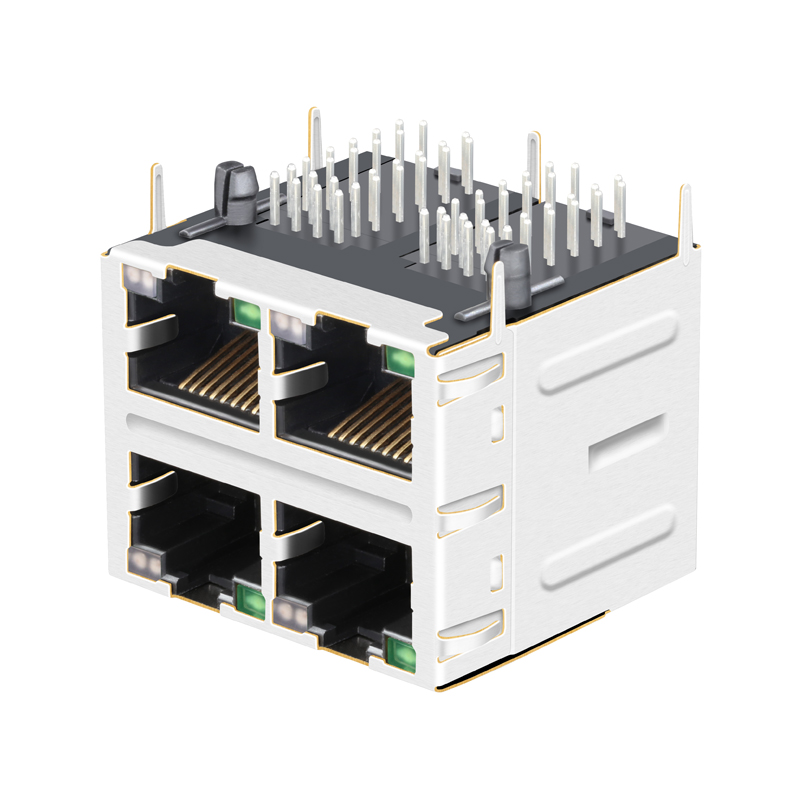

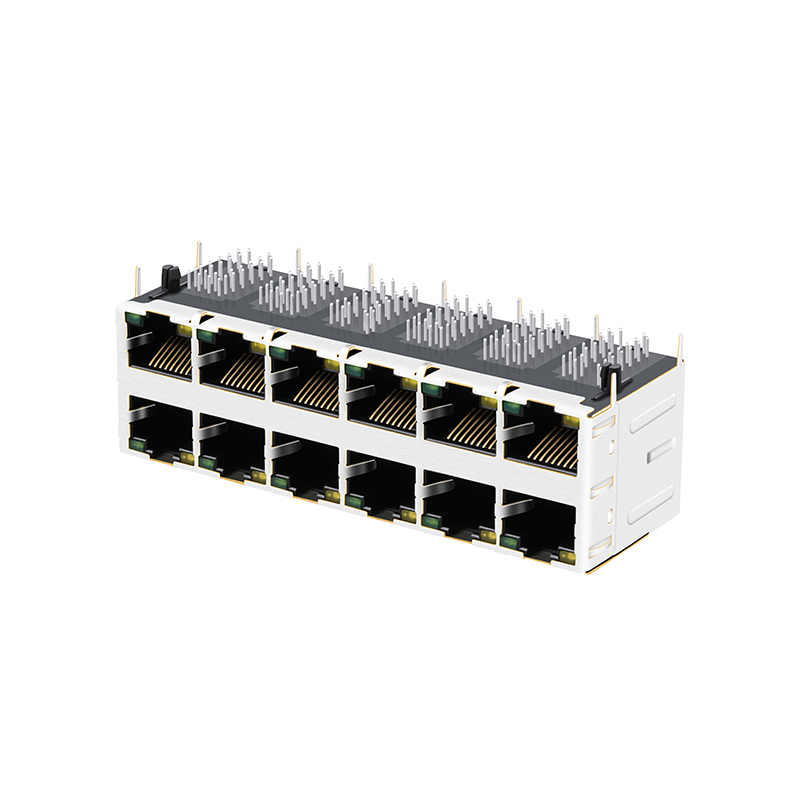

| Number of Ports | 2x1, 2x2, 2x4, 2x6, 2x8 Port |
| Features | Board Guide |
| Tab Direction | Down/Up |
| Contact Finish | Gold |
| Configuration RX/TX | T, C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C / -40°C ~ +85°C |
We maintain strict quality control by ensuring a pre-production sample is tested before mass production, followed by a thorough final inspection of all components prior to shipment.
You can source various products including RJ45 Magnetic, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Yes, the products are manufactured to high standards and certified by SGS, ISO9001:2008, UL, REACH, and CE.
They comply with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards, supporting Power over Ethernet up to 50W and speeds up to 10 Gbit/s.
