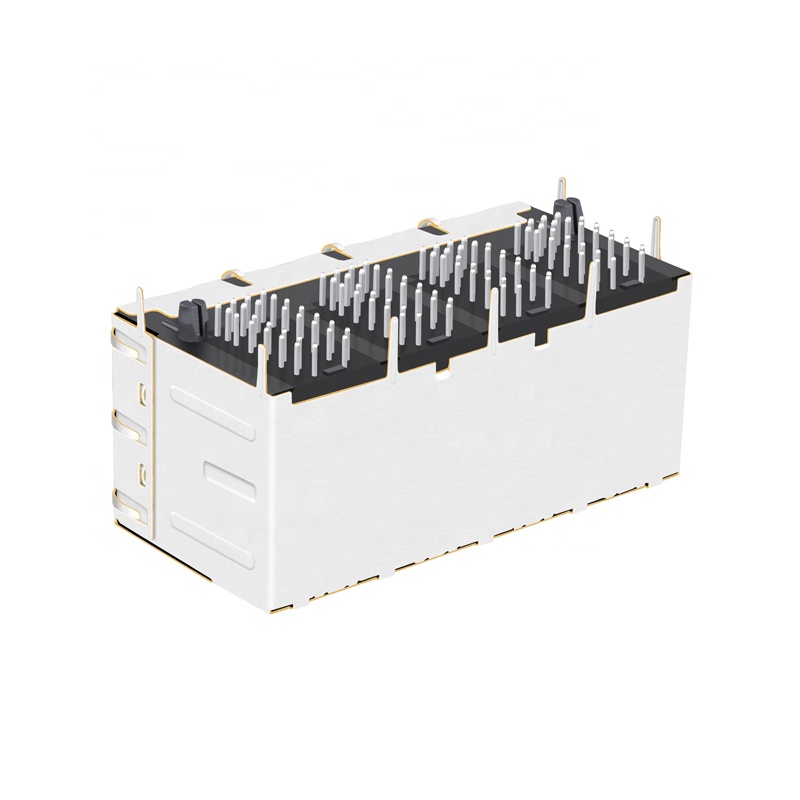

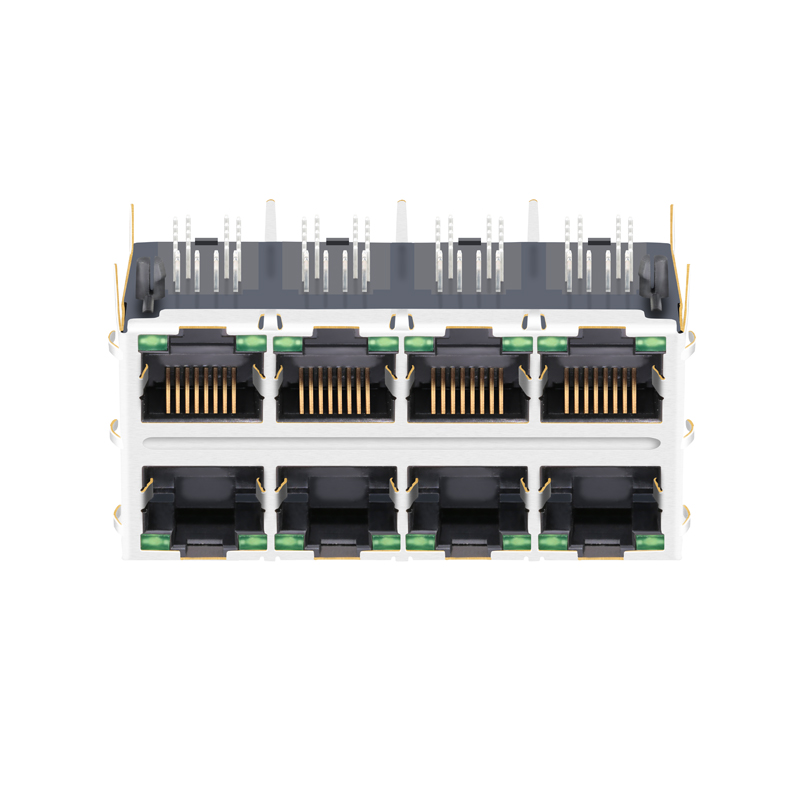

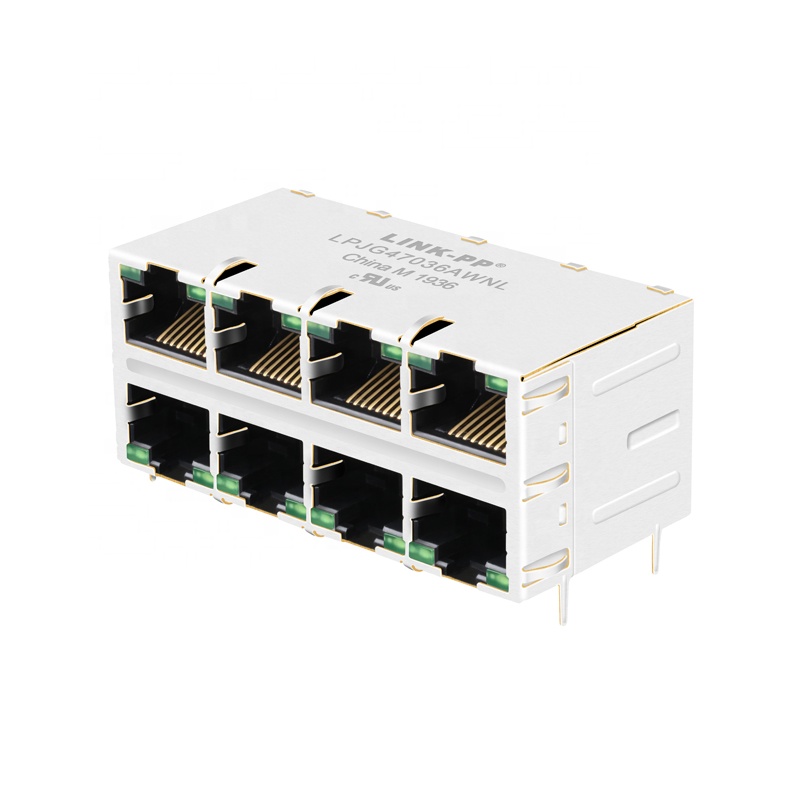

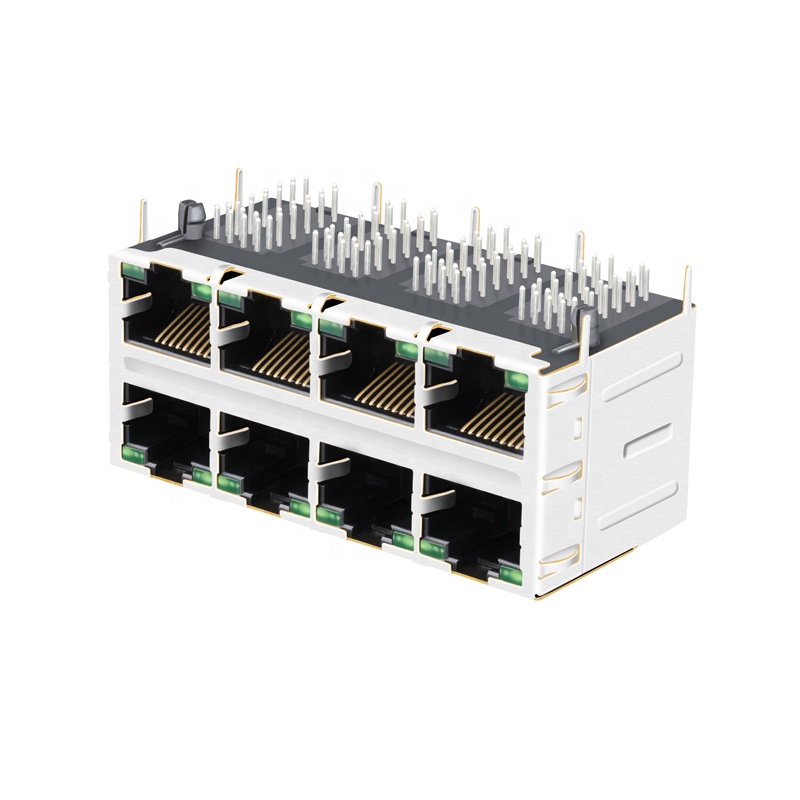

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

Product Specifications

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T, C / T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
LED Option	GREEN / GREEN
Latch	UP / DOWN
Number of Ports	2X4 (8 Ports)
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
Speed	2.5G BASE-T
Shielding	Shielded with EMI Tabs
Temperature	-20°C to +70°C
RoHS Compliant	YES

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

🛡️

ISO 9001:2008 Certification
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Quality Guarantee

✅

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Manufacturer for Global Network Leaders
Quality Guarantee: 6 Years

Competitive Price And Service

💰

More Competitive Price than Major Industry Brands
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom Design Support for Customer Requirements

Frequently Asked Questions

Q: What is the maximum data rate supported by this RJ45 connector?

A: This connector is designed for 2.5G BASE-T speeds, making it ideal for high-speed Ethernet applications.

Q: Does this 2x4 Port Jack support Power over Ethernet (PoE)?

A: Yes, it is fully compatible with PoE Cat5e standards, allowing for simultaneous data and power transmission.

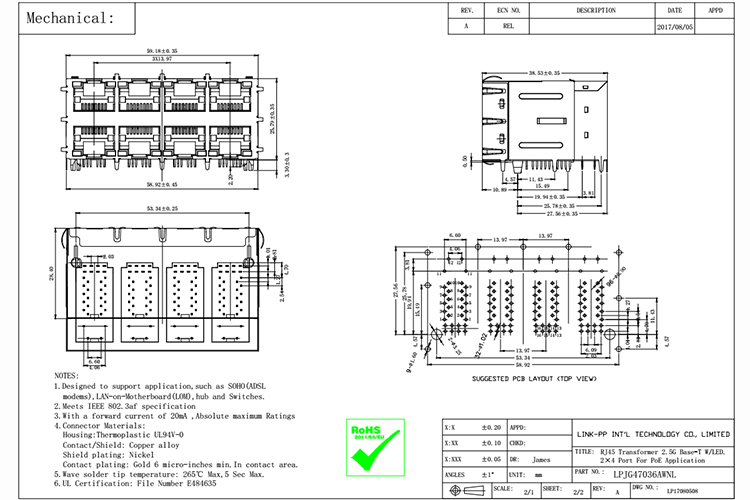

Q: What are the mounting specifications for the PCB?

A: It uses Through-Hole Technology (THT) solder pins and features a Side Entry (Right Angle) mounting orientation.

Q: How is the signal integrity protected?

A: The connector is fully shielded with EMI tabs to provide superior electromagnetic interference protection.

Q: What is the operating temperature range for this component?

A: It is designed to operate reliably in environments ranging from -20°C to +70°C.

Q: Are the materials compliant with environmental standards?

A: Yes, the product is RoHS compliant and meets Reach certification requirements for environmental safety.
