| Part Number | TIC-L003-11 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WithOUT LEDS |
| Latch | DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With OR WithOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Preferred Supplier Of TI Samsung Cisco Siemens …

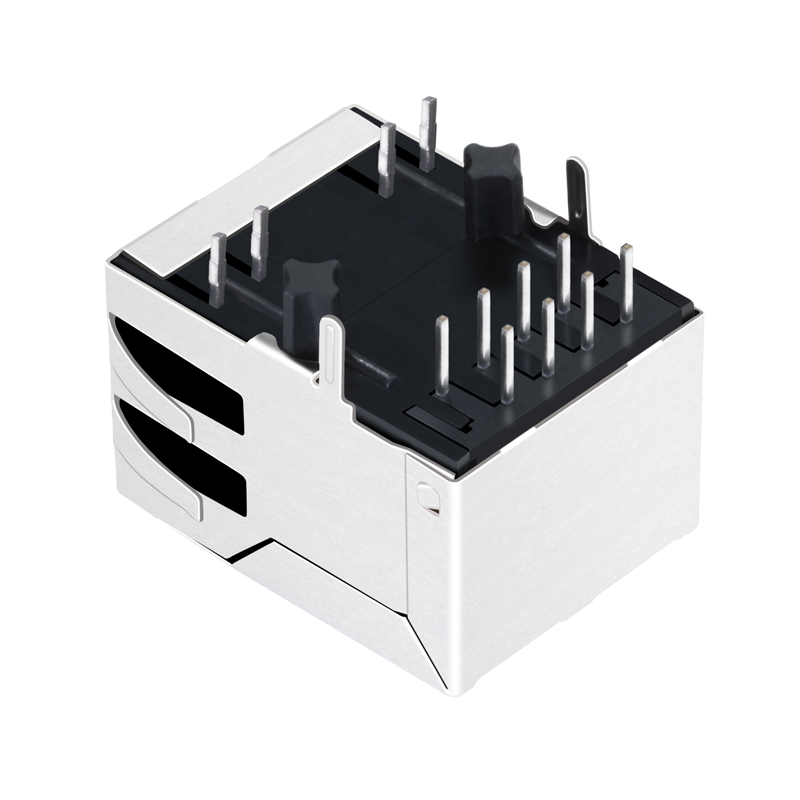

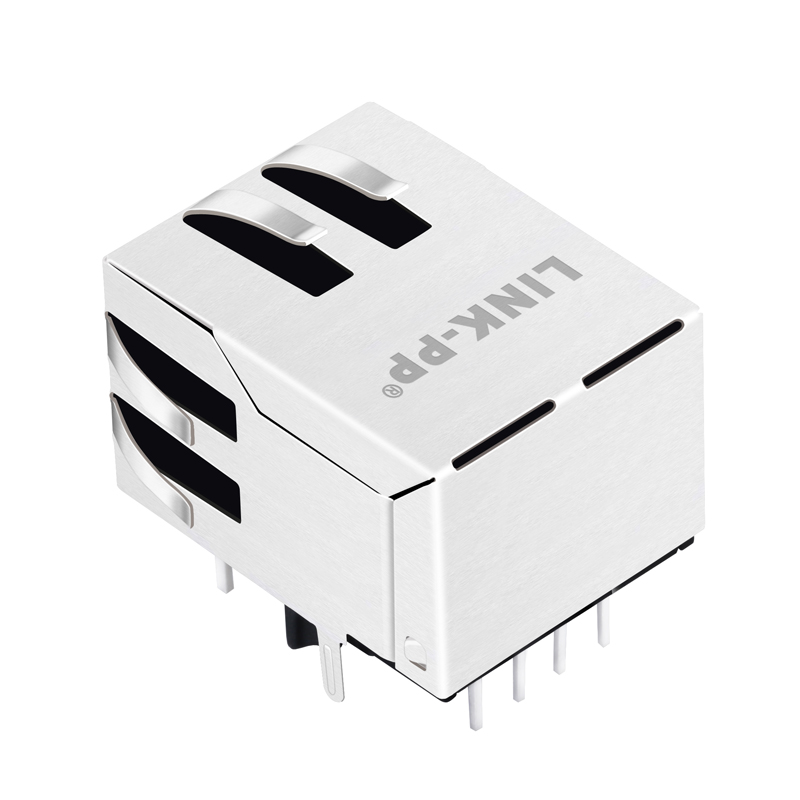

A1: The part number is TIC-L003-11. It is designed as a female RJ45 plug for internet modular connections supporting 10/100 BASE-T speeds.
A2: The standard operating temperature ranges from 0 to 70°C, and it is also capable of functioning in an extended range of -40 to 85°C.
A3: No, this model is configured without LEDs (WithOUT LEDS) and contains no diodes.
A4: The connector uses an FR4 PCB with a side entry mounting angle, features a T post retaining post, and utilizes THT solder pins.
A5: Yes, the TIC-L003-11 is RoHS-5 compliant with a lead-in solder exemption, and it is certified in accordance with Reach standards.
A6: The contact mating area is plated with gold, available in thicknesses of 6u", 15u", or 30u".
