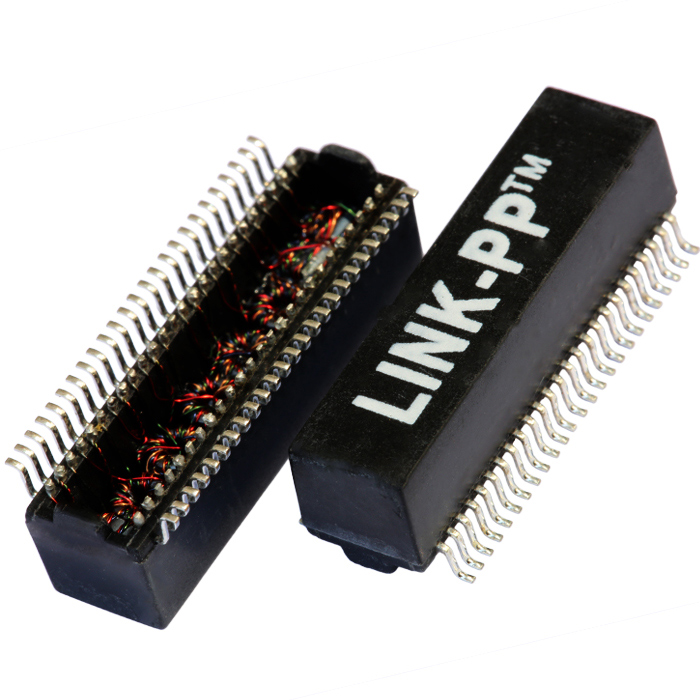

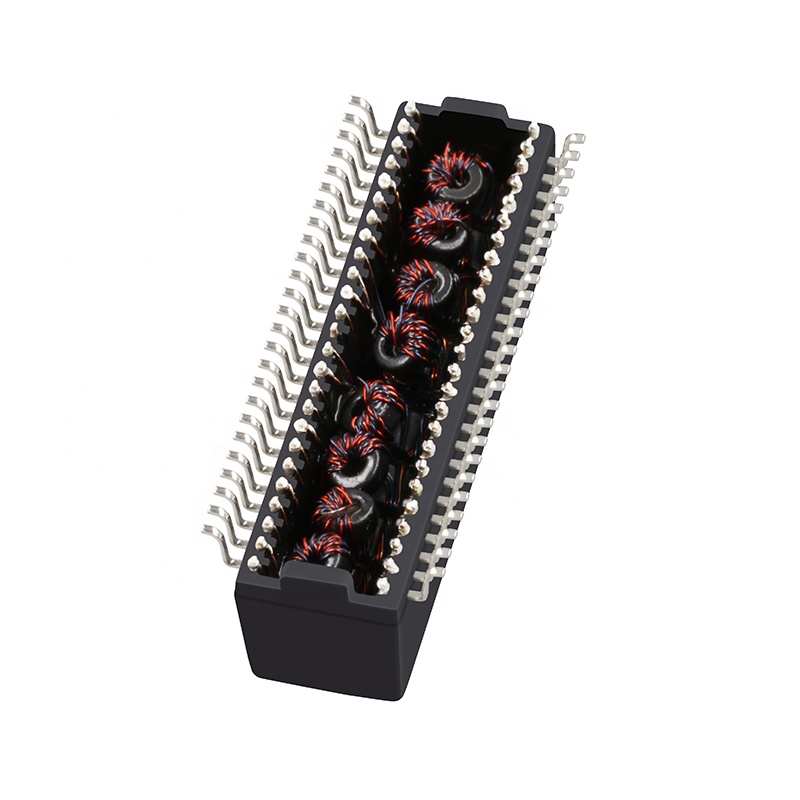

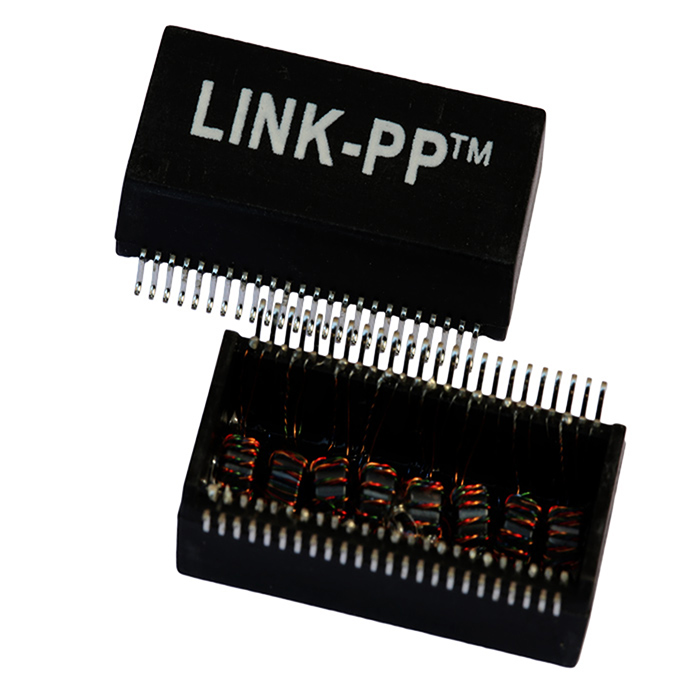

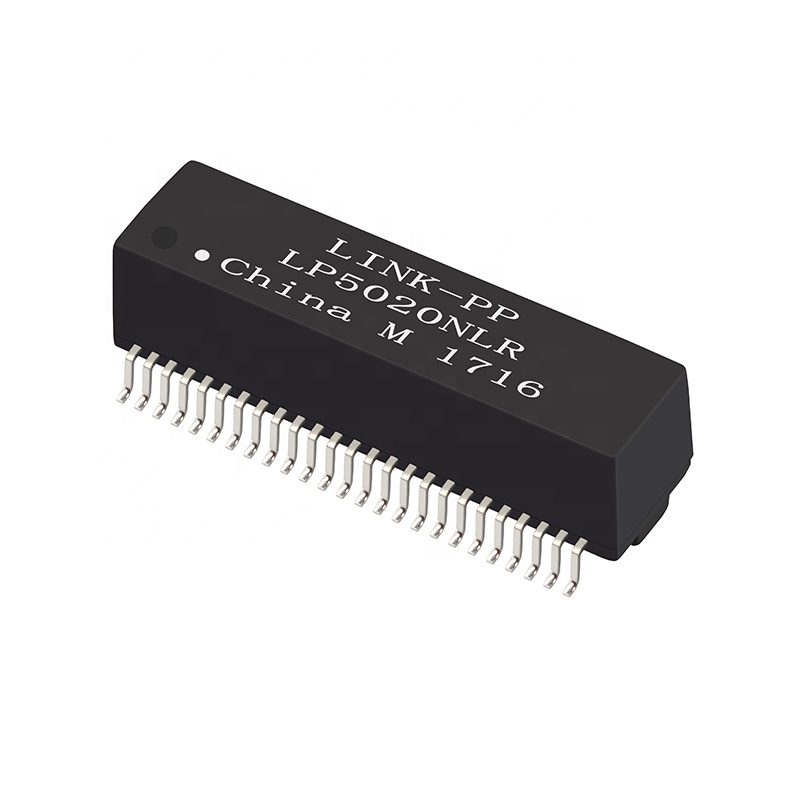

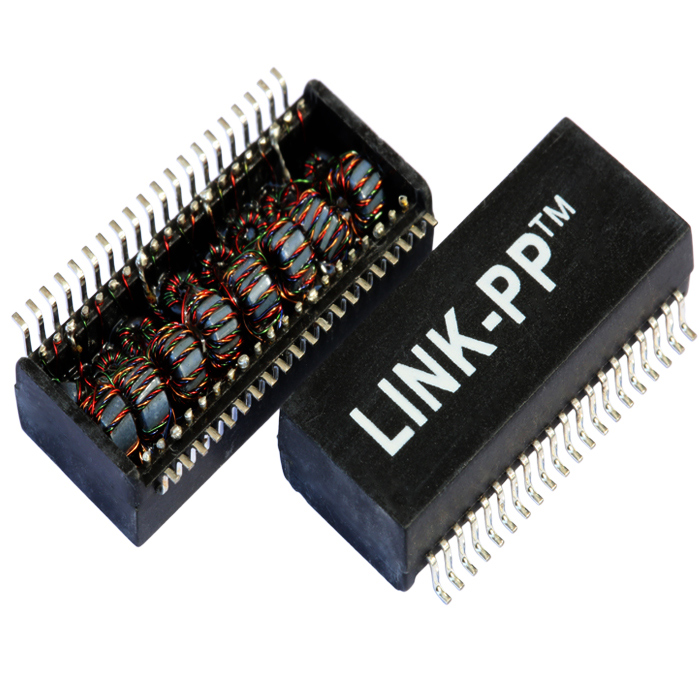

Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR

Product Description

Dual Port 1000 BASE-T SMD Current LAN Transformer Modules
Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR
Products Description
Item Lan Transformer
Replaceable Brand Model LP5020NLR
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-T
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0°C To 70°C / -40°C To 85°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Product Specification Graphic 1
Product Specification Graphic 2
Why Choose Us
Why Choose Us 1
Why Choose Us 2
Why Choose Us 3
Why Choose Us 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional, complete solutions for magnetic components along with strong technical support. Our main products include: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We export products to more than 30 countries and regions worldwide, covering Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique requirements. We trust our strength in the field and pursuit of excellence will build long-term partnerships.
Company Facility 1
Company Facility 2
Company Facility 3
Company Facility 4
FAQ
1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by the recipient.

3. What is your delivery time?

We are ready to ship immediately for in-stock items, and it takes 15-30 days for mass production orders.

4. What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can proceed with a detailed discussion regarding your custom requirements.

6. What is your advantage?

We have 19 years of professional production experience and have maintained long-term partnerships with leading global corporations.
