In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

Product Banner

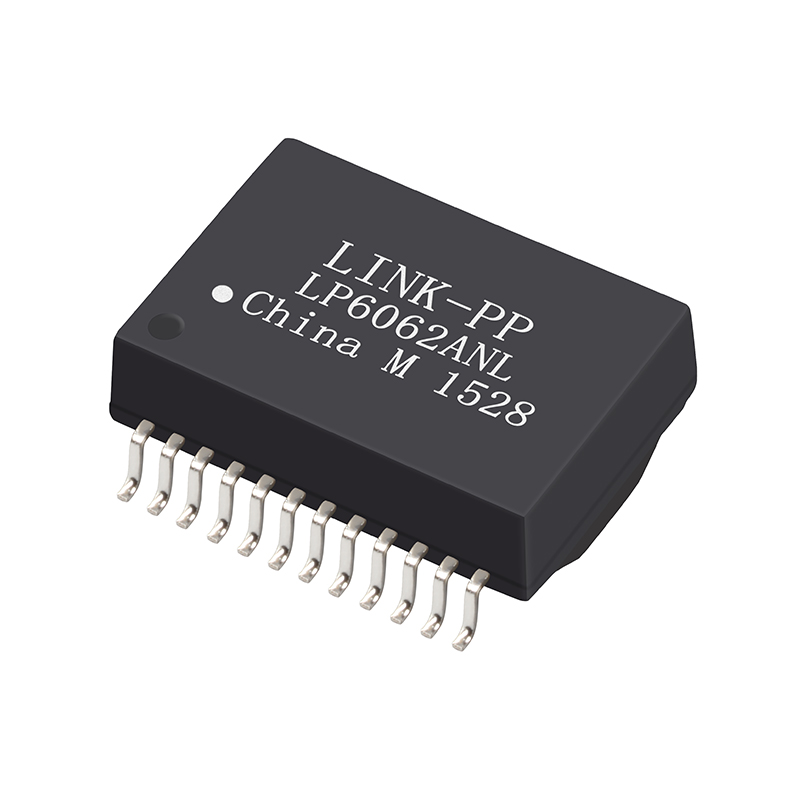

Product View 1

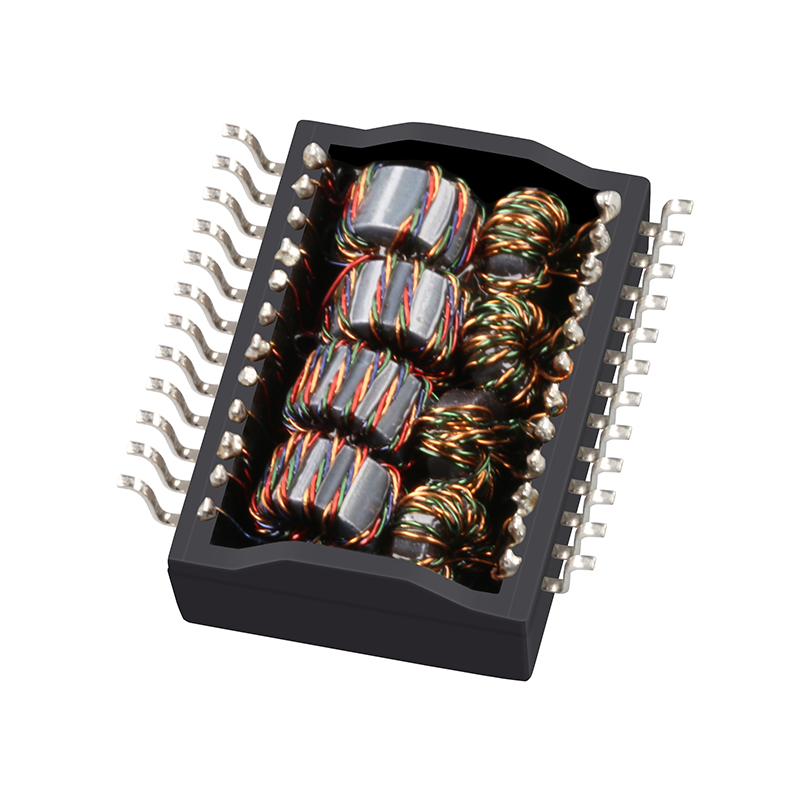

Product View 2

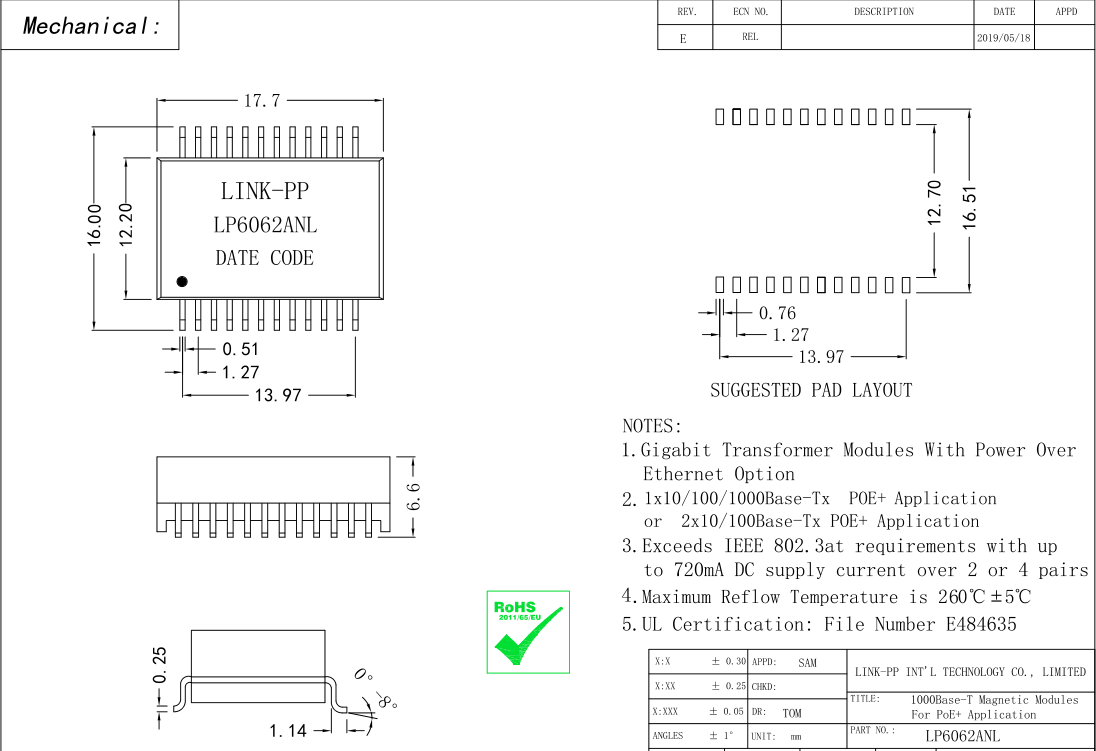

Product Diagram
Dimension Parameters
Item Value
Place of Origin China
LINK-PP Part Number LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40°C TO +85°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Product Detail Information
Packaging Details
  • N.W/pcs: 0.004kg
  • Package: Reel
  • SPQ: 400pcs
  • Qty/carton: 1600pcs
  • Carton size: 37*37*25cm
  • G.W/carton: 5.8kg
Feature 1
Feature 2
Feature 3
Feature 4
Feature 5
Feature 6
Final Feature Overview
Frequently Asked Questions
Q: What is the application range of the LP6062ANL Lan Transformer?
A: The LP6062ANL is designed specifically for Ethernet (PoE+) applications, supporting data transmission speeds of 10/100/1000 Base-T.
Q: Can the LP6062ANL replace the Halo TG1G-S012NZRL?
A: Yes, the LP6062ANL corresponds to the Halo part number TG1G-S012NZRL and serves as a fully compatible alternative.
Q: What is the operating temperature threshold for this product?
A: The operating temperature range for the LP6062ANL is -40°C to +85°C, making it suitable for standard industrial environments.
Q: What is the packaging configuration for bulk shipments?
A: The product is packaged on Tape & Reel. The Standard Product Quantity (SPQ) is 400 pieces per reel, with a total of 1600 pieces packed in a standard carton measuring 37*37*25cm.
Q: What are the mounting and pin configurations for this Lan Transformer?
A: The LP6062ANL features a Surface Mount (SMD) design with 24 pins, a single port structure, and 8 cores per port.
