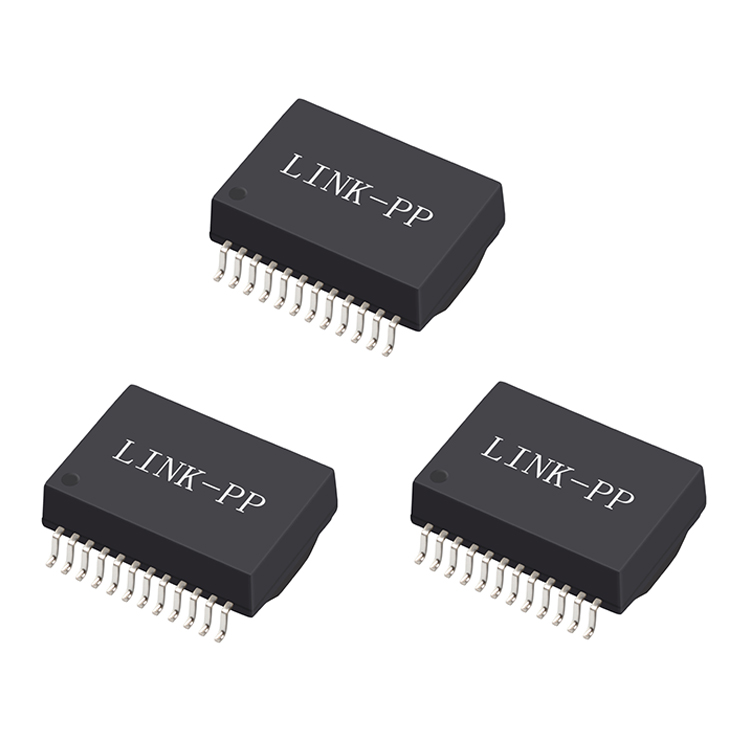

1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR

Product Description

1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR
Product Overview
Products Description
ItemLan Transformer
Replaceable Brand ModelHST-24040SXR
Part StatusActive
ConstructionOpen Frame
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1 Port
Speed1000 Base-t
Pin Number24 Pin
Mounting TypeSMT
Temperature0℃ TO 70℃
AutoMDIXYES
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
PackageTape & Reel
Detail 1 Detail 2 Detail 3 Detail 4 Detail 5
Technical Specifications Circuit Diagram
Why Choose Us

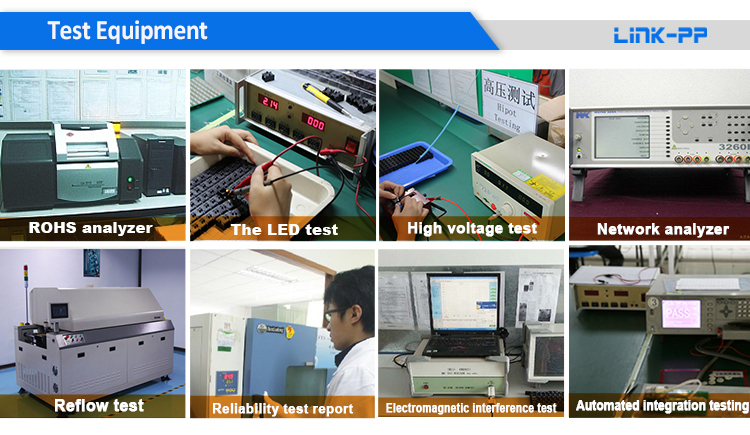

Quality Assurance Manufacturing Power Testing Equipment Service Team
Manufacturer Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a dedicated team of around 2000 staff at present.

With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short lead time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.

Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique requirements.

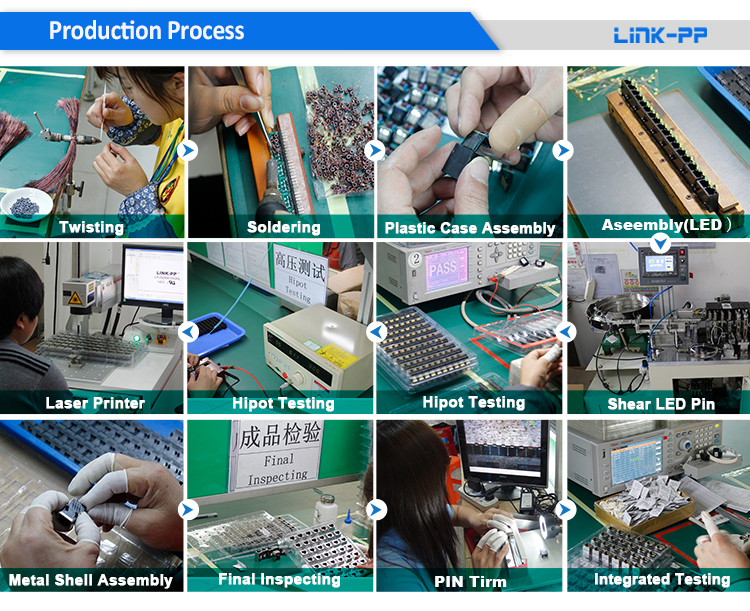

Production Line Quality Control R&D Lab Warehouse
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though the shipping fee is covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-sales service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion on your requirements.
What is your competitive advantage?
We have over 19 years of professional production experience and serve as a trusted partner for major global technology firms.
