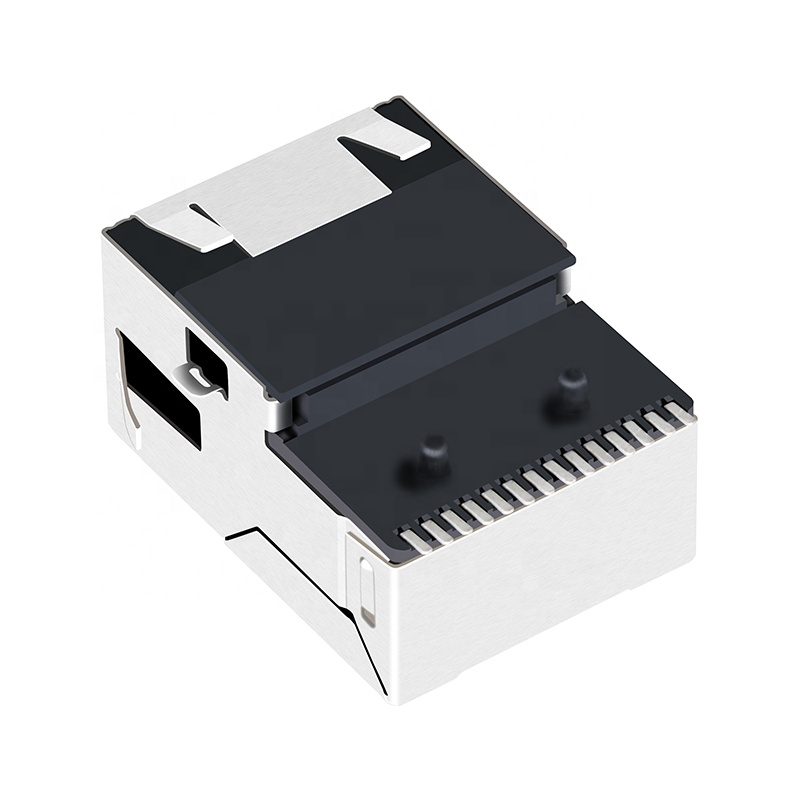

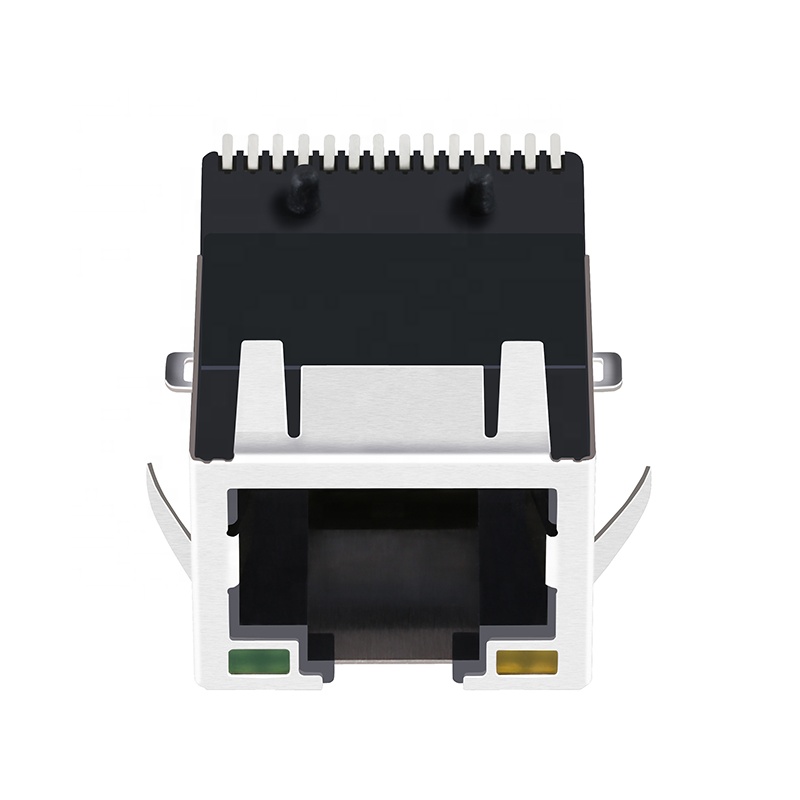

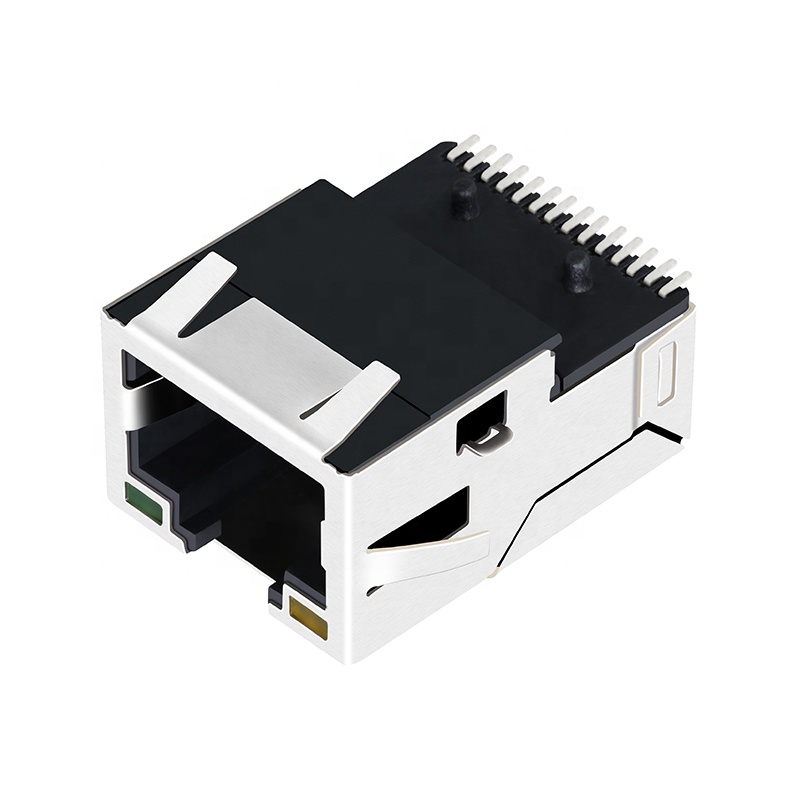

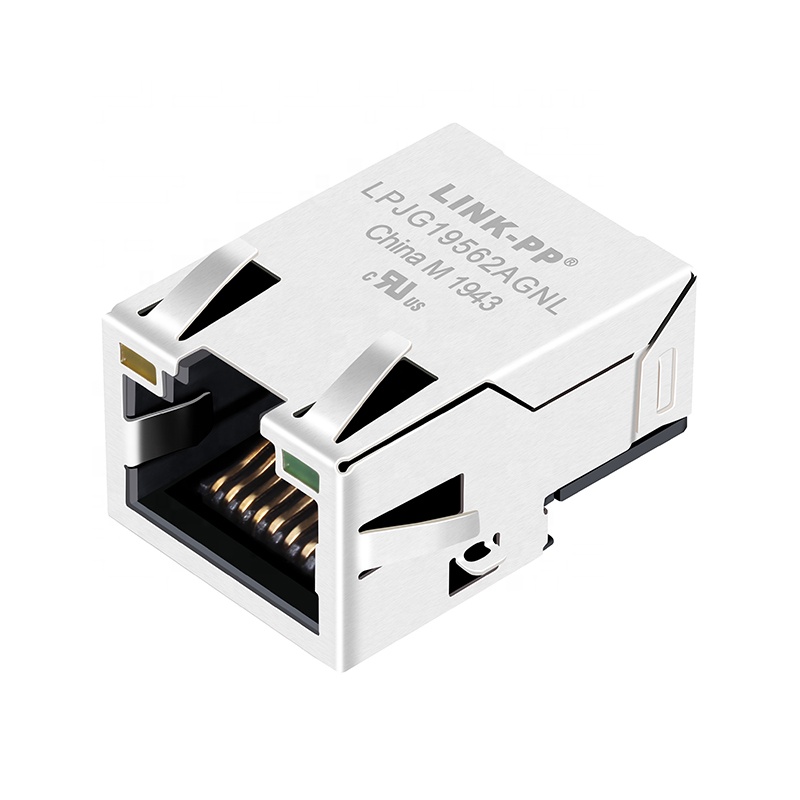

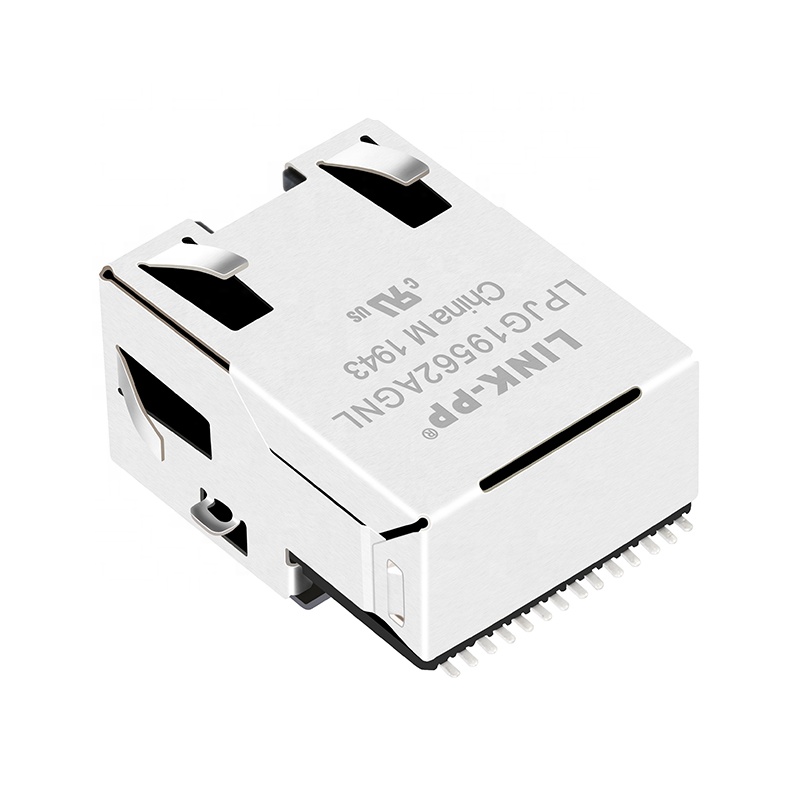

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

1 / 5

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

■ Products Description

Item	RJ45 Female Connector
Part Number	LPJG19562AGNL
Reference Part Number	7498111120AR 7498111120R
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0°C TO 70°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

☞ Product Showcase Overview

■ Production & Testing Operations

■ Manufacturing Facility & Distribution

Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we supply magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.

■ FAQ

1 Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2 Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should pay the shipping fee.

3 What is your delivery time?

Ready to ship for stock items and 15-30 days for mass production.

4 What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5 Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

6 What is your advantage?

19 years of production experience and we are a partner of leading global companies for many years.
