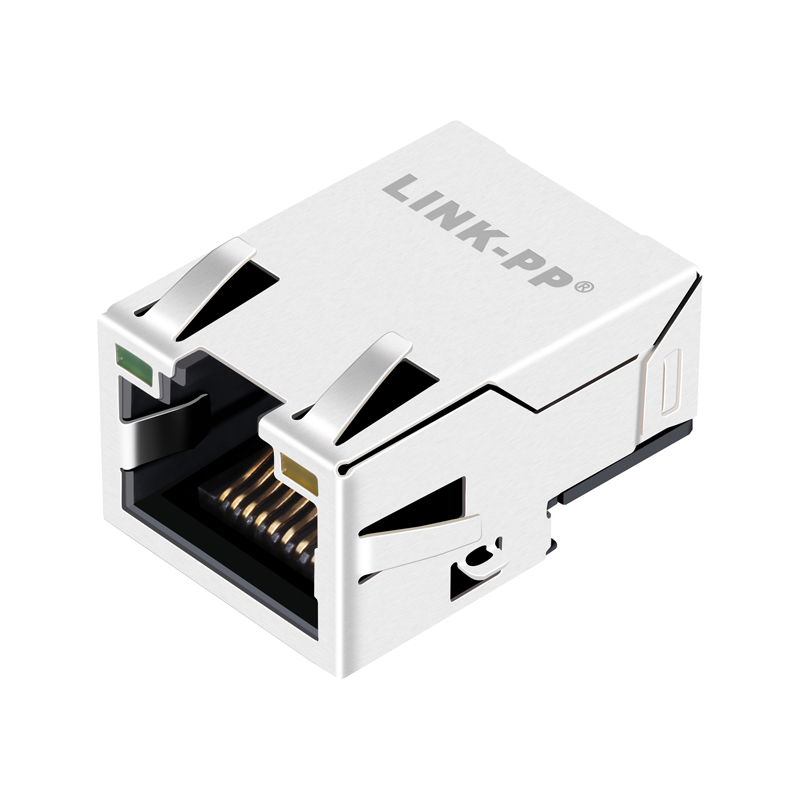

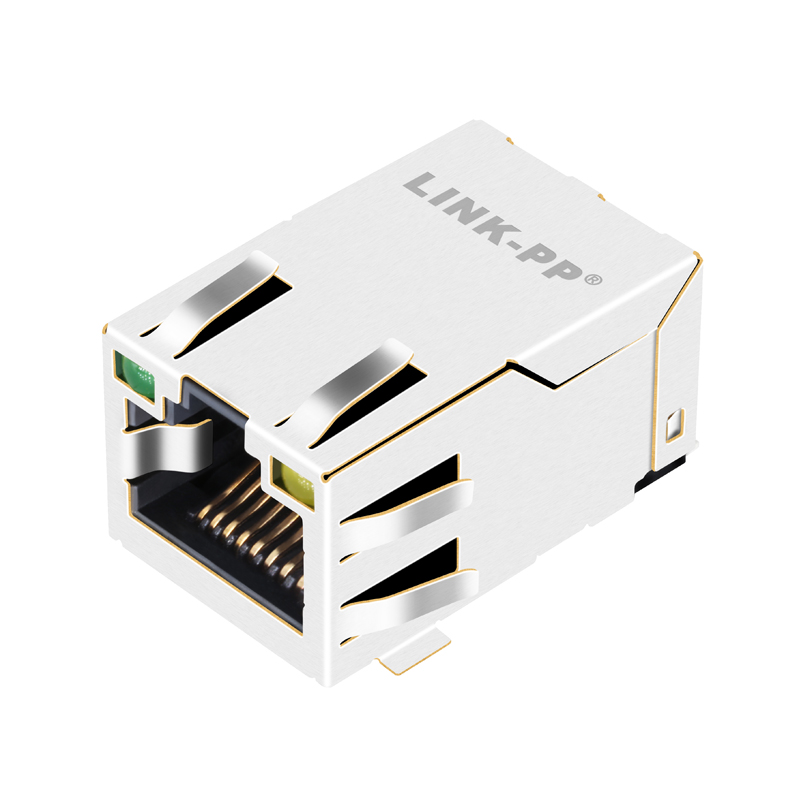

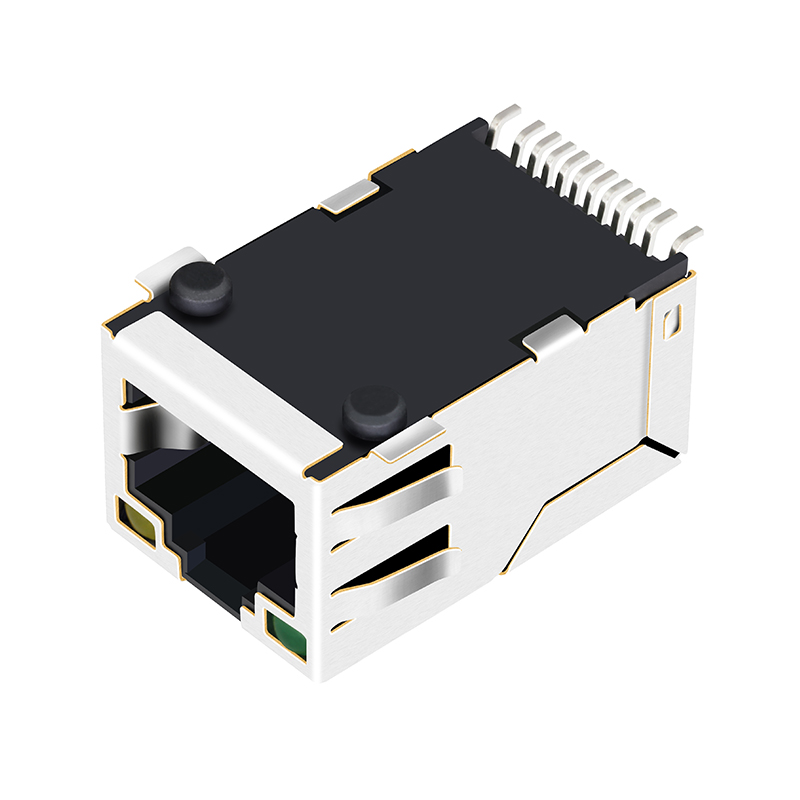

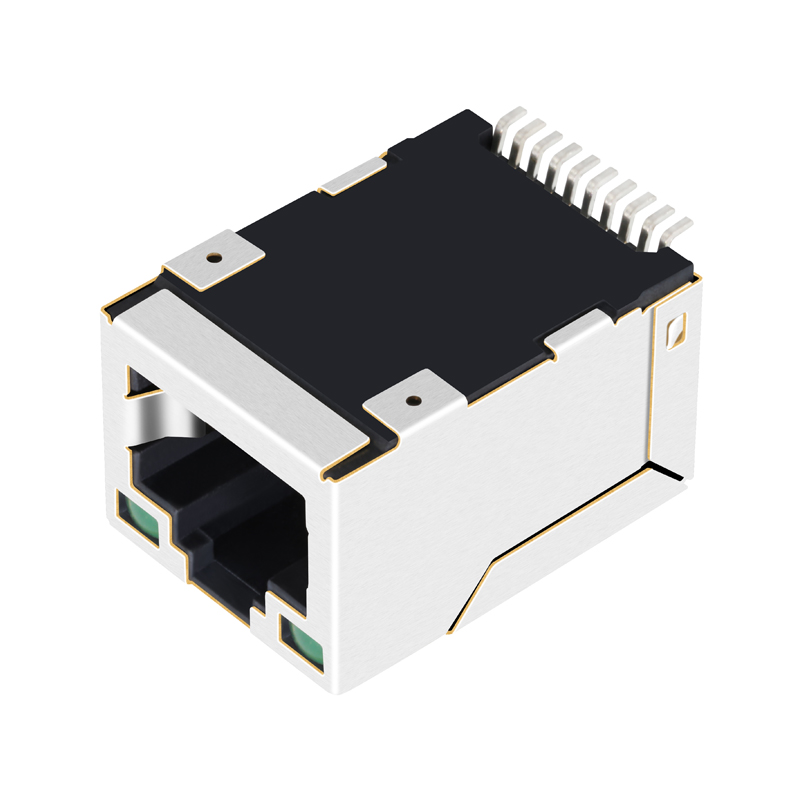

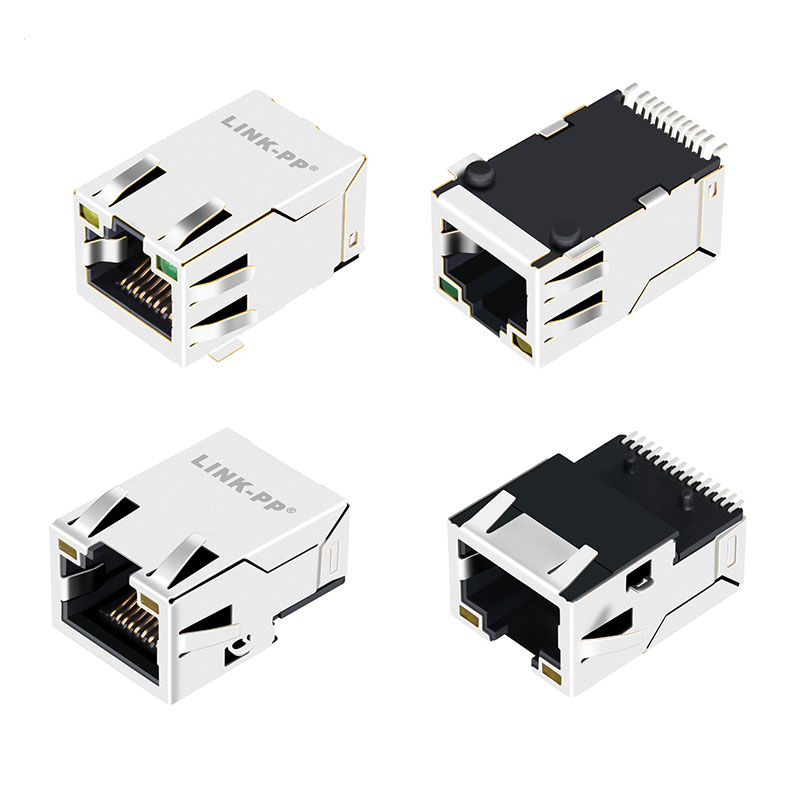

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
1 / 5
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Send Inquiry

Product Description

Product Description

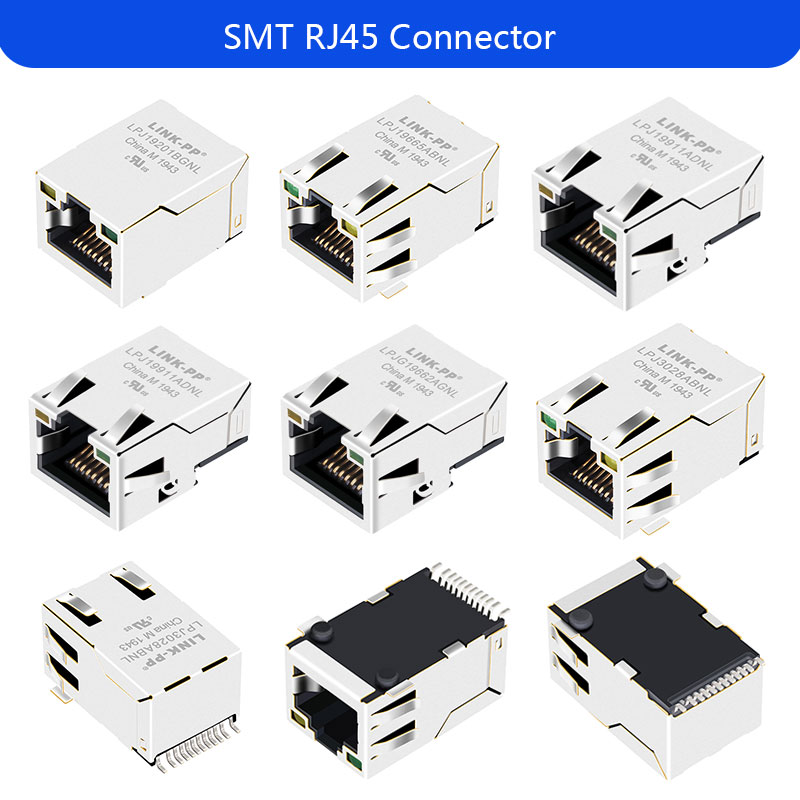

RJ45 Connector

Characteristics:

RJ45 Connector with integrated transformer / common mode choke Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s Available in SMT, THT and THT with USB Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification
Model NumberSMT RJ45 Connector
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery

The package:

Package: Tray, Carton size: 34.5*34.5*27cm, G.W./carton: 6.9kg, Qty/carton: 550pcs, SPQ: 110pcs, N.W/pcs: 0.013kg

Packing details
Facility & Production
Frequently Asked Questions
How do you guarantee the quality of your RJ45 connectors?
We ensure quality through a strict process including a pre-production sample before mass production and a final inspection before shipment.
What types of products can I purchase from your catalog?
We specialize in RJ45 Magnetic connectors, Lan transformers, RJ11 Connectors, and SFP modules.
What is the data speed support for these connectors?
Our connectors support speeds ranging from 10/100/1000 Base-T up to 10 Gbit/s, depending on the specific model.
Are your products compliant with international standards?
Yes, our products are compliant with IEEE 802.3u, 802.3ab, 802.3af, 802.3at, and 802.3bt standards, and are certificated by SGS, UL, REACH, and CE.
What are the accepted payment methods and delivery terms?
We accept various payment types including T/T, L/C, PayPal, and Western Union. Delivery terms include FOB, CFR, CIF, EXW, DDP, and Express Delivery.
What is the operating temperature range for these RJ45 components?
The standard operating temperature is 0°C ~ 70°C, with industrial grade options supporting -40°C ~ +85°C.
