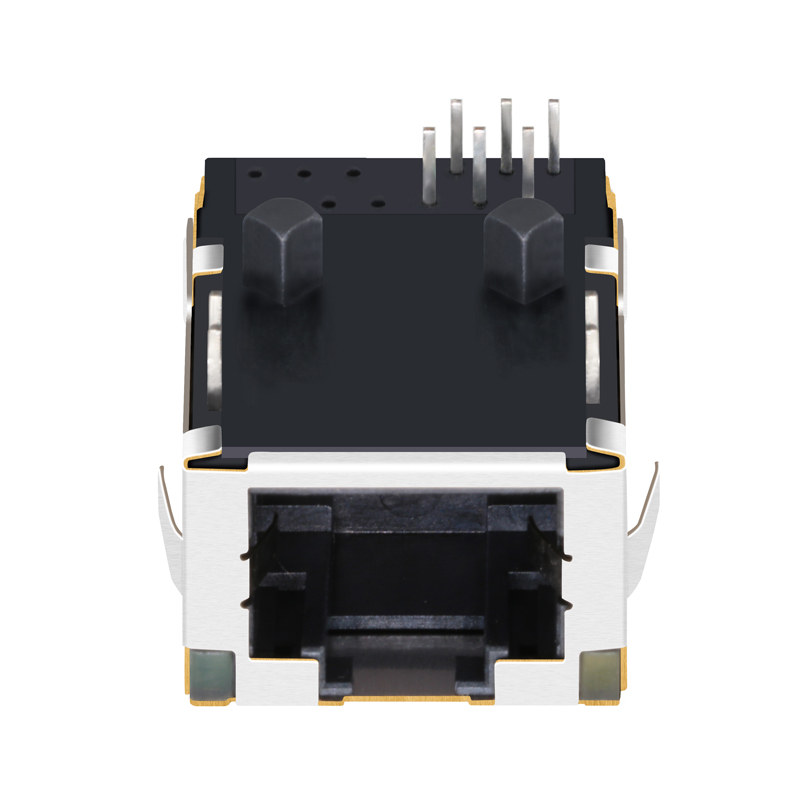

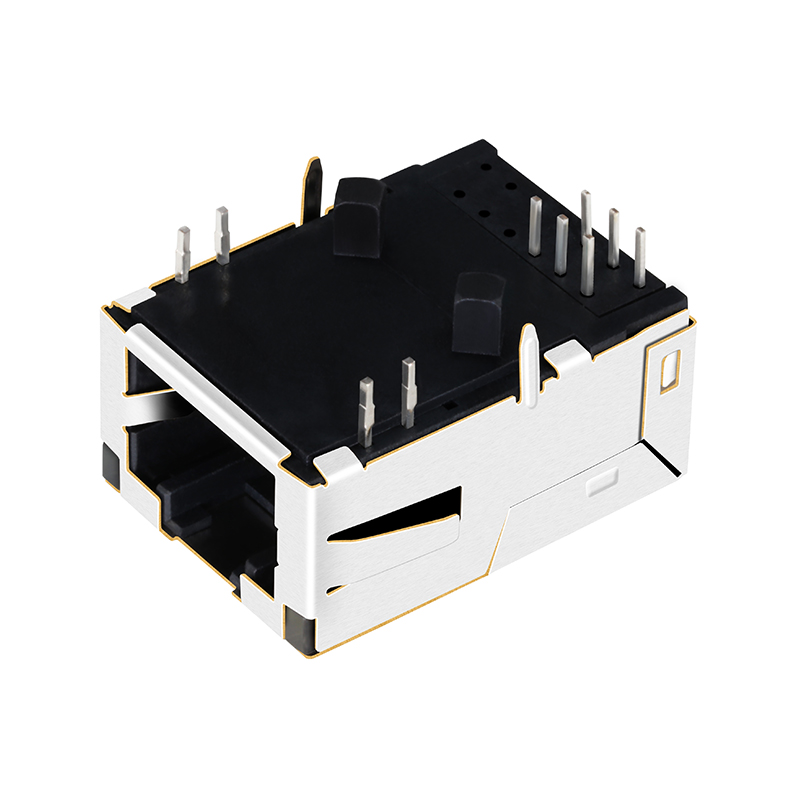

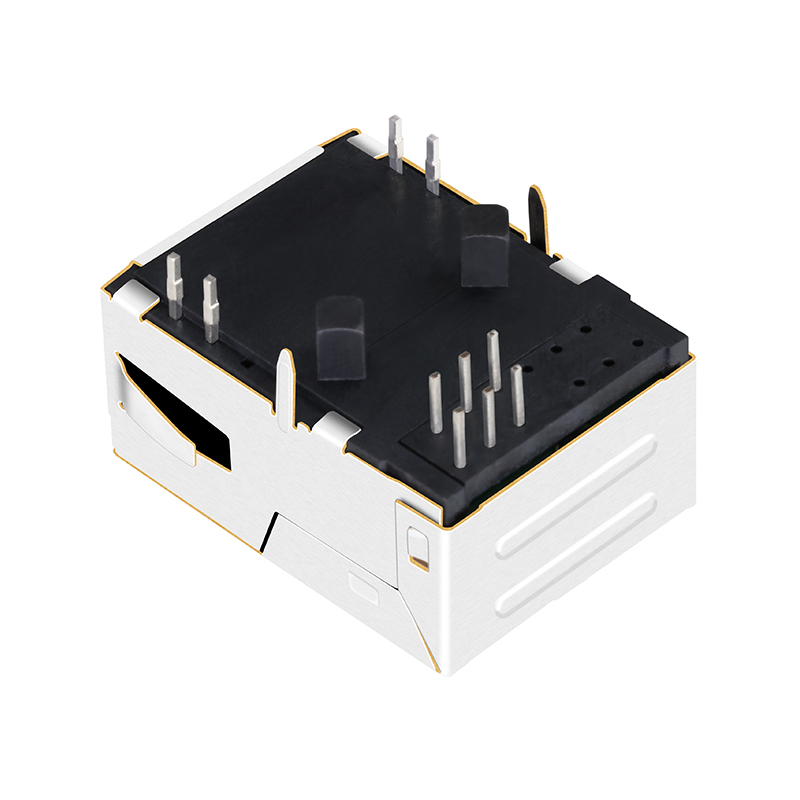

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
1 / 5
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

Send Inquiry

Product Description

Ethernet RJ45 Jack Connector
L829-1D1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
✓ Products Description
ItemRJ45 Female Connector
Part NumberLPJK7001AGNL
Compatible WithL829-1D1T-91
Part StatusActive
Connector TypeJack
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCB MaterialFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Diagram
★ Technical Specifications & Visuals
RJ45 Series
Connector Drawing
Packaging Info
Quality Control
Production Line
Application Support
ℹ Company Overview
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Workshop
Equipment
Testing Center
Certifications
Warehouse
? Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, although the shipping fee should be covered by the requester.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion regarding your specific requirements.
What is your core advantage?
With 19 years of production experience, we have established long-term partnerships with major global technology leaders and maintain high-quality manufacturing standards.
