LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

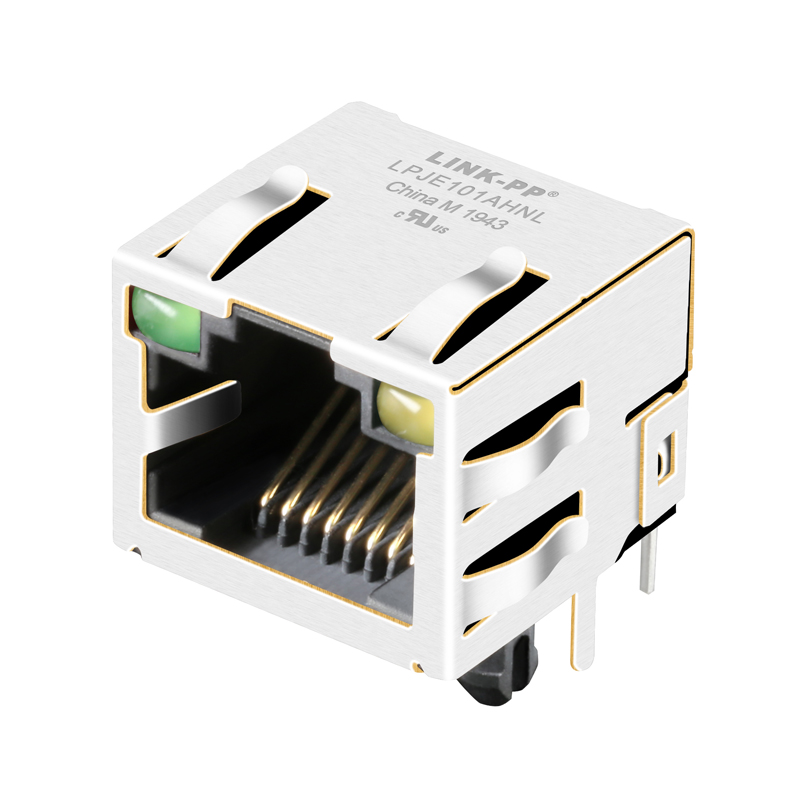

Product Image 1

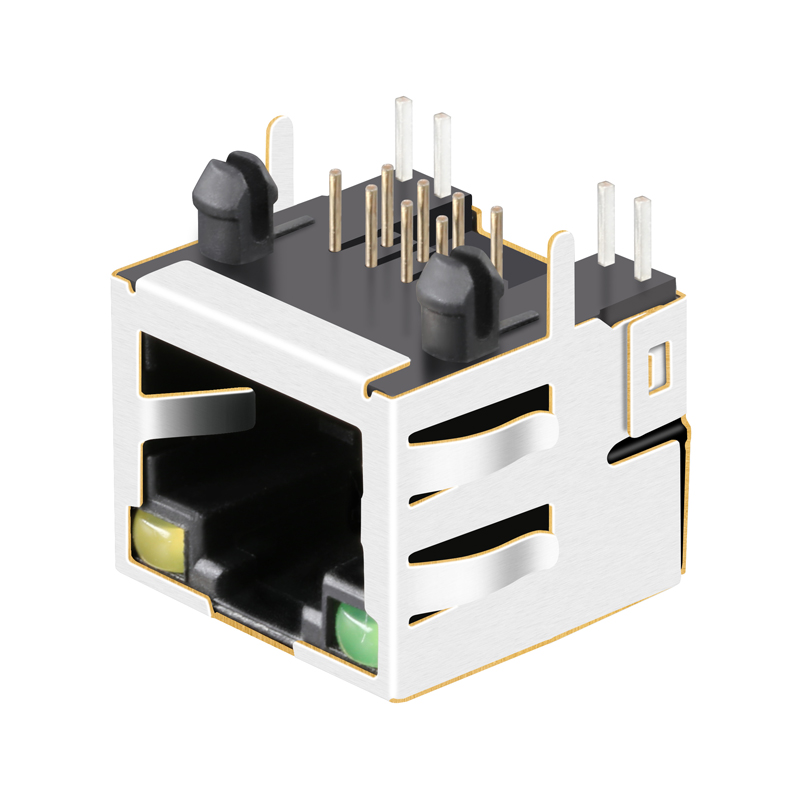

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Packaging Details
Package: Tray
Carton Size: 54.5 * 28.5 * 27 cm
G.W/Carton: 13.1 kg
Qty/Carton: 3000 pcs
SPQ: 100 pcs
N.W/pcs: 0.004 kg
Packing Image
Company Profile

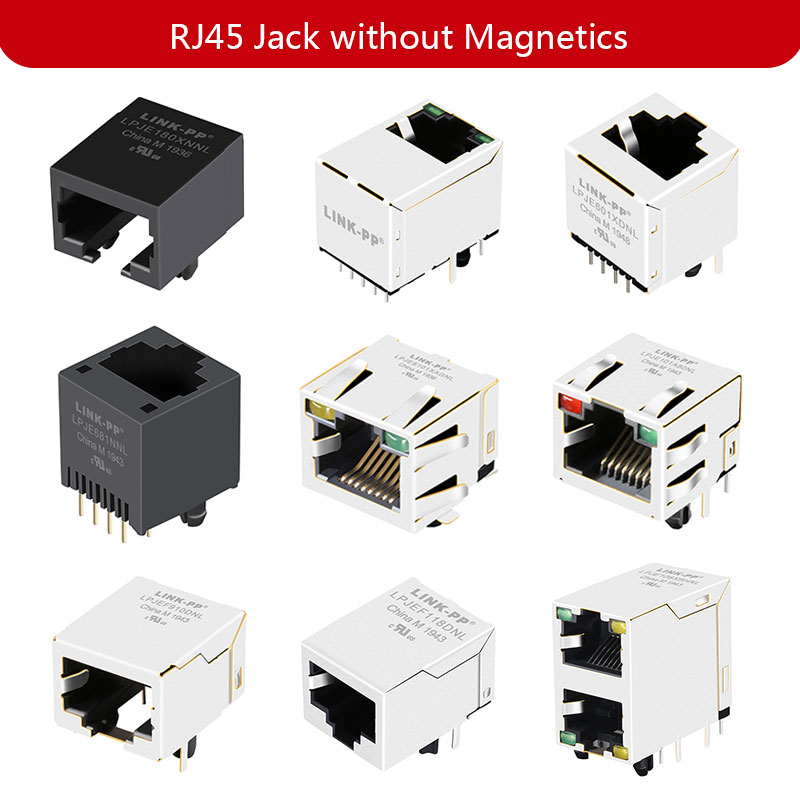

Company Facility 1
Company Facility 2
Company Facility 3
Company Facility 4
Company Facility 5
Company Facility 6
Frequently Asked Questions
Q What is the main connector type of the model LPJE101AHNL?
The LPJE101AHNL is a single-port RJ45 connector designed for Through Hole mounting with a 90° right angle orientation.
Q Does this model include internal magnetic components?
No, this connector is designed "Without Magnetics", making it suitable for direct interface configurations where internal magnetics are not required.
Q What are the built-in LED indicators for LPJE101AHNL?
It is equipped with a Yellow/Green LED configuration to provide active status indicators on the front panel.
Q What is the operating temperature range for this connector?
The connector functions reliably across a wide operating temperature range from -40°C to 85°C, making it suitable for industrial environments.
Q Is the LPJE101AHNL shielded against electromagnetic interference?
Yes, it features a shielded design with EMI fingers to provide excellent protection and signal integrity in noisy environments.
Q How is the product packaged for bulk shipment?
The standard packaging is in Trays. The standard package quantity (SPQ) is 100 pieces per tray, and a full carton contains 3,000 pieces (carton dimensions: 54.5*28.5*27cm).
