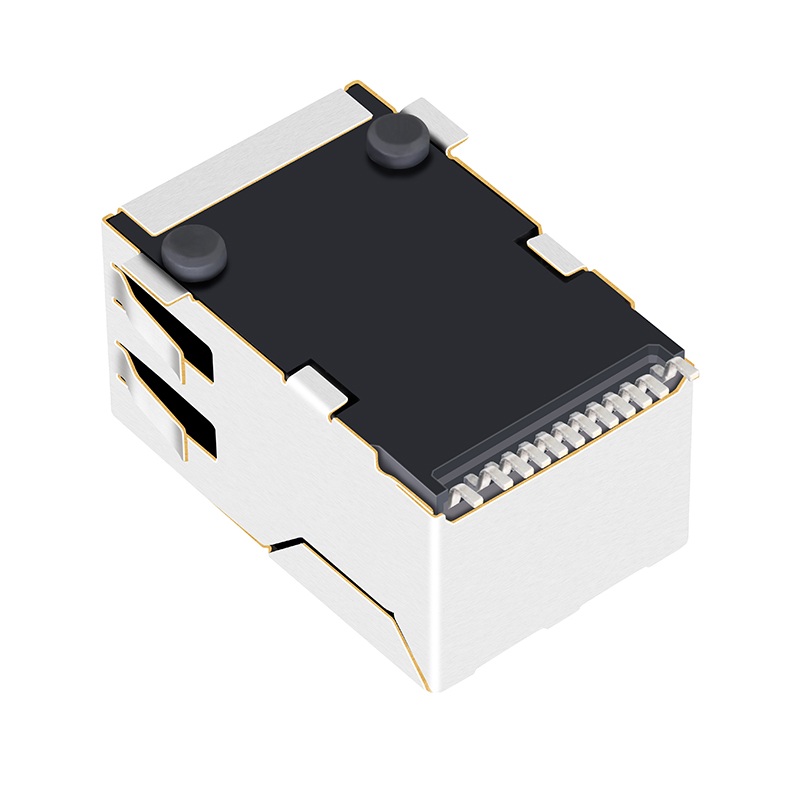

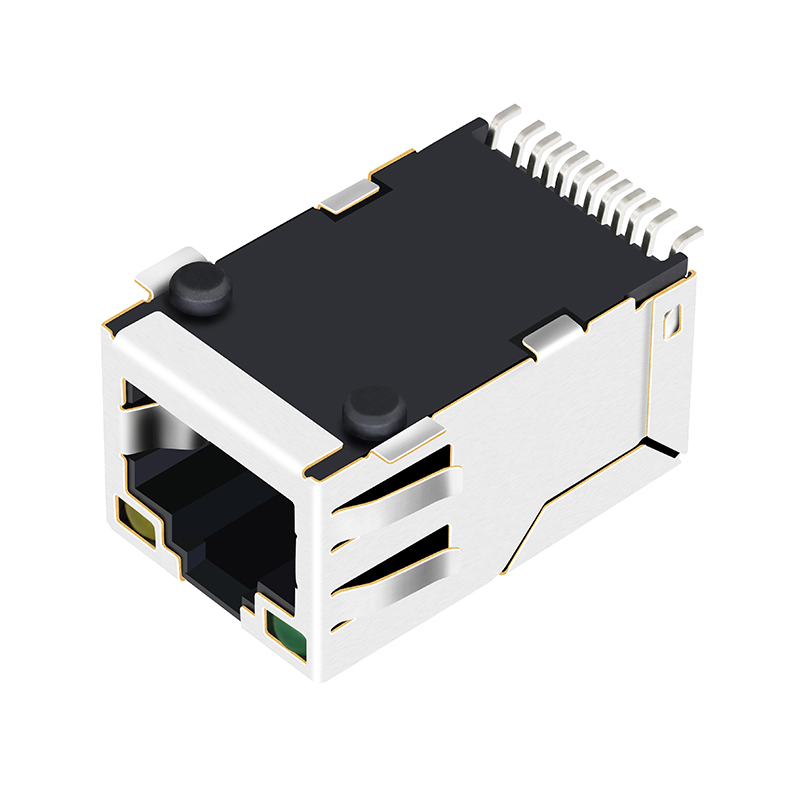

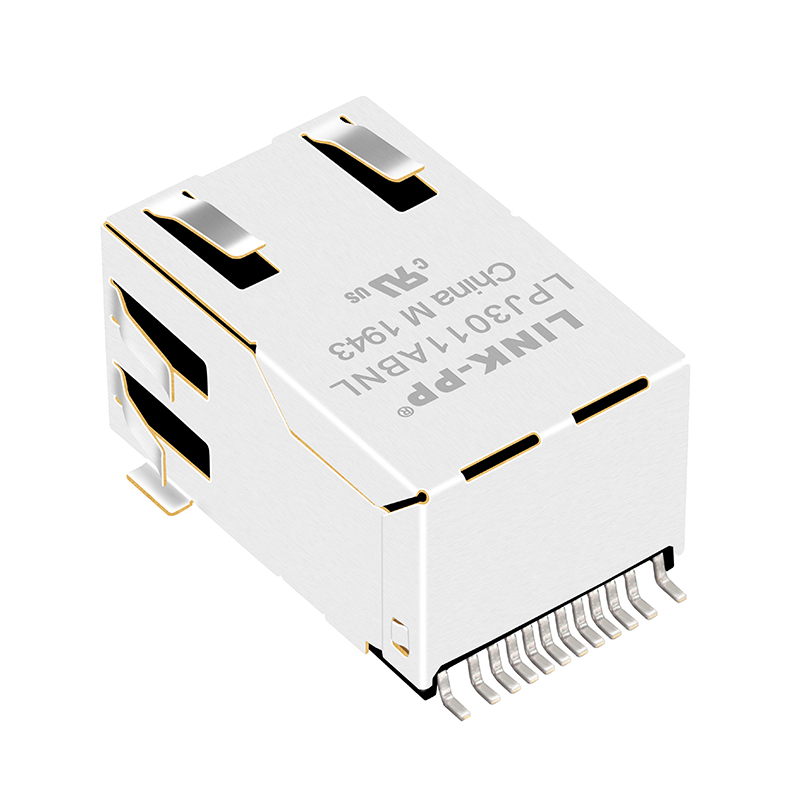

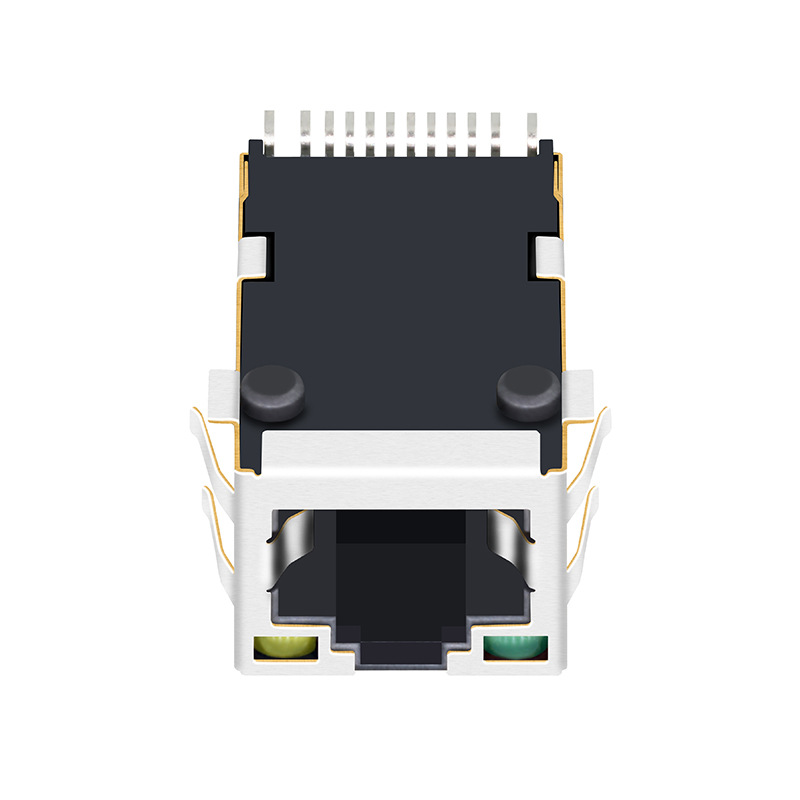

LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
1 / 5
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector
LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector

LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector

Send Inquiry

Product Description

📦 Product Description

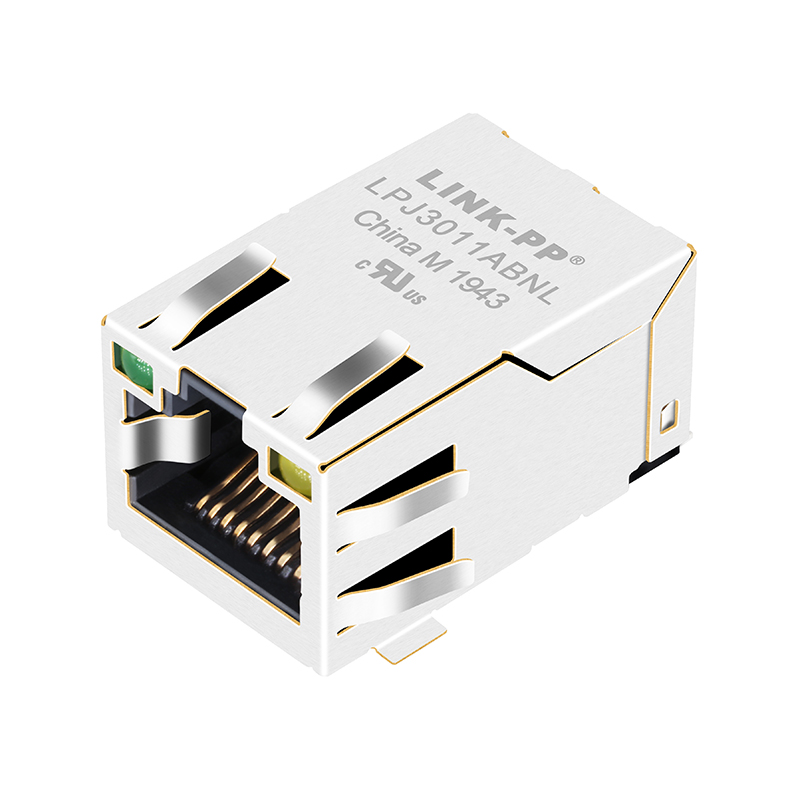

Product View 1
Product View 2
📋 Specification
Model NumberLPJ3011ABNL
Part StatusActive
Connector TypeRJ45
Applications10/100 Base-T, AutoMDIX
Mounting TypeSurface Mount
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen - Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
🚚 Packing & Delivery

Package Details: 110 pcs in 1 tray, 6 trays in 1 carton.
Carton Dimensions: 36 * 36 * 35 cm
Weight: 7.4 KGS (660 pcs) per carton.

Packing
🏭 Professional Manufacturing

A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. Our facilities utilize advanced manufacturing and testing equipment to ensure high-capacity production and professional technical support.

Production Facility 1
Production Facility 2

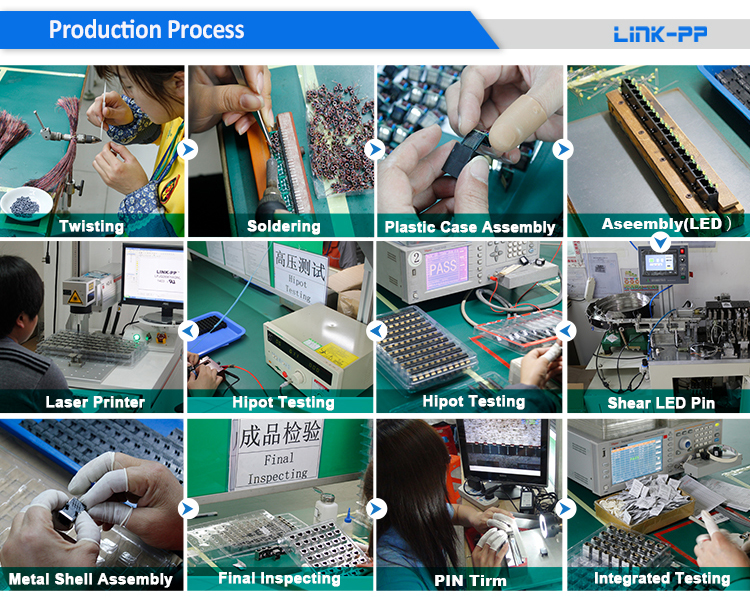

Production Facility 3
Production Facility 4
Frequently Asked Questions
Q1 What types of networking components do you provide?
We specialize in RJ45 Magnetics, Lan transformers, Modular Jacks, and RJ11 Connectors used in HUBs, routers, switches, and PC mainboards.
Q2 How is the product quality guaranteed?
We maintain strict quality control through pre-production samples before mass production and a final inspection process before every shipment.
Q3 What certifications do your products hold?
Our products are certified by ISO9001:2008, UL, REACH, CE, and SGS, ensuring compliance with international standards for safety and quality.
Q4 What is your manufacturing capacity?
With advanced manufacturing facilities and a large professional staff, we have a productive capacity of approximately 30,000K units per week, allowing for short delivery times.
Q5 What delivery terms are accepted?
We support a wide range of delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery to meet different logistical requirements.
Q6 What applications are these connectors suitable for?
These components are widely used in networking and communication equipment such as routers, IP phones, xDSL modems, SDH, PDH, and PC mainboards.
