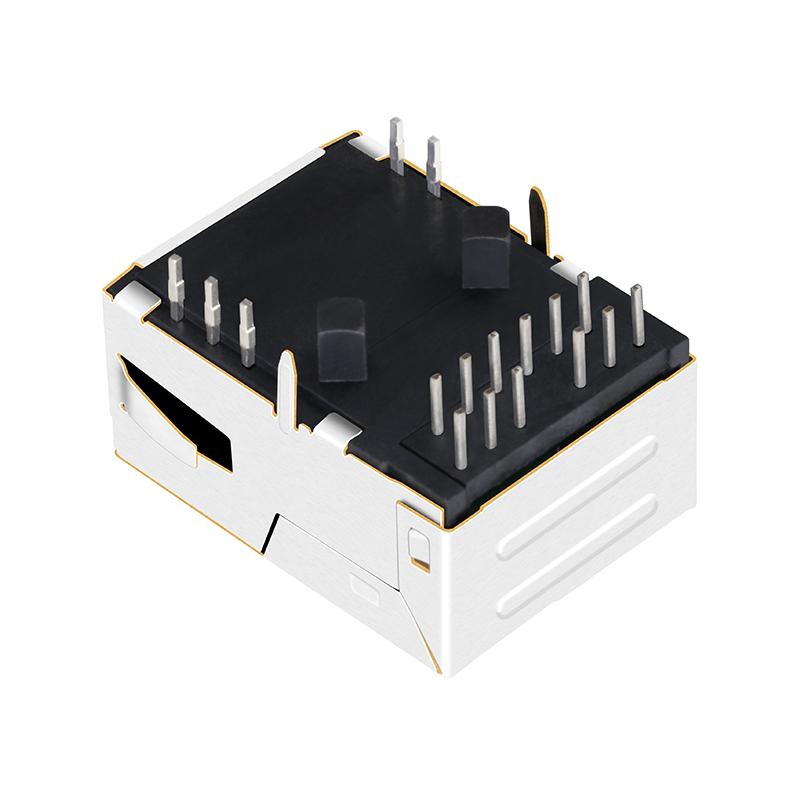

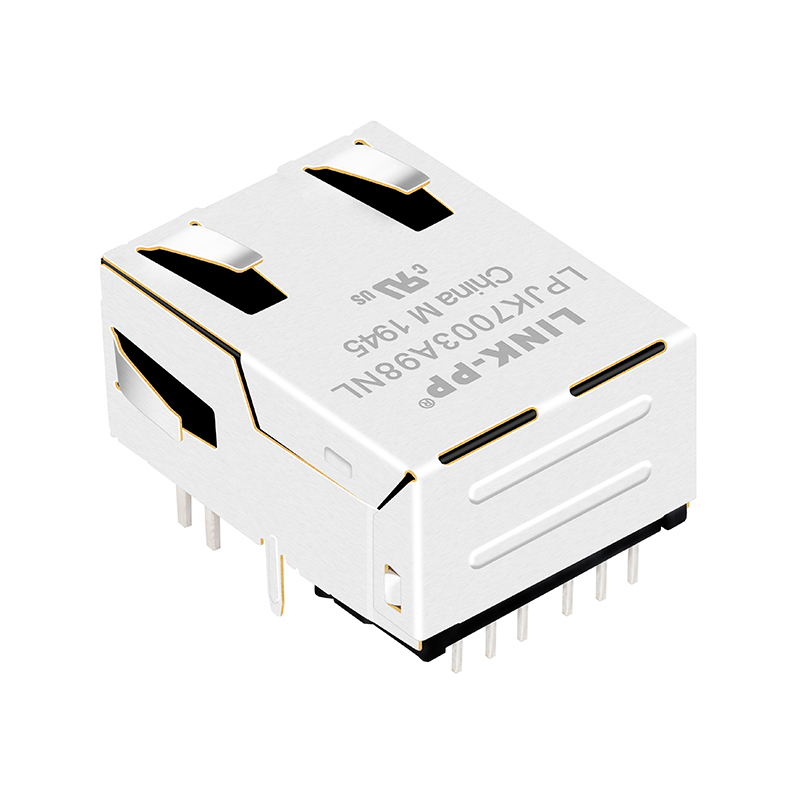

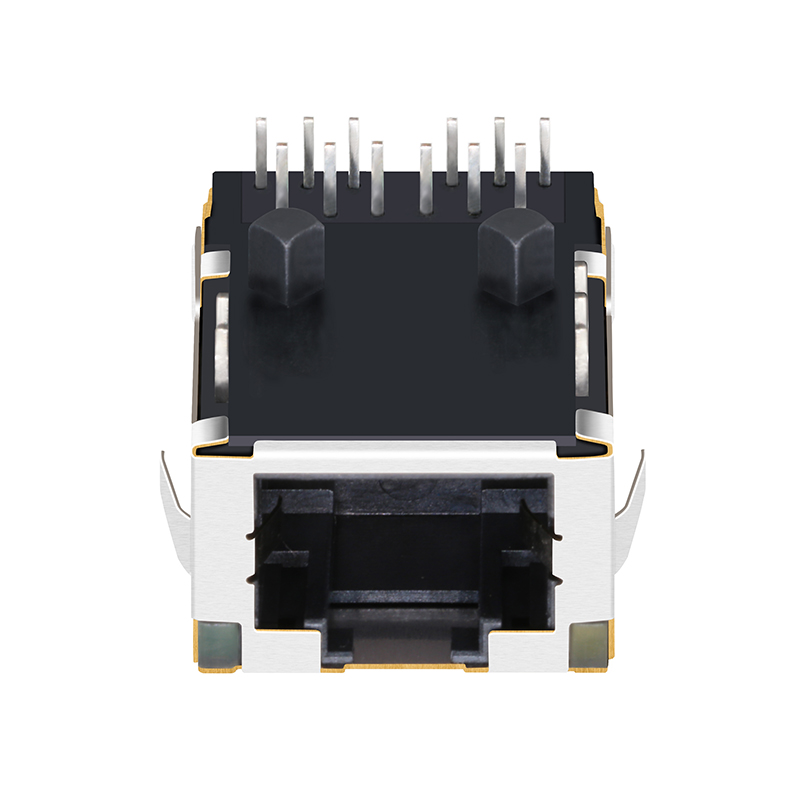

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
1 / 5
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Send Inquiry

Product Description

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Ethernet Connectors Overview
⚙️ Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

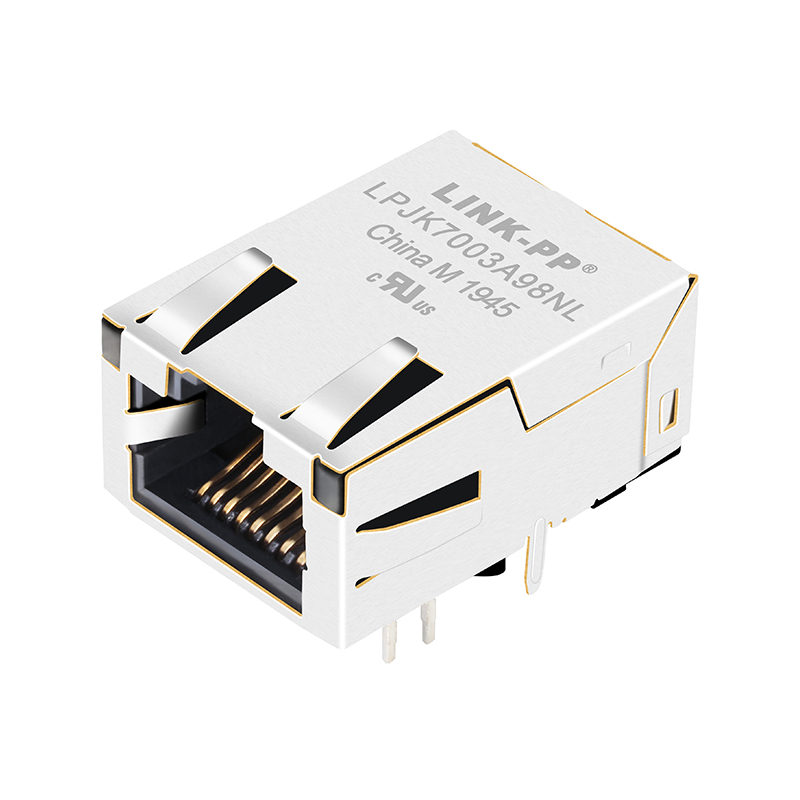

Product Angle View 1

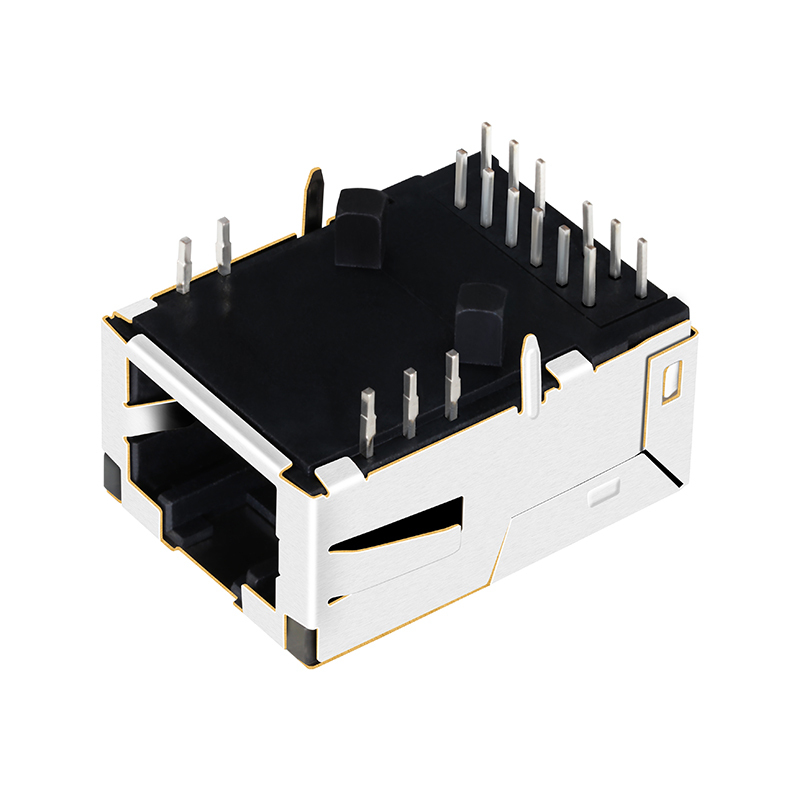

Product Angle View 2
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
📋 Product Options & Specifications
Product Categories Grid
Technical Specifications Sheet 1
Technical Specifications Sheet 2
Mechanical Layout
Electrical Schematic Diagram
Soldering Temperature Profile
Material Declaration and Packaging
🏭 Production Facility & Operations
Manufacturing Center
Assembly Process
❓ Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered.
Q What is your delivery time?
We have items ready to ship for stock products, and it takes 15-30 days for mass production orders.
Q What after-sales service do you offer?
We provide a one-year warranty period and offer online technical support to assist you with any inquiries.
Q Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM customizations. Please send us your detailed requirements to start the discussion.
Q What are your production advantages?
We have over 19 years of dedicated manufacturing experience, delivering high-performance components and reliable partner integrations globally.
