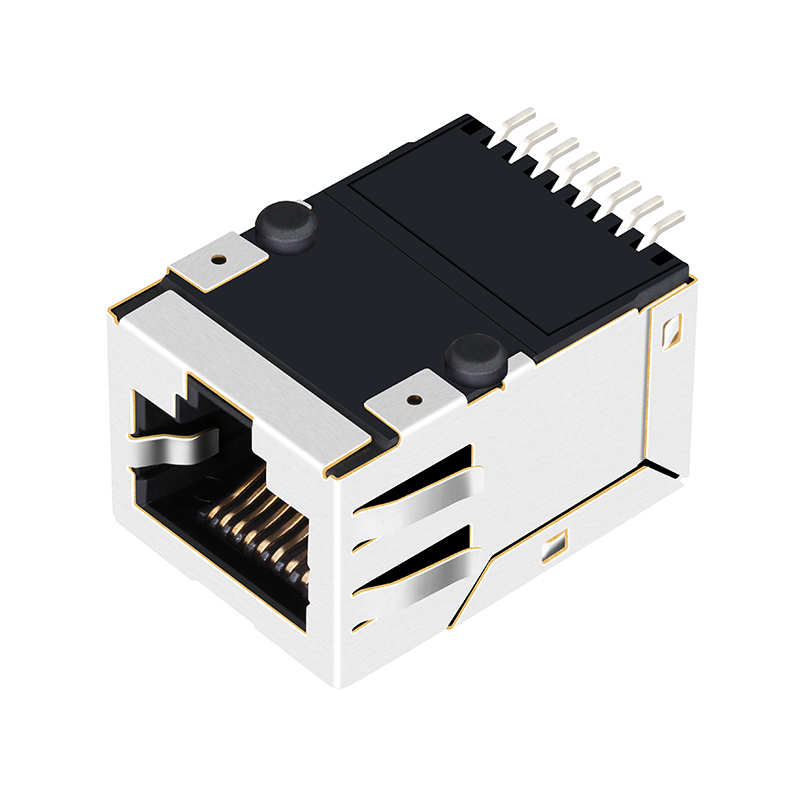

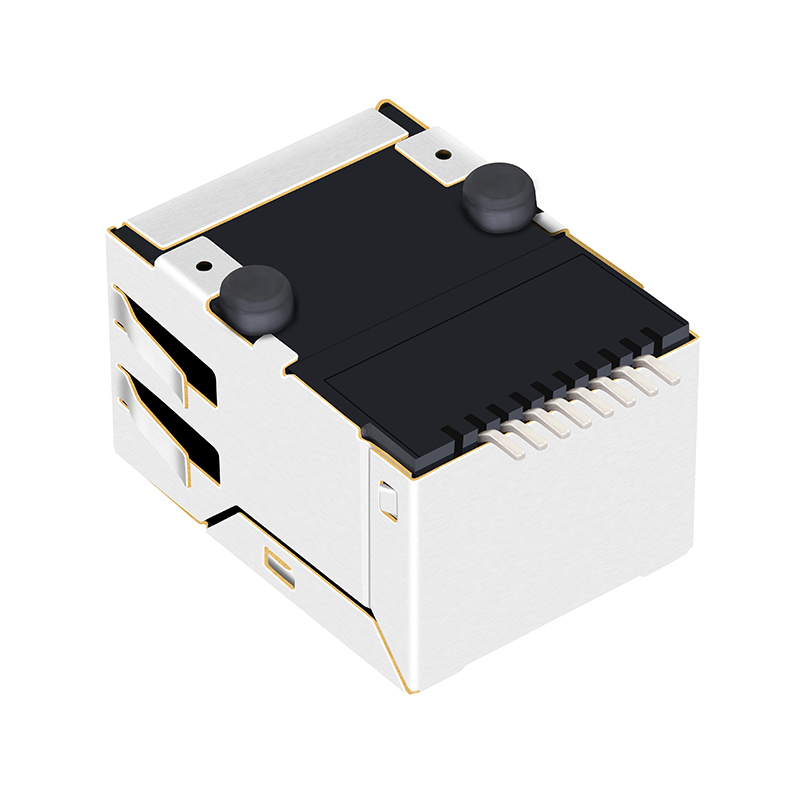

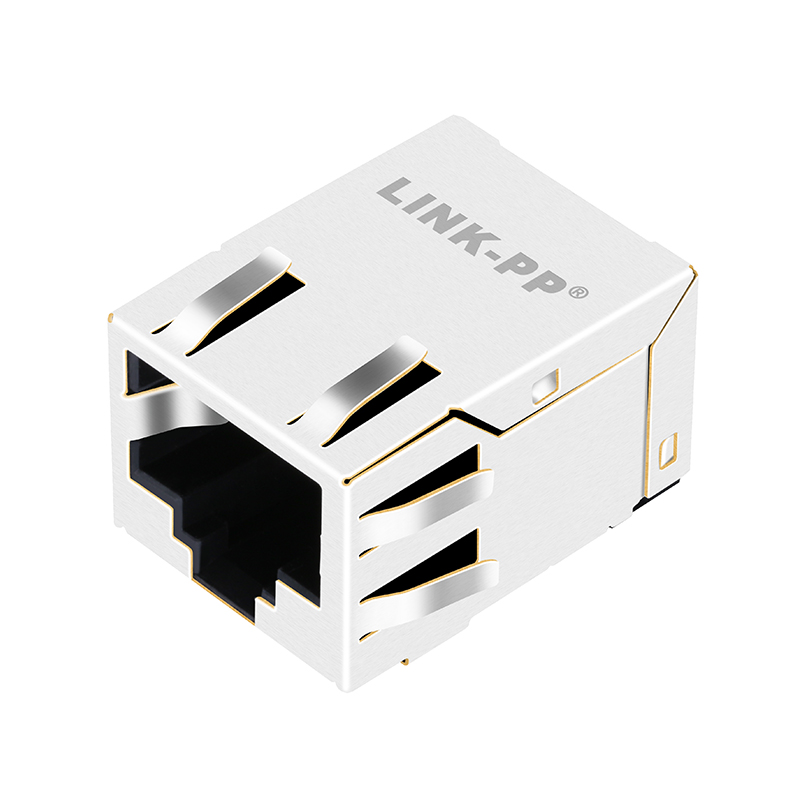

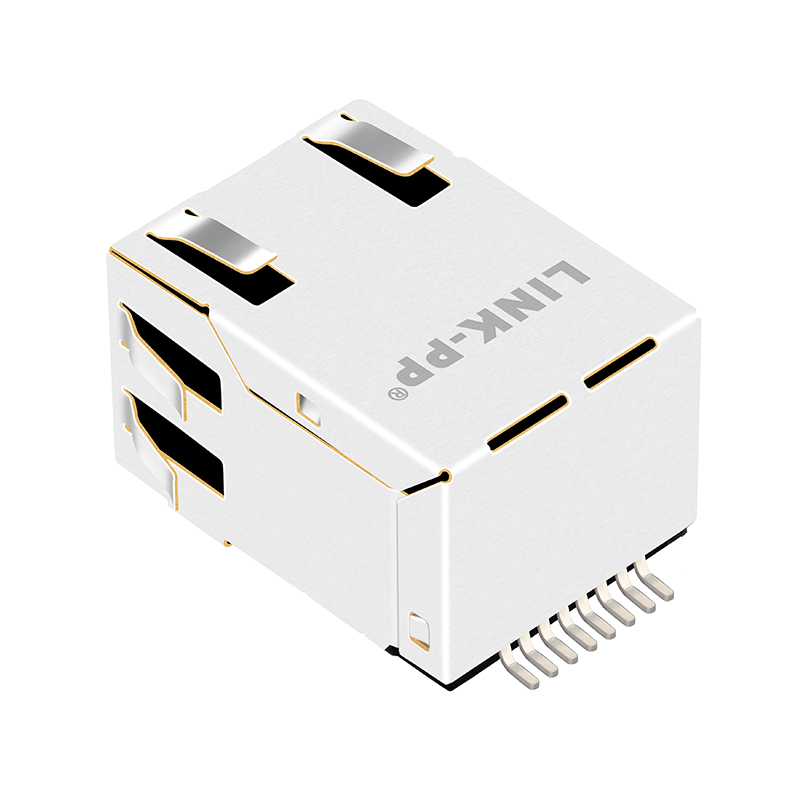

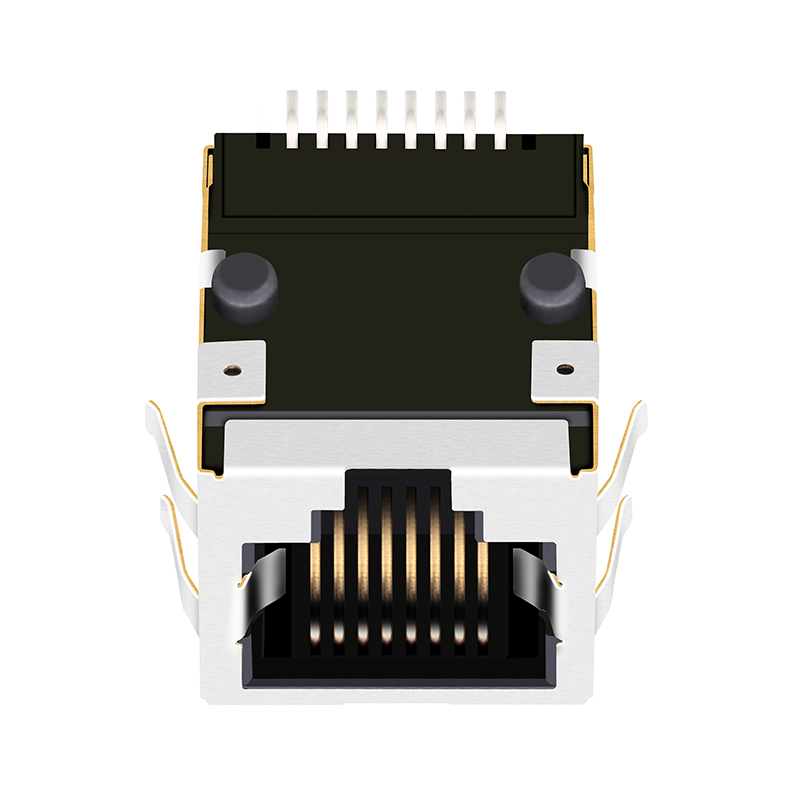

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
| Part Number |
0855135109 |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH LEDS/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Preferred Supplier Of TI Samsung Cisco Siemens …
Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
Frequently Asked Questions
What are the primary applications of the 0855135109 RJ45 connector?
The 0855135109 RJ45 modular jack is designed for LAN applications, specifically Ethernet networks that do not require PoE (Power over Ethernet).
What transmission speeds does this connector support?
This modular jack supports transmission speeds of 10/100/1000 BASE-T, making it compatible with Gigabit Ethernet configurations.
What is the operating temperature range for this modular jack?
The standard operating temperature ranges from 0 to 70°C, with options available to support extended temperatures from -40 to 85°C.
Does this connector come with LED indicators?
Yes, it is available in options both with LEDs and without LEDs, depending on your system design requirements.
Is the 0855135109 connector RoHS compliant?
Yes, the connector is RoHS compliant, conforming to RoHS-5 specifications with lead-in-solder exemption.
What are the contact mating area plating options?
The contact mating area is plated with gold, available in thicknesses of 6u", 15u", or 30u" to ensure robust connectivity and anti-corrosion.
