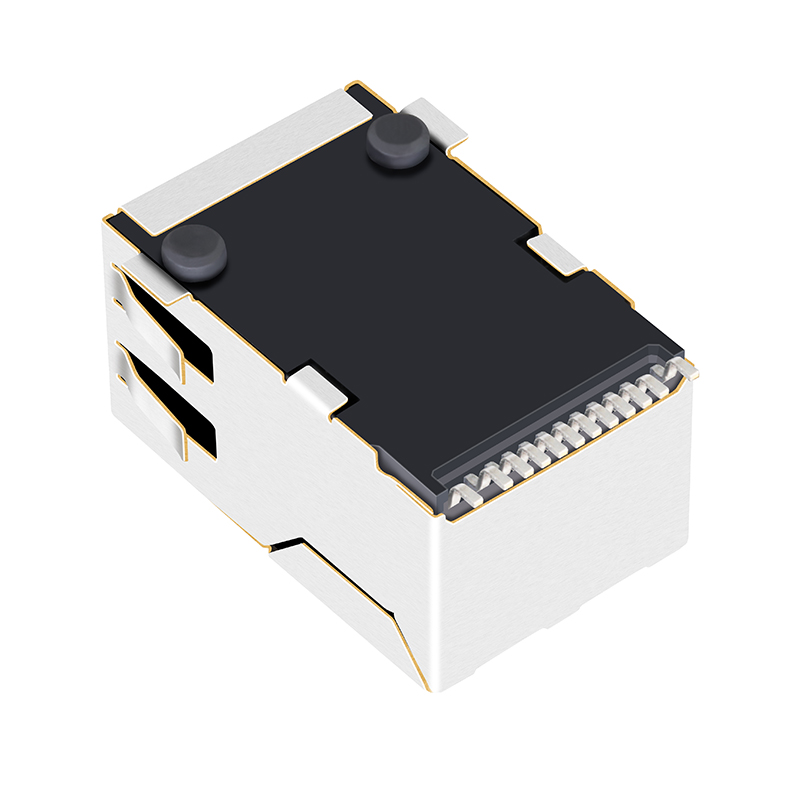

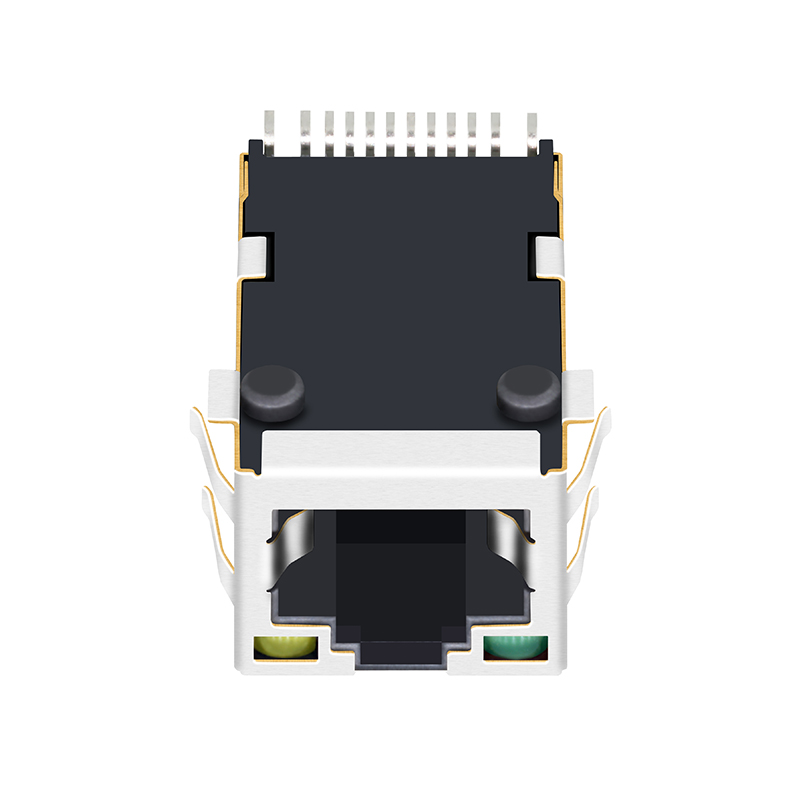

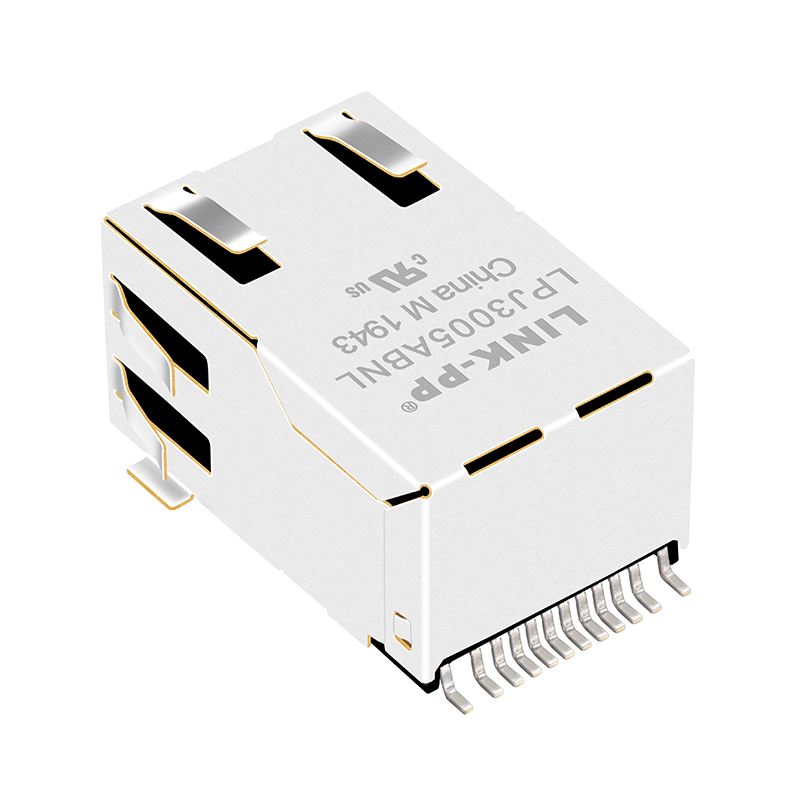

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Product Description

Product Categories Overview
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Manufacturer Part Number LPJ3005ABNL
Cross Part Number JX30-0005NL 74980111211 J3011G21DNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

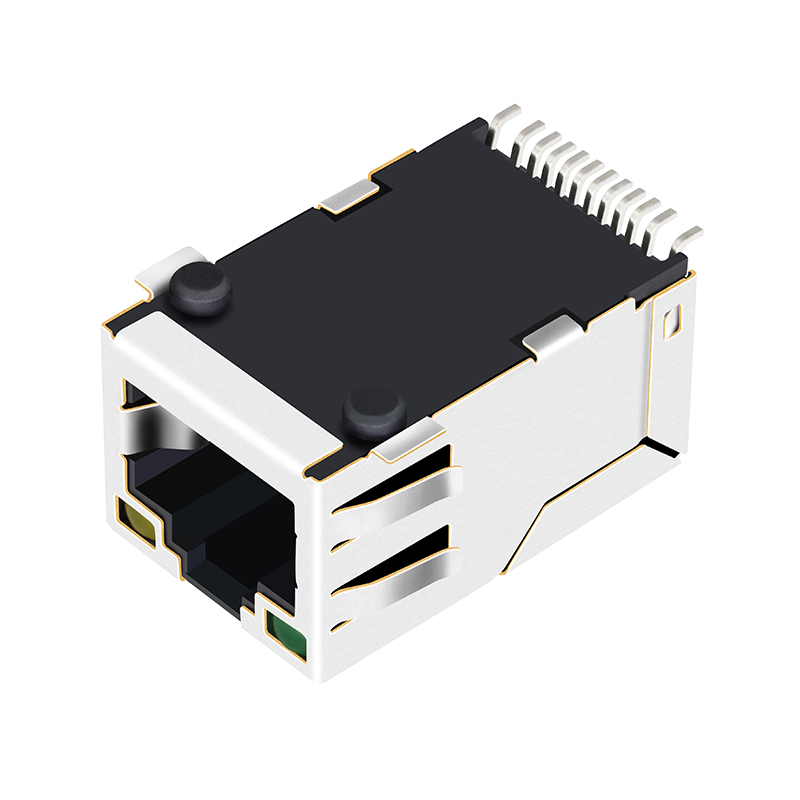

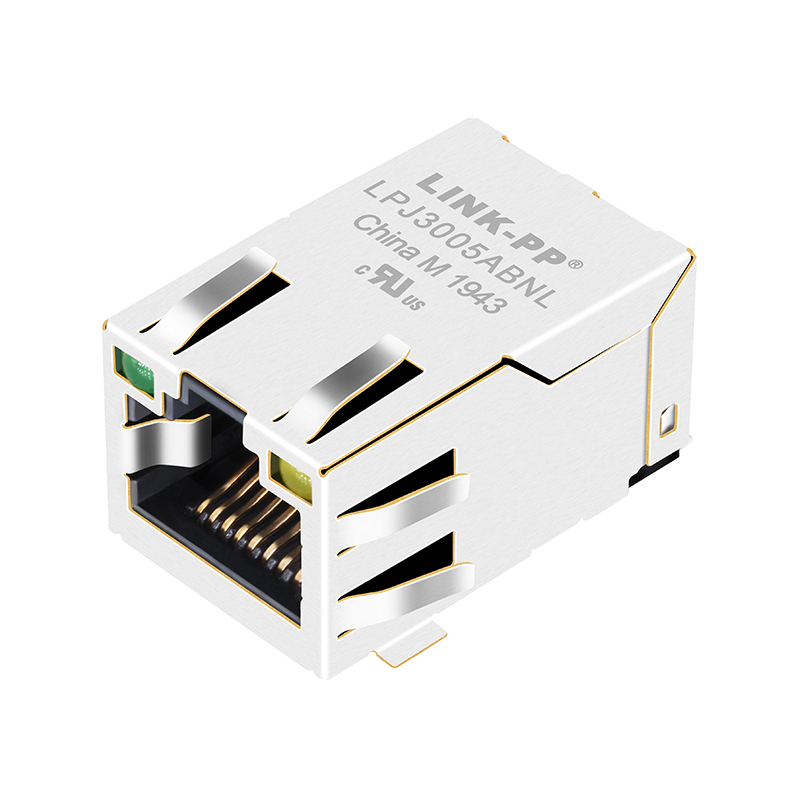

RJ45 Front View RJ45 Back View
RJ45 Dimension 1 RJ45 Dimension 2 RJ45 Dimension 3 RJ45 Dimension 4
