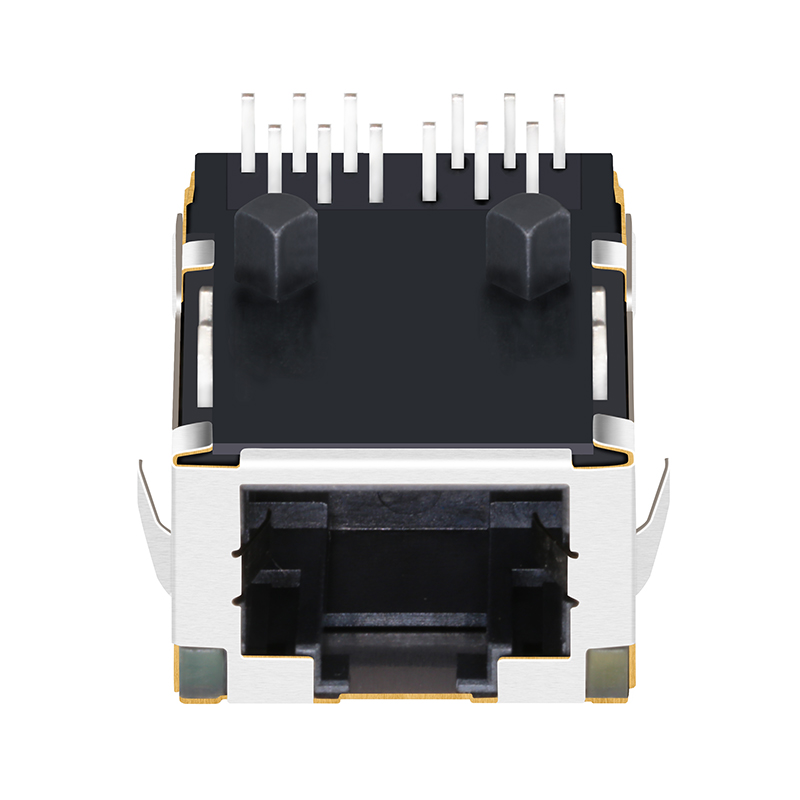

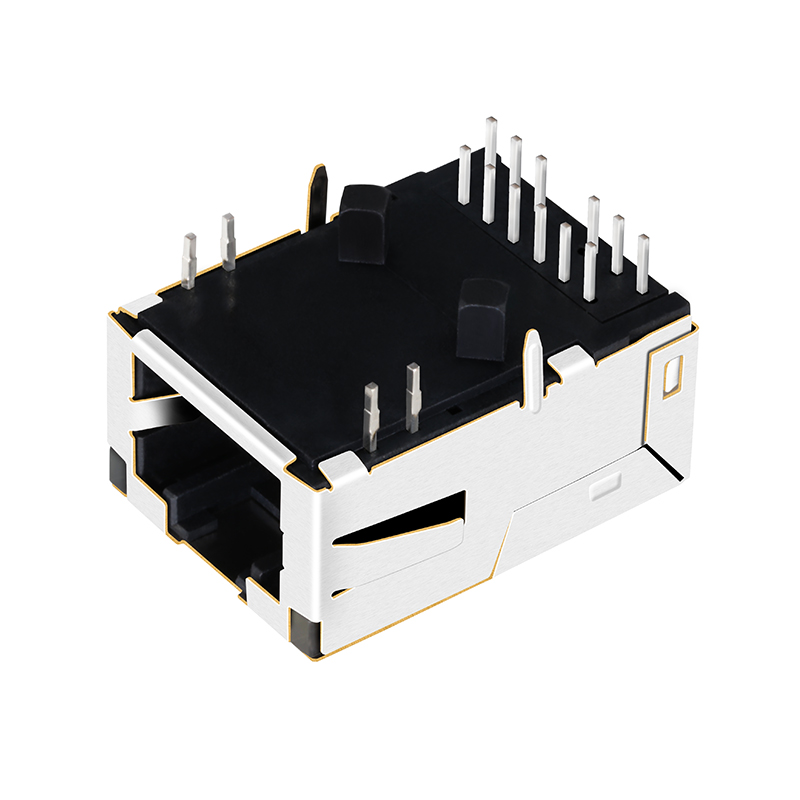

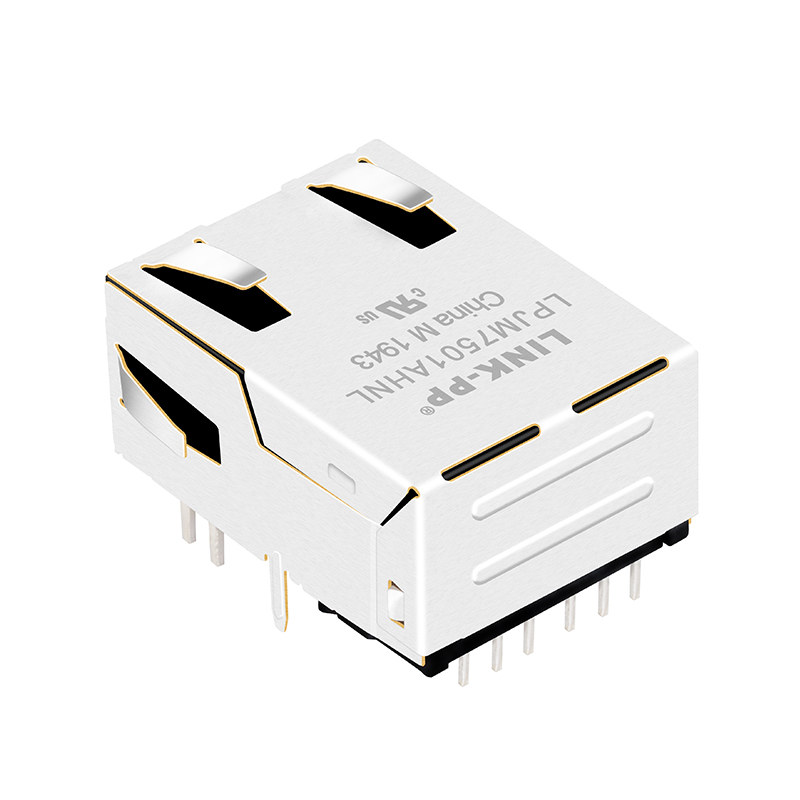

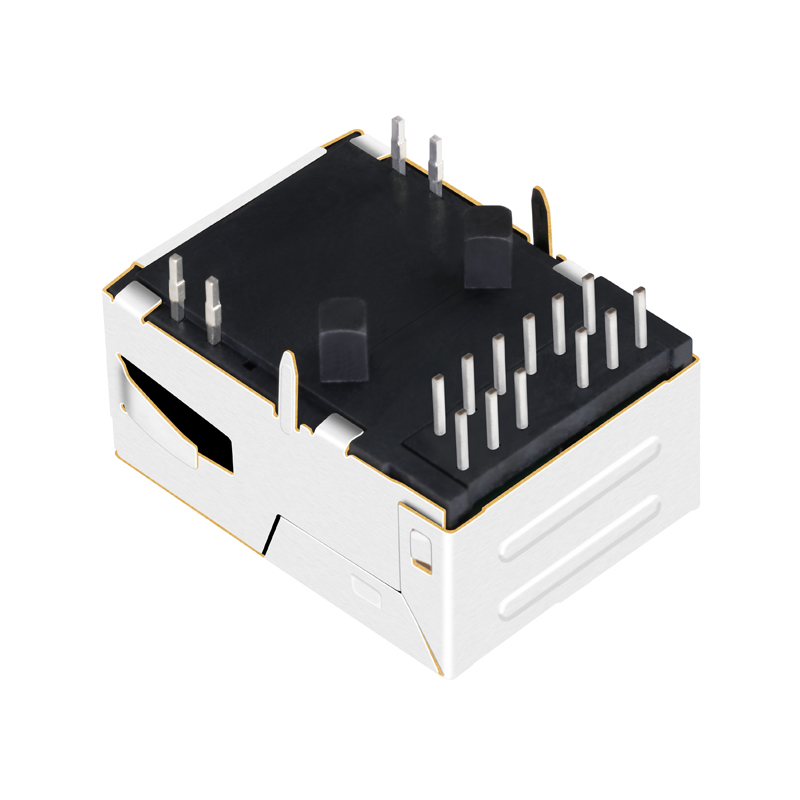

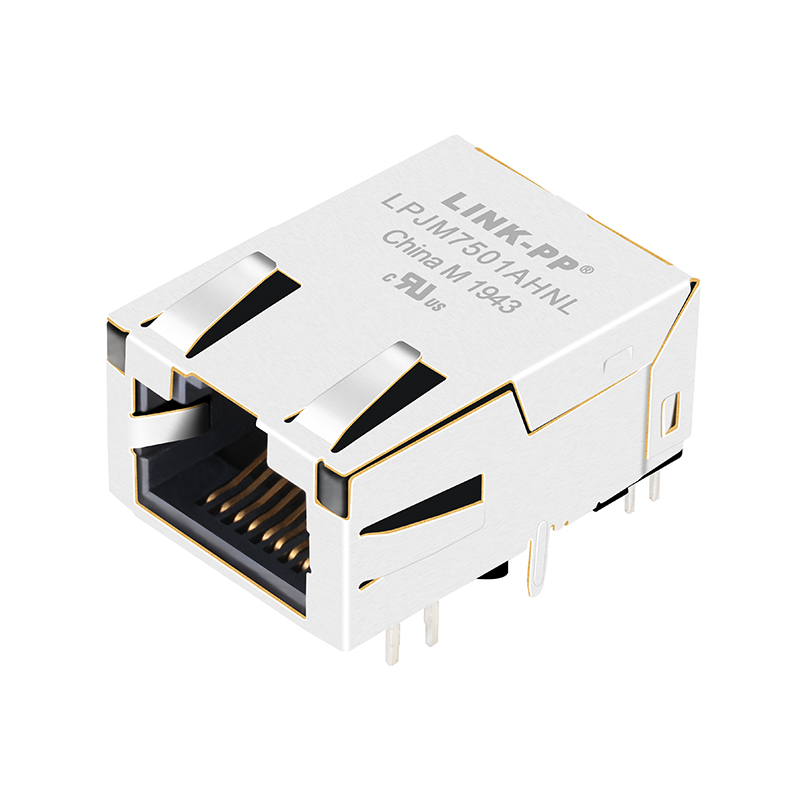

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector

Product Description

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJM7501AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 5G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Diagram
Discover More Products Below
Related Connectors Grid
Connector Layout Chart
Process Showcase 1
Process Showcase 2
Process Showcase 3
Process Showcase 4
Process Showcase 5
Process Showcase 6
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global supplier of Ethernet RJ45 connectors and LAN transformers.
Facilities Showcase 1
Facilities Showcase 2
Facilities Showcase 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We offer a one-year guarantee period along with technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your requirements.
What is your advantage?
We possess 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
