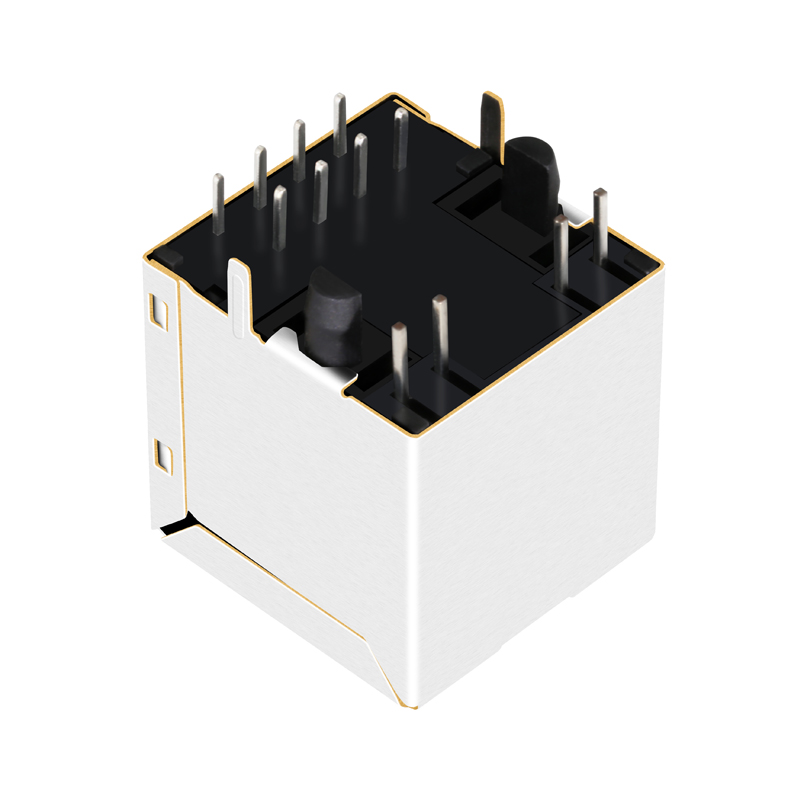

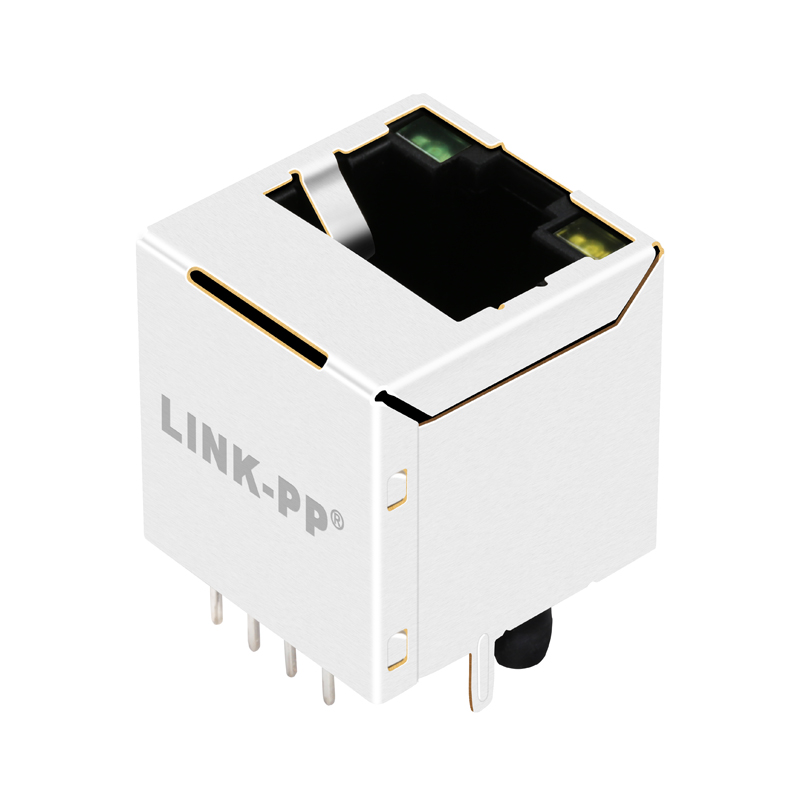

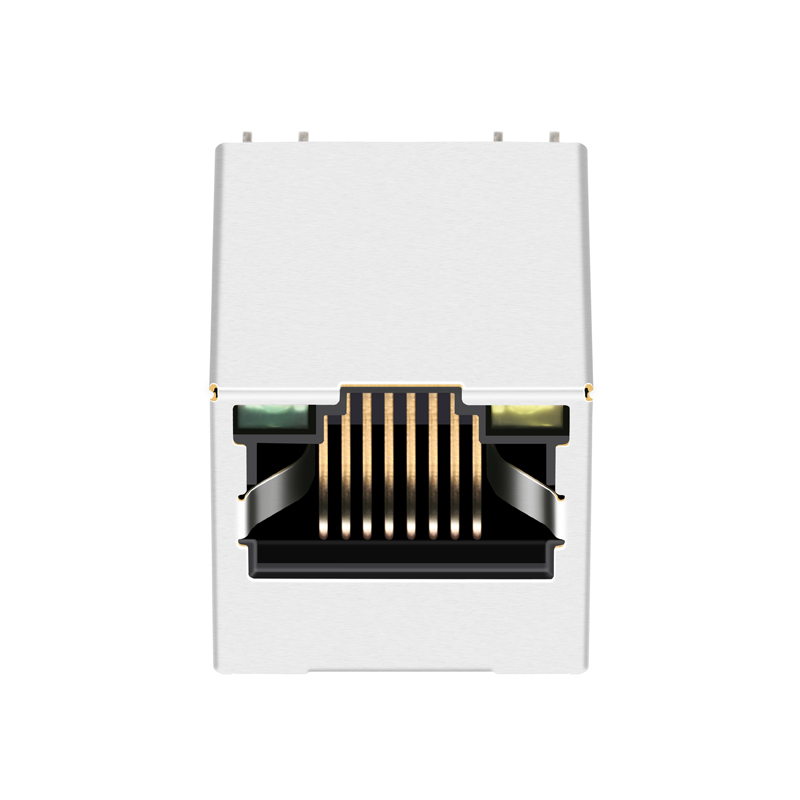

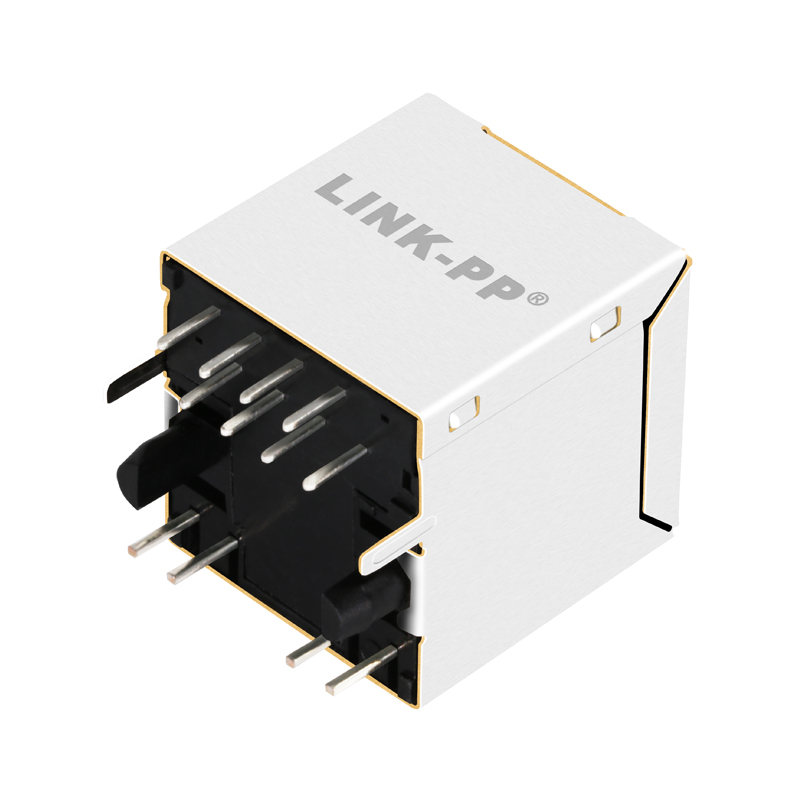

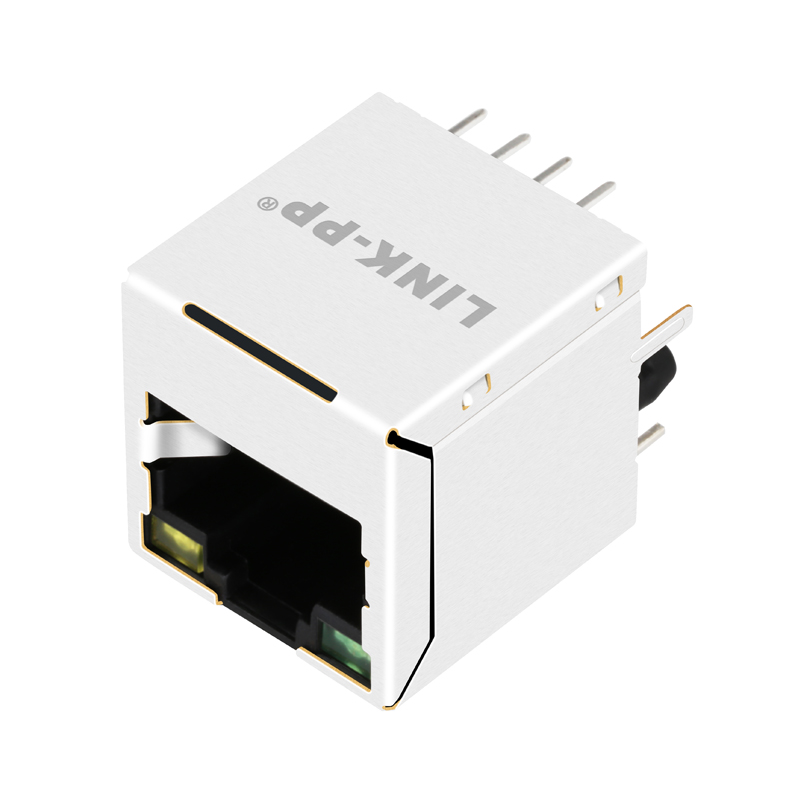

| Item | RJ45 Female Connector |
| Part Number | 1840469-4 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples to test quality, but the shipping fee needs to be paid by the customer.
Products currently in stock are ready to ship immediately. For mass production orders, the standard lead time is 15-30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, we accept OEM/ODM custom inquiries. Please send us your specifications to start a detailed discussion.
We possess over 19 years of professional manufacturing experience in telecom components and have been a trusted production partner for leading global enterprises for many years.
