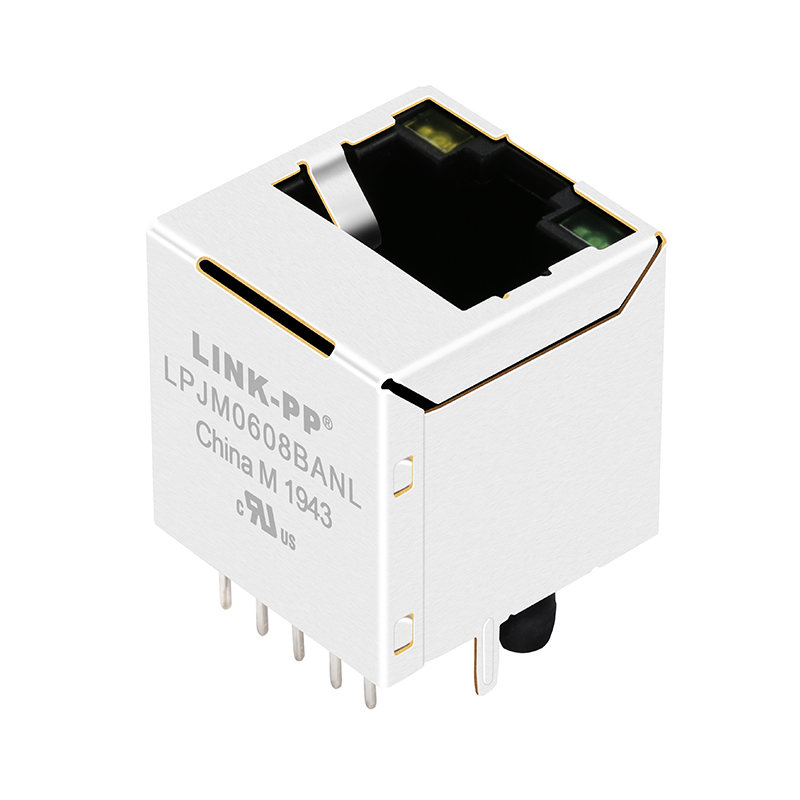

RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
1 / 5
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights
RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights

RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Famale Connector With Led Lights

Send Inquiry

Product Description

RJ-45 Network Sockets Ethernet 1 Port 2.5G Base-t Vertical RJ45 Female Connector With Led Lights
RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number LPJM0608BANL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 2.5g Base-T
Latch Up
Cores per Port 8
Orientation 180° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Details 1

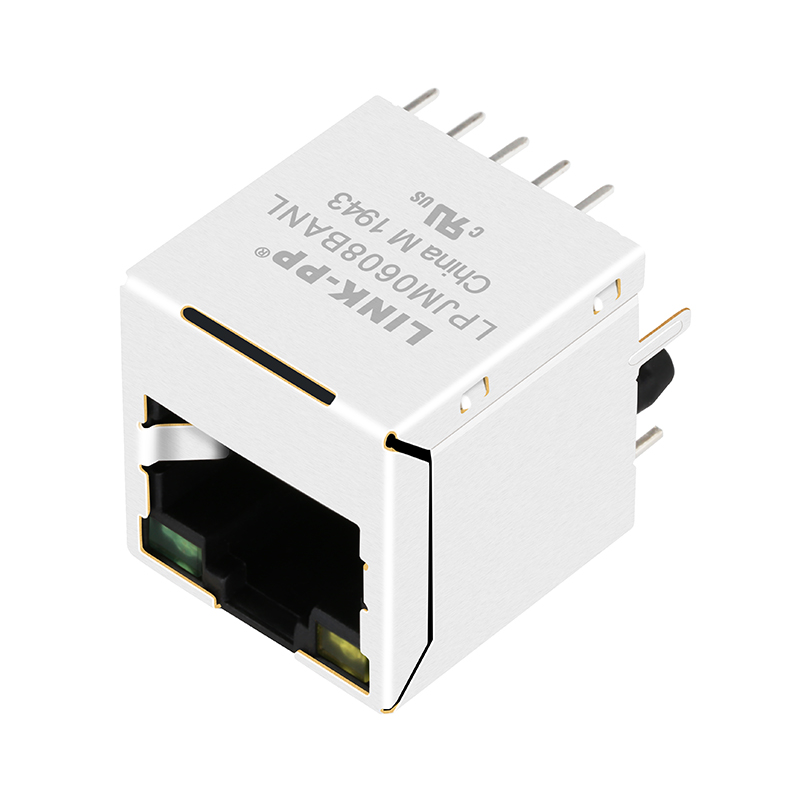

RJ45 Details 2
RJ45 Dimension 1
RJ45 Dimension 2
RJ45 Schematic
RJ45 PCB Layout
Product Categories
Manufacturing 1
Manufacturing 2
Manufacturing 3
Testing 1
Testing 2
Testing 3
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. A global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Office
Production Line
FAQ
1 Are you factory or trading company?
A specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, LAN transformer, RJ11 connector and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3 What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5 Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6 What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
