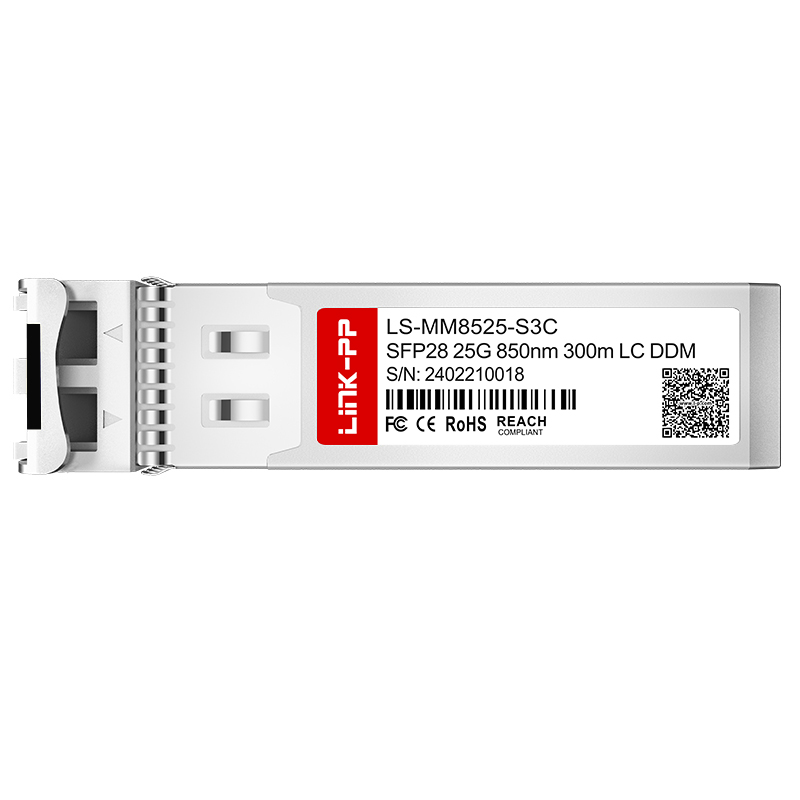

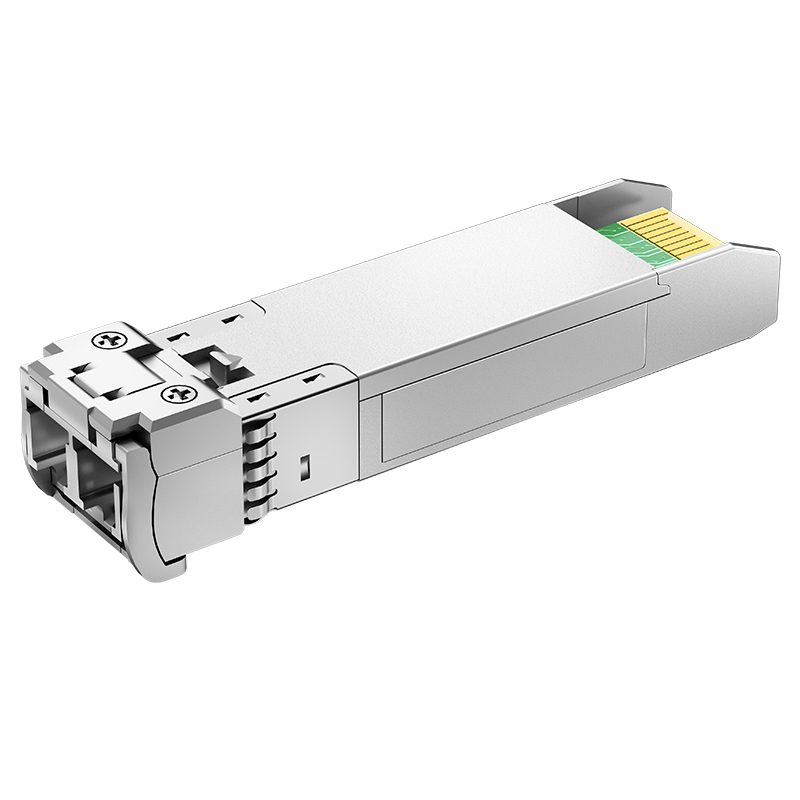

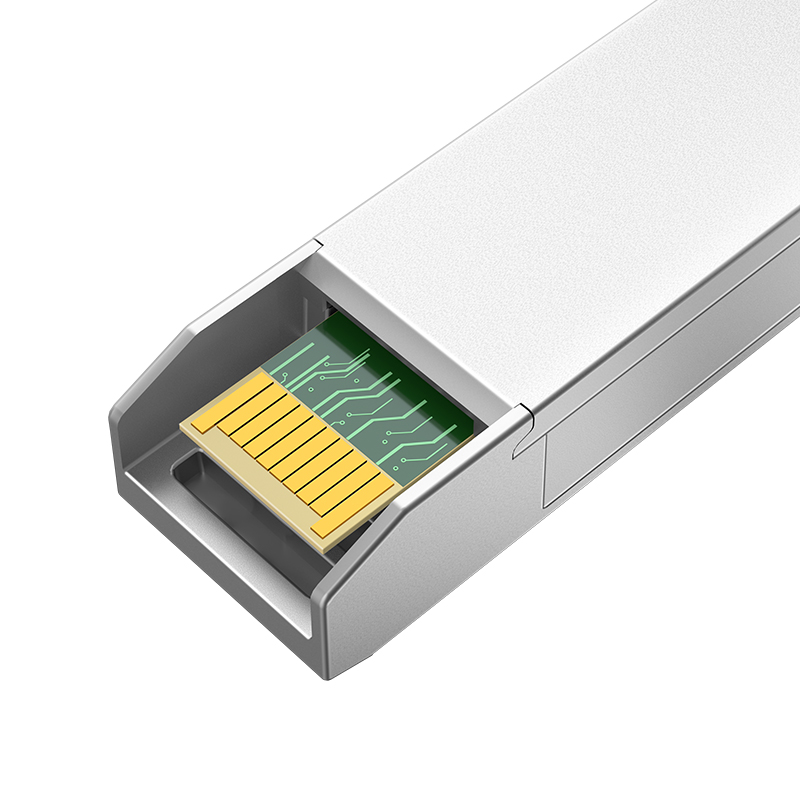

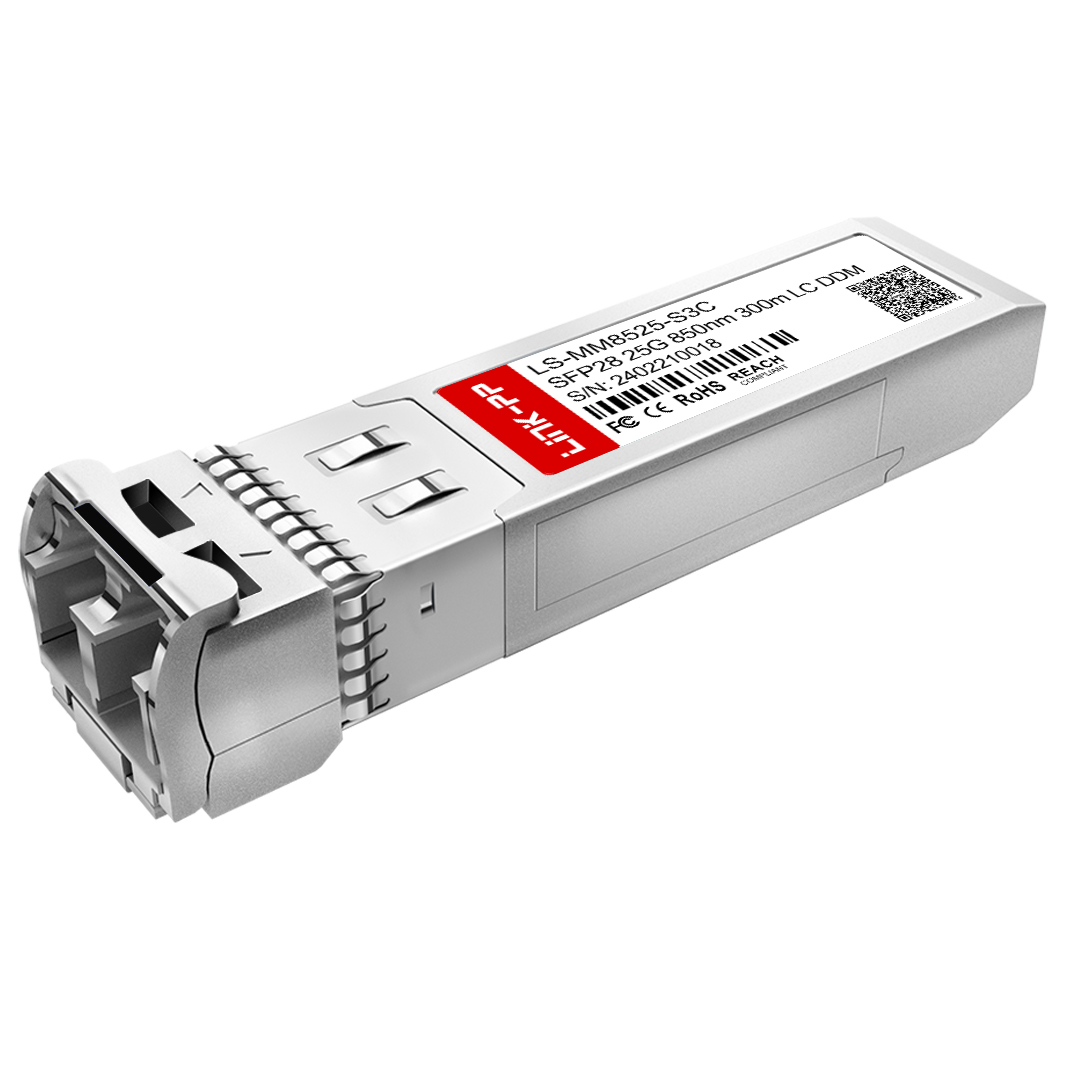

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
1 / 5
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Send Inquiry

Product Description

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-MM8525-S3C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-6dBm
Receiver Overload 2.4dBm
Power Consumption ≤1W
Extinction Ratio 2dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty 5 Years
Sample Available
