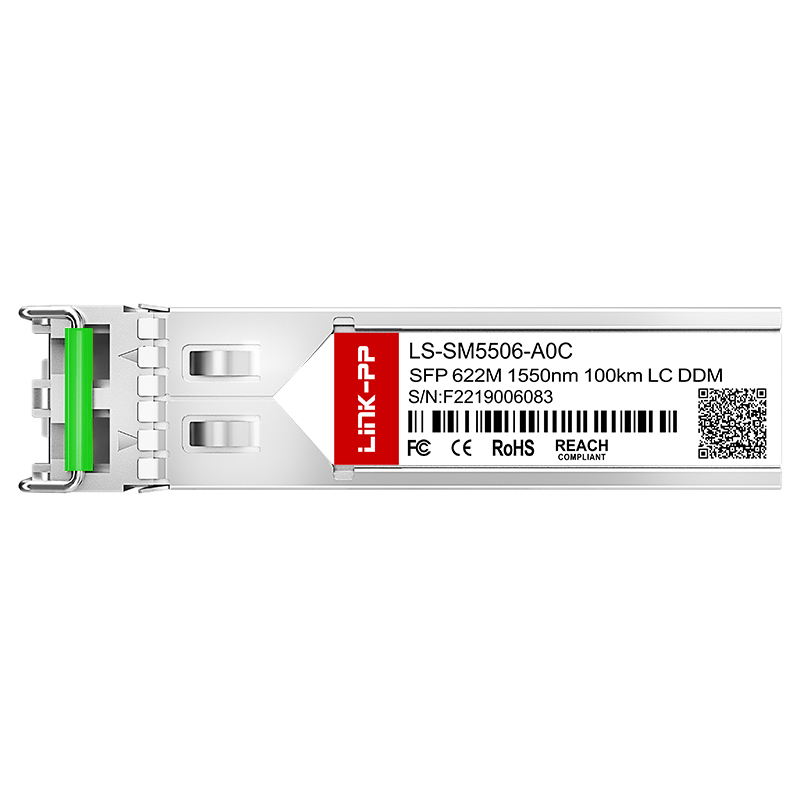

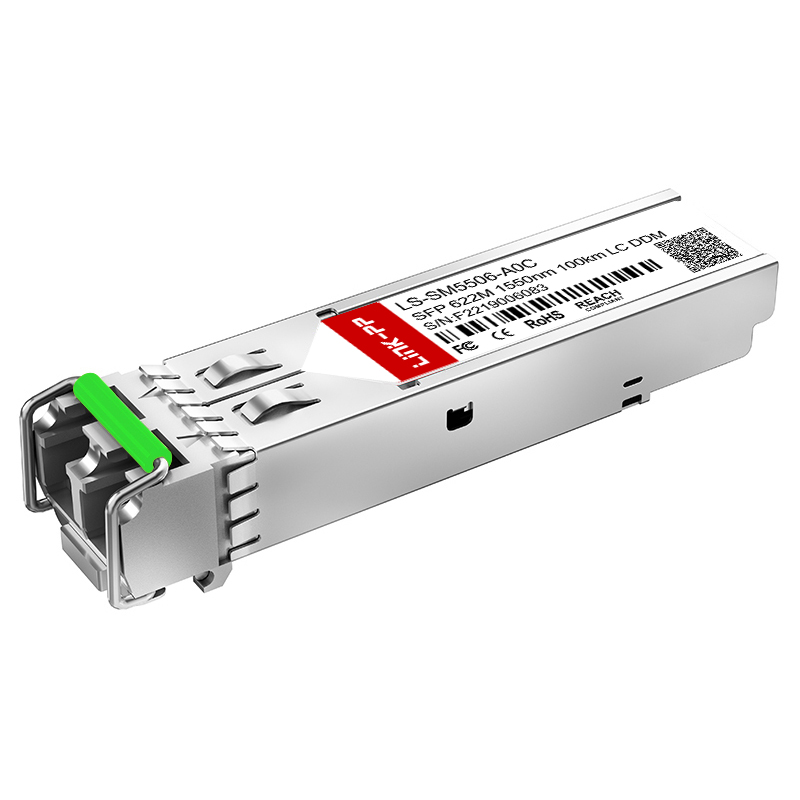

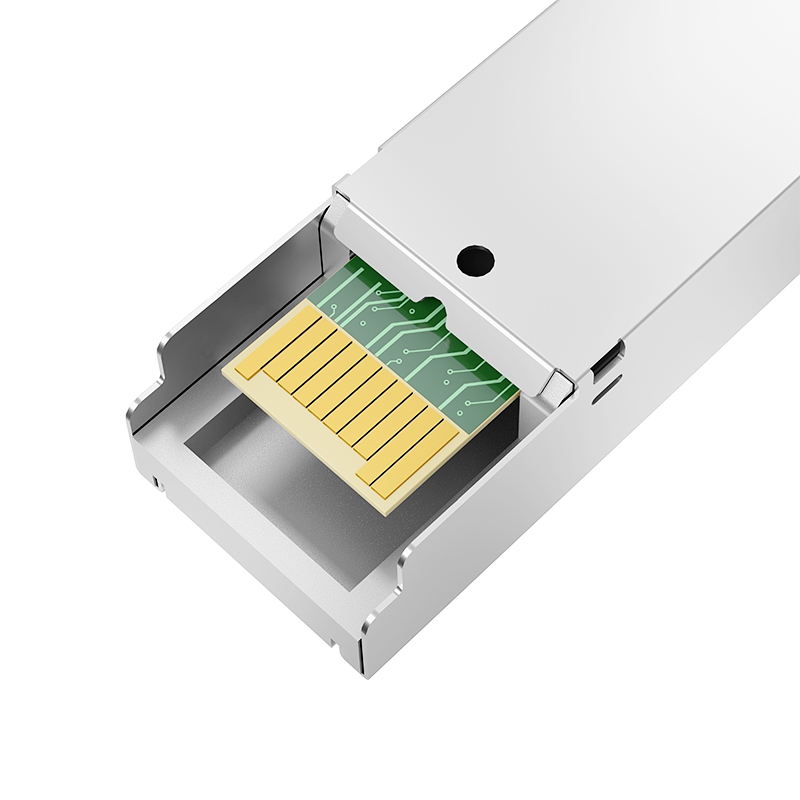

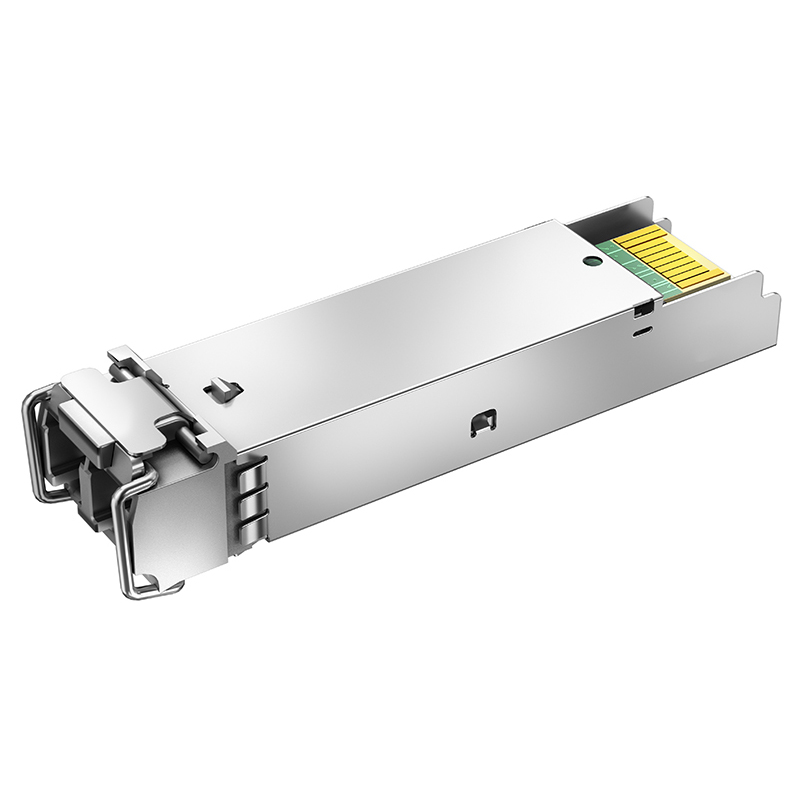

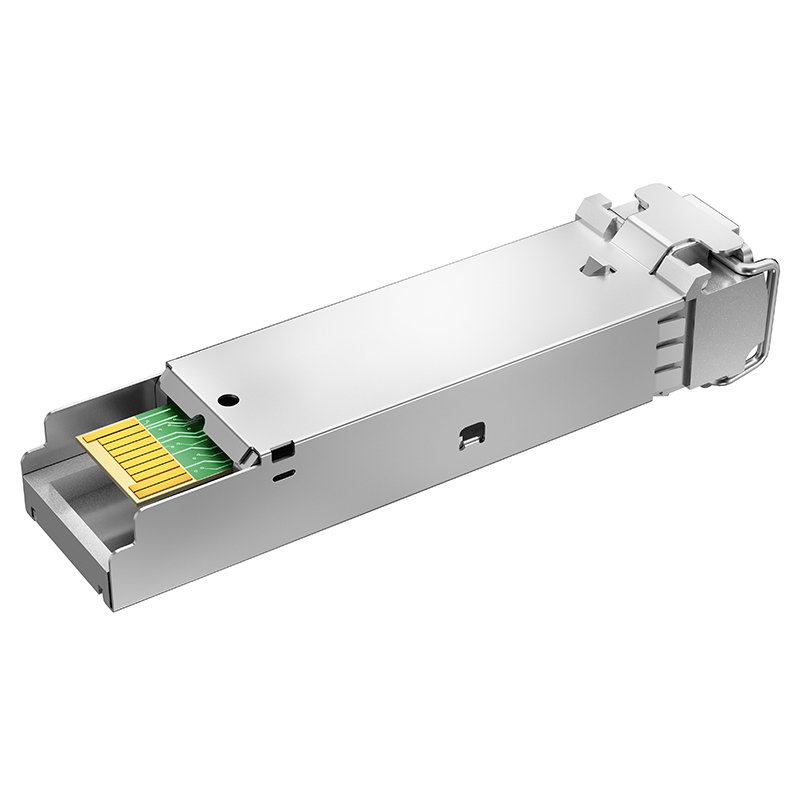

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
| Part No. |
LS-SM5506-A0C |
| Form Factor |
SFP |
| Max Data Rate |
622Mbps |
| Wavelength |
1550nm |
| Max Cable Distance |
100km |
| Connector |
Duplex LC |
| Media |
SMF |
| Transmitter Type |
DFB |
| Receiver Type |
PIN |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTIONS
✦
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
✦
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 622M SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM8506-S5C |
622Mbps |
850nm |
500m |
Multi-mode |
Yes |
| LS-SM3106-S5C |
622Mbps |
1310nm |
500m |
Single Mode |
Yes |
| LS-SM3106-02C |
622Mbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-MM3106-02C |
622Mbps |
1310nm |
2km |
Multi-mode |
Yes |
| LS-SM3106-20C |
622Mbps |
1310nm |
20km |
Single Mode |
Yes |
| LS-SM3106-40C |
622Mbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM5506-80C |
622Mbps |
1550nm |
80km |
Single Mode |
Yes |
| LS-SM5506-A0C |
622Mbps |
1550nm |
100km |
Single Mode |
Yes |
| LS-SM5506-A2C |
622Mbps |
1550nm |
120km |
Single Mode |
Yes |
Applications & Solutions
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Why Choose Us
About Our Capabilities
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. We currently have abundant production capacity of 3000K per month, allowing us to deliver products within a short time.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
What is your delivery time?
We have items ready to ship for stock orders, and mass production typically takes 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details of your project.
What is your advantage?
We have 19 years of production experience and have partnered with major global enterprises for many years.
